Datasheet OP27 (Analog Devices)
| 制造商 | Analog Devices |
| 描述 | Low Noise, Precision Operational Amplifier |
| 页数 / 页 | 22 / 1 — FEATURES. PIN CONFIGURATIONS. Low noise: 80 nV p-p (0.1 Hz to 10 Hz), 3 … |
| 修订版 | H |
| 文件格式/大小 | PDF / 445 Kb |
| 文件语言 | 英语 |
FEATURES. PIN CONFIGURATIONS. Low noise: 80 nV p-p (0.1 Hz to 10 Hz), 3 nV/√Hz. BAL. Low drift: 0.2 µV/°C. BAL 1
该数据表的模型线
文件文字版本

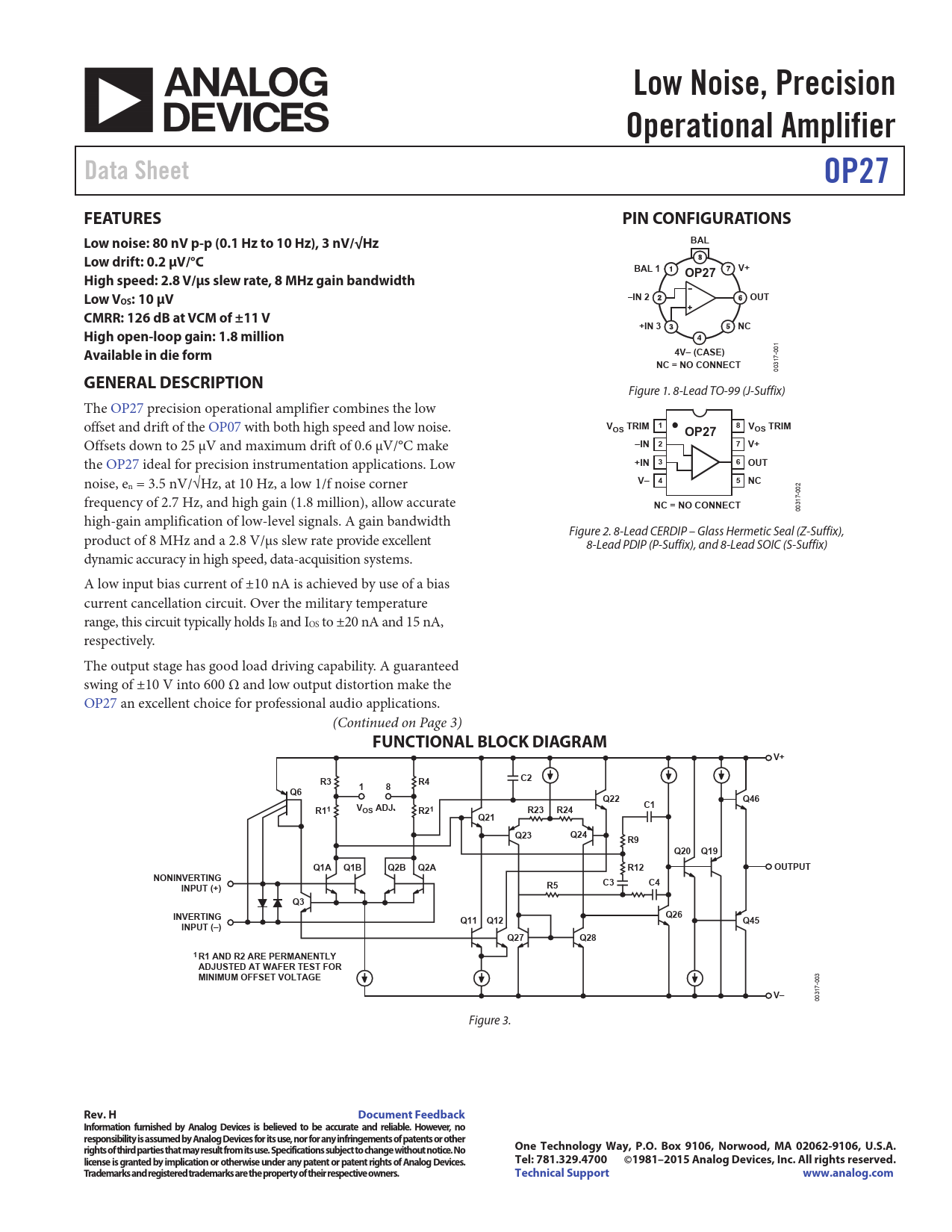

Low Noise, Precision Operational Amplifier Data Sheet OP27
FEATURES PIN CONFIGURATIONS Low noise: 80 nV p-p (0.1 Hz to 10 Hz), 3 nV/√Hz BAL Low drift: 0.2 µV/°C BAL 1 V+ High speed: 2.8 V/µs slew rate, 8 MHz gain bandwidth OP27 Low VOS: 10 µV –IN 2 OUT CMRR: 126 dB at VCM of ±11 V +IN 3 NC High open-loop gain: 1.8 million
1 0
Available in die form 4V– (CASE)
-0 7 1
NC = NO CONNECT
3 0 0
GENERAL DESCRIPTION
Figure 1. 8-Lead TO-99 (J-Suffix) The OP27 precision operational amplifier combines the low offset and drift of the OP07 with both high speed and low noise.
1 8 VOS TRIM VOS TRIM OP27
Offsets down to 25 µV and maximum drift of 0.6 µV/°C make
–IN 2 7 V+
the OP27 ideal for precision instrumentation applications. Low
+IN 3 6 OUT
noise, en = 3.5 nV/√Hz, at 10 Hz, a low 1/f noise corner
V– 4 5 NC
2 0 -0 frequency of 2.7 Hz, and high gain (1.8 million), allow accurate 7 1
NC = NO CONNECT
3 0 0 high-gain amplification of low-level signals. A gain bandwidth product of 8 MHz and a 2.8 V/µs slew rate provide excellent Figure 2. 8-Lead CERDIP – Glass Hermetic Seal (Z-Suffix), 8-Lead PDIP (P-Suffix), and 8-Lead SOIC (S-Suffix) dynamic accuracy in high speed, data-acquisition systems. A low input bias current of ±10 nA is achieved by use of a bias current cancellation circuit. Over the military temperature range, this circuit typical y holds IB and IOS to ±20 nA and 15 nA, respectively. The output stage has good load driving capability. A guaranteed swing of ±10 V into 600 Ω and low output distortion make the OP27 an excellent choice for professional audio applications. (Continued on Page 3)
FUNCTIONAL BLOCK DIAGRAM V+ R3 R4 C2 1 8 Q6 Q22 Q46 V C1 R11 OS ADJ. R21 R23 R24 Q21 Q23 Q24 R9 Q20 Q19 Q1A Q1B Q2B Q2A R12 OUTPUT NONINVERTING C3 C4 INPUT (+) R5 Q3 INVERTING Q26 Q11 Q12 Q45 INPUT (–) Q27 Q28 1 R1 AND R2 ARE PERMANENTLY ADJUSTED AT WAFER TEST FOR MINIMUM OFFSET VOLTAGE
3 0 -0 7 1
V–
3 0 0 Figure 3.
