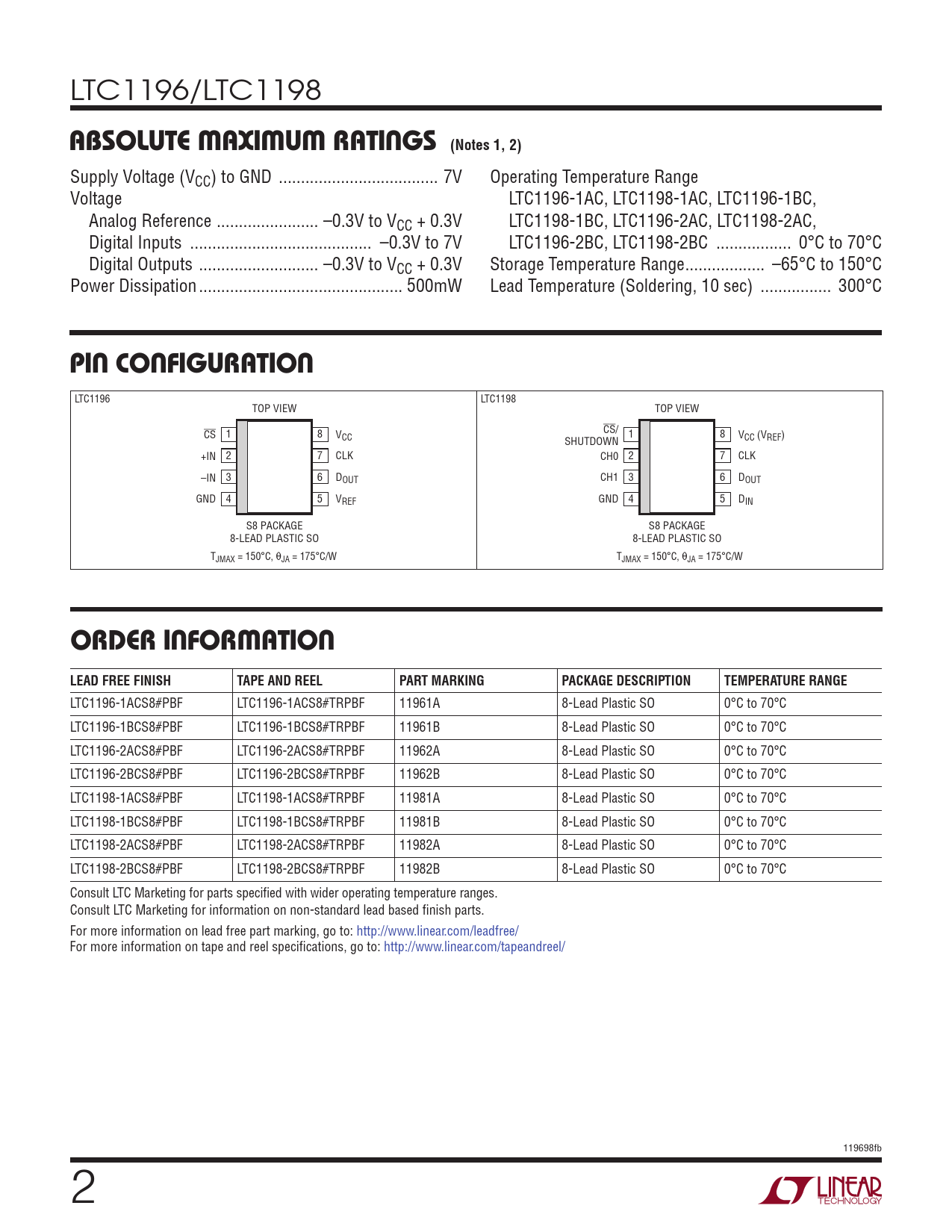

LTC1196/LTC1198
ABSOLUTE MAXIMUM RATINGS (Notes 1, 2)
Supply Voltage (VCC) to GND .. 7V Operating Temperature Range Voltage LTC1196-1AC, LTC1198-1AC, LTC1196-1BC, Analog Reference ... –0.3V to VCC + 0.3V LTC1198-1BC, LTC1196-2AC, LTC1198-2AC, Digital Inputs ... –0.3V to 7V LTC1196-2BC, LTC1198-2BC ... 0°C to 70°C Digital Outputs ... –0.3V to VCC + 0.3V Storage Temperature Range .. –65°C to 150°C Power Dissipation .. 500mW Lead Temperature (Soldering, 10 sec) .. 300°C
PIN CONFIGURATION
LTC1196 LTC1198 TOP VIEW TOP VIEW CS CS 1 8 / VCC 1 8 VCC (VREF) SHUTDOWN +IN 2 7 CLK CH0 2 7 CLK –IN 3 6 DOUT CH1 3 6 DOUT GND 4 5 VREF GND 4 5 DIN S8 PACKAGE S8 PACKAGE 8-LEAD PLASTIC SO 8-LEAD PLASTIC SO TJMAX = 150°C, θJA = 175°C/W TJMAX = 150°C, θJA = 175°C/W
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC1196-1ACS8#PBF LTC1196-1ACS8#TRPBF 11961A 8-Lead Plastic SO 0°C to 70°C LTC1196-1BCS8#PBF LTC1196-1BCS8#TRPBF 11961B 8-Lead Plastic SO 0°C to 70°C LTC1196-2ACS8#PBF LTC1196-2ACS8#TRPBF 11962A 8-Lead Plastic SO 0°C to 70°C LTC1196-2BCS8#PBF LTC1196-2BCS8#TRPBF 11962B 8-Lead Plastic SO 0°C to 70°C LTC1198-1ACS8#PBF LTC1198-1ACS8#TRPBF 11981A 8-Lead Plastic SO 0°C to 70°C LTC1198-1BCS8#PBF LTC1198-1BCS8#TRPBF 11981B 8-Lead Plastic SO 0°C to 70°C LTC1198-2ACS8#PBF LTC1198-2ACS8#TRPBF 11982A 8-Lead Plastic SO 0°C to 70°C LTC1198-2BCS8#PBF LTC1198-2BCS8#TRPBF 11982B 8-Lead Plastic SO 0°C to 70°C Consult LTC Marketing for parts specifi ed with wider operating temperature ranges. Consult LTC Marketing for information on non-standard lead based fi nish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifi cations, go to: http://www.linear.com/tapeandreel/ 119698fb 2
