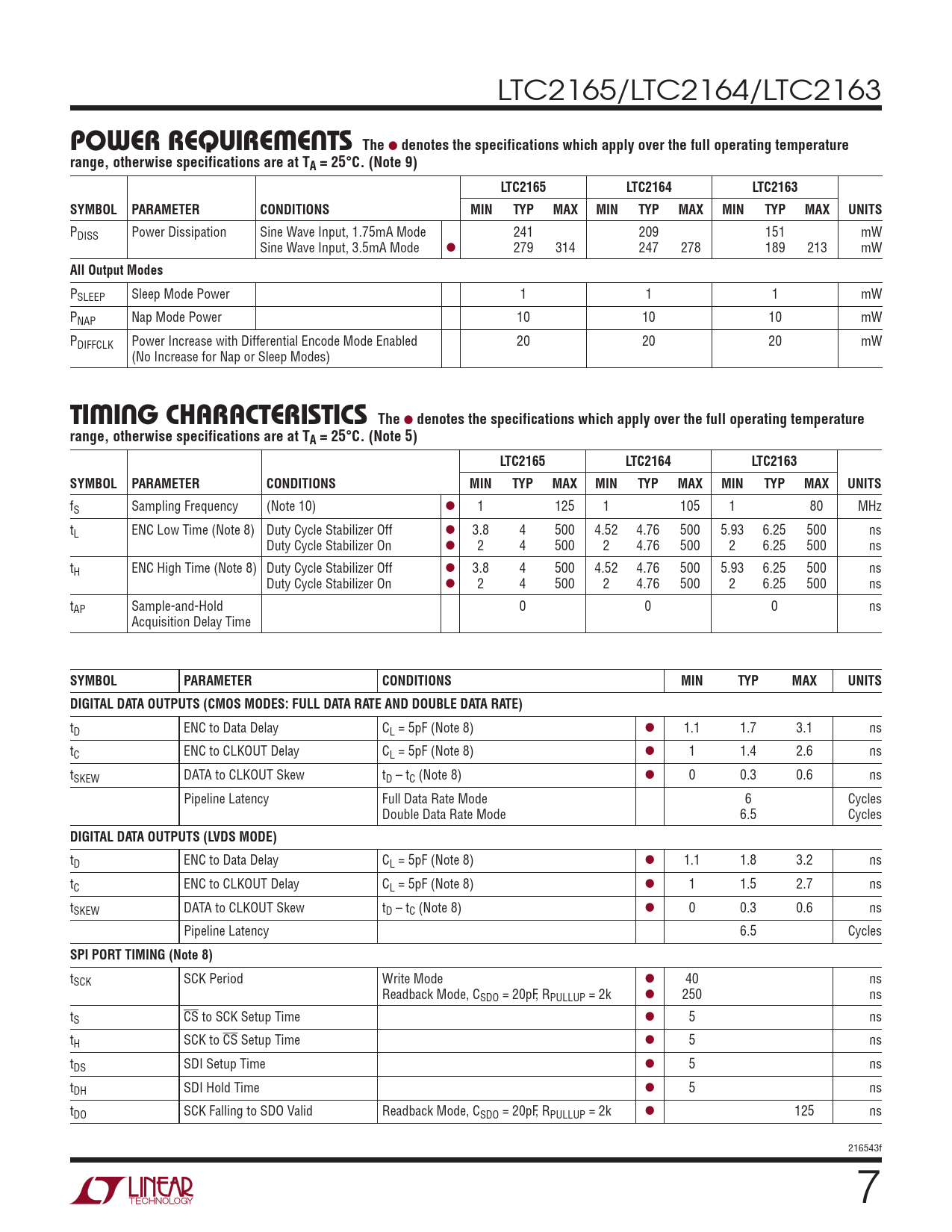

Datasheet LTC2165, LTC2164, LTC2163 (Analog Devices) - 7
| 制造商 | Analog Devices |
| 描述 | 16-Bit, 125Msps Low Power ADCs |
| 页数 / 页 | 36 / 7 — power requireMenTs. The. denotes the specifications which apply over the … |
| 文件格式/大小 | PDF / 684 Kb |
| 文件语言 | 英语 |
power requireMenTs. The. denotes the specifications which apply over the full operating temperature
该数据表的模型线
- LTC2163CUK#PBF LTC2163CUK#PBF LTC2163CUK#TRPBF LTC2163CUK#TRPBF LTC2163IUK#PBF LTC2163IUK#PBF LTC2163IUK#TRPBF LTC2163IUK#TRPBF
文件文字版本
LTC2165/LTC2164/LTC2163
power requireMenTs The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. (Note 9) LTC2165 LTC2164 LTC2163 SYMBOL PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX MIN TYP MAX UNITS
PDISS Power Dissipation Sine Wave Input, 1.75mA Mode 241 209 151 mW Sine Wave Input, 3.5mA Mode l 279 314 247 278 189 213 mW
All Output Modes
PSLEEP Sleep Mode Power 1 1 1 mW PNAP Nap Mode Power 10 10 10 mW PDIFFCLK Power Increase with Differential Encode Mode Enabled 20 20 20 mW (No Increase for Nap or Sleep Modes)
TiMing characTerisTics The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. (Note 5) LTC2165 LTC2164 LTC2163 SYMBOL PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX MIN TYP MAX UNITS
fS Sampling Frequency (Note 10) l 1 125 1 105 1 80 MHz tL ENC Low Time (Note 8) Duty Cycle Stabilizer Off l 3.8 4 500 4.52 4.76 500 5.93 6.25 500 ns Duty Cycle Stabilizer On l 2 4 500 2 4.76 500 2 6.25 500 ns tH ENC High Time (Note 8) Duty Cycle Stabilizer Off l 3.8 4 500 4.52 4.76 500 5.93 6.25 500 ns Duty Cycle Stabilizer On l 2 4 500 2 4.76 500 2 6.25 500 ns tAP Sample-and-Hold 0 0 0 ns Acquisition Delay Time
SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS DIGITAL DATA OUTPUTS (CMOS MODES: FULL DATA RATE AND DOUBLE DATA RATE)
tD ENC to Data Delay CL = 5pF (Note 8) l 1.1 1.7 3.1 ns tC ENC to CLKOUT Delay CL = 5pF (Note 8) l 1 1.4 2.6 ns tSKEW DATA to CLKOUT Skew tD – tC (Note 8) l 0 0.3 0.6 ns Pipeline Latency Full Data Rate Mode 6 Cycles Double Data Rate Mode 6.5 Cycles
DIGITAL DATA OUTPUTS (LVDS MODE)
tD ENC to Data Delay CL = 5pF (Note 8) l 1.1 1.8 3.2 ns tC ENC to CLKOUT Delay CL = 5pF (Note 8) l 1 1.5 2.7 ns tSKEW DATA to CLKOUT Skew tD – tC (Note 8) l 0 0.3 0.6 ns Pipeline Latency 6.5 Cycles
SPI PORT TIMING (Note 8)
tSCK SCK Period Write Mode l 40 ns Readback Mode, CSDO = 20pF, RPULLUP = 2k l 250 ns tS CS to SCK Setup Time l 5 ns tH SCK to CS Setup Time l 5 ns tDS SDI Setup Time l 5 ns tDH SDI Hold Time l 5 ns tDO SCK Falling to SDO Valid Readback Mode, CSDO = 20pF, RPULLUP = 2k l 125 ns 216543f 7 Document Outline Features Applications Description Absolute Maximum Ratings Typical Application Pin Configuration Order Information Converter Characteristics Analog Input Dynamic Accuracy Internal Reference Characteristics Digital Inputs And Outputs Power Requirements Timing Characteristics Electrical Characteristics Timing Diagrams Typical Performance Characteristics Pin Functions Functional Block Diagram Applications Information Typical Applications Package Description Typical Application Related Parts
