Datasheet LT5534 (Analog Devices) - 10
| 制造商 | Analog Devices |
| 描述 | 50MHz to 3GHz RF Power Detector with 60dB Dynamic Range |
| 页数 / 页 | 10 / 10 — PACKAGE DESCRIPTION. SC6 Package. 6-Lead Plastic SC70. RELATED PARTS PART … |
| 文件格式/大小 | PDF / 1.0 Mb |
| 文件语言 | 英语 |
PACKAGE DESCRIPTION. SC6 Package. 6-Lead Plastic SC70. RELATED PARTS PART NUMBER DESCRIPTION. COMMENTS
该数据表的模型线
文件文字版本

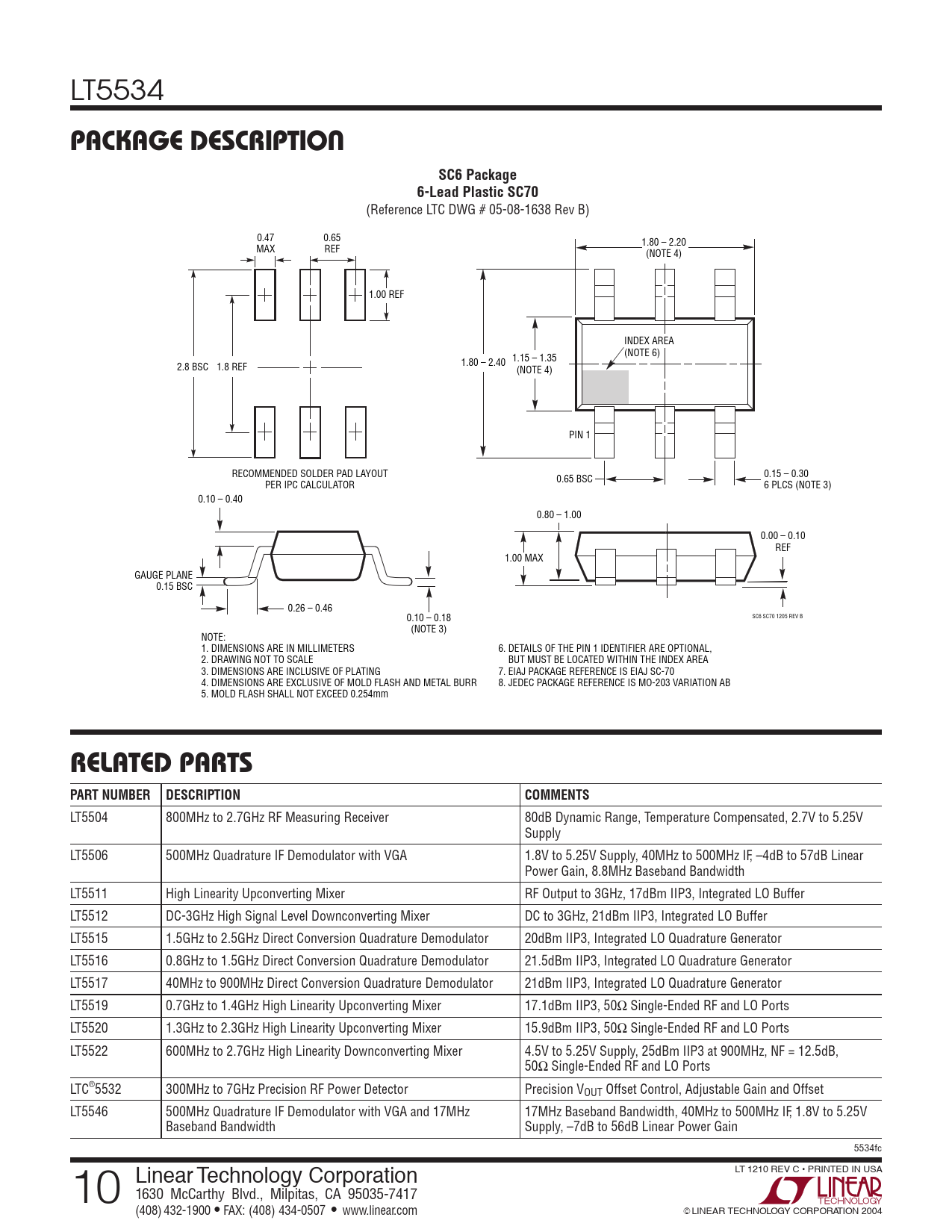

LT5534
PACKAGE DESCRIPTION SC6 Package 6-Lead Plastic SC70
(Reference LTC DWG # 05-08-1638 Rev B) 0.47 0.65 1.80 – 2.20 MAX REF (NOTE 4) 1.00 REF INDEX AREA 1.15 – 1.35 (NOTE 6) 1.80 – 2.40 2.8 BSC 1.8 REF (NOTE 4) PIN 1 RECOMMENDED SOLDER PAD LAYOUT 0.15 – 0.30 0.65 BSC PER IPC CALCULATOR 6 PLCS (NOTE 3) 0.10 – 0.40 0.80 – 1.00 0.00 – 0.10 REF 1.00 MAX GAUGE PLANE 0.15 BSC 0.26 – 0.46 SC6 SC70 1205 REV B 0.10 – 0.18 (NOTE 3) NOTE: 1. DIMENSIONS ARE IN MILLIMETERS 6. DETAILS OF THE PIN 1 IDENTIFIER ARE OPTIONAL, 2. DRAWING NOT TO SCALE BUT MUST BE LOCATED WITHIN THE INDEX AREA 3. DIMENSIONS ARE INCLUSIVE OF PLATING 7. EIAJ PACKAGE REFERENCE IS EIAJ SC-70 4. DIMENSIONS ARE EXCLUSIVE OF MOLD FLASH AND METAL BURR 8. JEDEC PACKAGE REFERENCE IS MO-203 VARIATION AB 5. MOLD FLASH SHALL NOT EXCEED 0.254mm
RELATED PARTS PART NUMBER DESCRIPTION COMMENTS
LT5504 800MHz to 2.7GHz RF Measuring Receiver 80dB Dynamic Range, Temperature Compensated, 2.7V to 5.25V Supply LT5506 500MHz Quadrature IF Demodulator with VGA 1.8V to 5.25V Supply, 40MHz to 500MHz IF, –4dB to 57dB Linear Power Gain, 8.8MHz Baseband Bandwidth LT5511 High Linearity Upconverting Mixer RF Output to 3GHz, 17dBm IIP3, Integrated LO Buffer LT5512 DC-3GHz High Signal Level Downconverting Mixer DC to 3GHz, 21dBm IIP3, Integrated LO Buffer LT5515 1.5GHz to 2.5GHz Direct Conversion Quadrature Demodulator 20dBm IIP3, Integrated LO Quadrature Generator LT5516 0.8GHz to 1.5GHz Direct Conversion Quadrature Demodulator 21.5dBm IIP3, Integrated LO Quadrature Generator LT5517 40MHz to 900MHz Direct Conversion Quadrature Demodulator 21dBm IIP3, Integrated LO Quadrature Generator LT5519 0.7GHz to 1.4GHz High Linearity Upconverting Mixer 17.1dBm IIP3, 50Ω Single-Ended RF and LO Ports LT5520 1.3GHz to 2.3GHz High Linearity Upconverting Mixer 15.9dBm IIP3, 50Ω Single-Ended RF and LO Ports LT5522 600MHz to 2.7GHz High Linearity Downconverting Mixer 4.5V to 5.25V Supply, 25dBm IIP3 at 900MHz, NF = 12.5dB, 50Ω Single-Ended RF and LO Ports LTC®5532 300MHz to 7GHz Precision RF Power Detector Precision VOUT Offset Control, Adjustable Gain and Offset LT5546 500MHz Quadrature IF Demodulator with VGA and 17MHz 17MHz Baseband Bandwidth, 40MHz to 500MHz IF, 1.8V to 5.25V Baseband Bandwidth Supply, –7dB to 56dB Linear Power Gain 5534fc 10 Linear Technology Corporation LT 1210 REV C • PRINTED IN USA 1630 McCarthy Blvd., Milpitas, CA 95035-7417 (408) 432-1900 ● FAX: (408) 434-0507 ● www.linear.com LINEAR TECHNOLOGY CORPORATION 2004 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram TEST CIRCUIT Applications Information Revision History Package Description Related Parts
