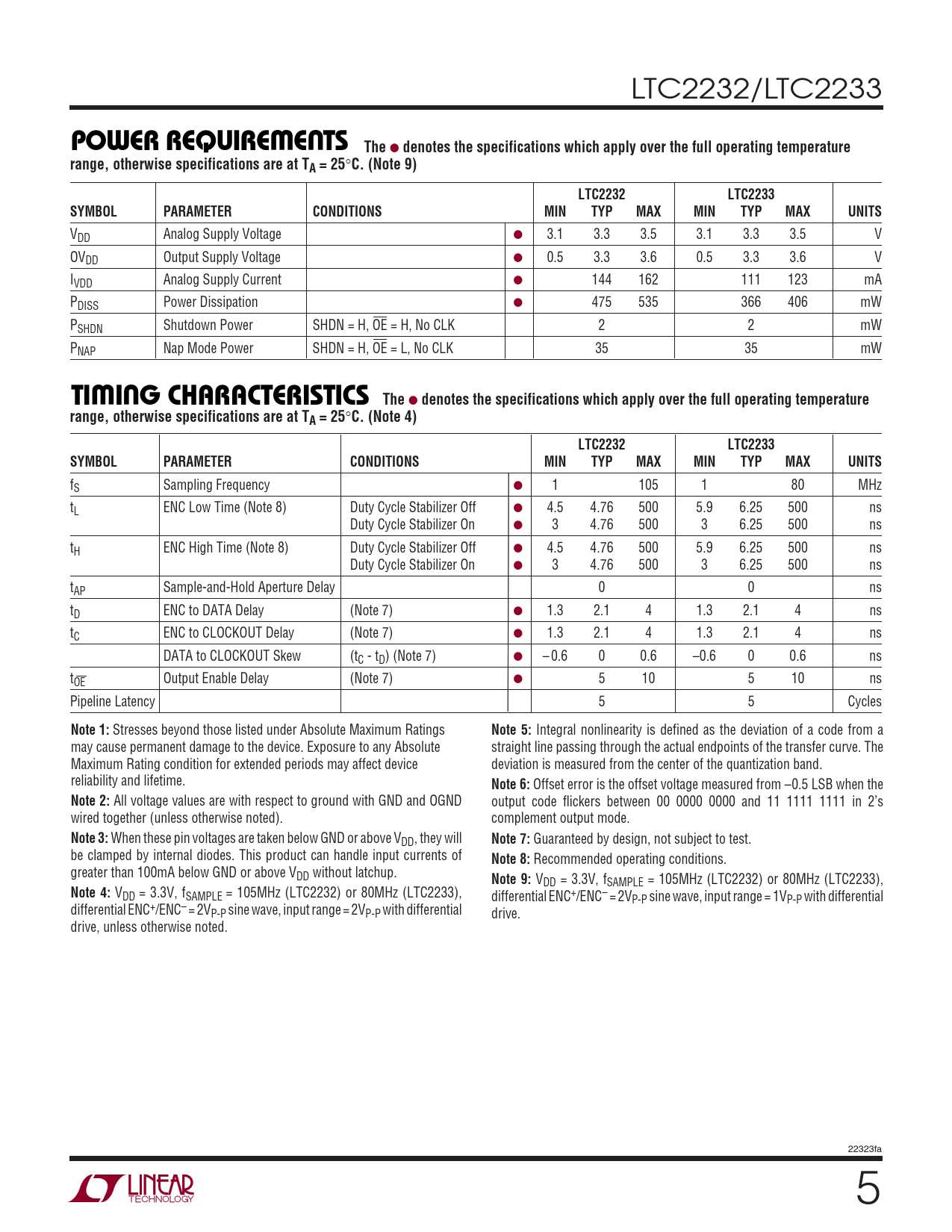

LTC2232/LTC2233
W U POWER REQUIRE E TS The
●
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25
°
C. (Note 9) LTC2232 LTC2233 SYMBOL PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX UNITS
VDD Analog Supply Voltage ● 3.1 3.3 3.5 3.1 3.3 3.5 V OVDD Output Supply Voltage ● 0.5 3.3 3.6 0.5 3.3 3.6 V IVDD Analog Supply Current ● 144 162 111 123 mA PDISS Power Dissipation ● 475 535 366 406 mW PSHDN Shutdown Power SHDN = H, OE = H, No CLK 2 2 mW PNAP Nap Mode Power SHDN = H, OE = L, No CLK 35 35 mW
W U TI I G CHARACTERISTICS The
●
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25
°
C. (Note 4) LTC2232 LTC2233 SYMBOL PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX UNITS
fS Sampling Frequency ● 1 105 1 80 MHz tL ENC Low Time (Note 8) Duty Cycle Stabilizer Off ● 4.5 4.76 500 5.9 6.25 500 ns Duty Cycle Stabilizer On ● 3 4.76 500 3 6.25 500 ns tH ENC High Time (Note 8) Duty Cycle Stabilizer Off ● 4.5 4.76 500 5.9 6.25 500 ns Duty Cycle Stabilizer On ● 3 4.76 500 3 6.25 500 ns tAP Sample-and-Hold Aperture Delay 0 0 ns tD ENC to DATA Delay (Note 7) ● 1.3 2.1 4 1.3 2.1 4 ns tC ENC to CLOCKOUT Delay (Note 7) ● 1.3 2.1 4 1.3 2.1 4 ns DATA to CLOCKOUT Skew (tC - tD) (Note 7) ● – 0.6 0 0.6 –0.6 0 0.6 ns tOE Output Enable Delay (Note 7) ● 5 10 5 10 ns Pipeline Latency 5 5 Cycles
Note 1:
Stresses beyond those listed under Absolute Maximum Ratings
Note 5:
Integral nonlinearity is defined as the deviation of a code from a may cause permanent damage to the device. Exposure to any Absolute straight line passing through the actual endpoints of the transfer curve. The Maximum Rating condition for extended periods may affect device deviation is measured from the center of the quantization band. reliability and lifetime.
Note 6:
Offset error is the offset voltage measured from –0.5 LSB when the
Note 2:
All voltage values are with respect to ground with GND and OGND output code flickers between 00 0000 0000 and 11 1111 1111 in 2’s wired together (unless otherwise noted). complement output mode.
Note 3:
When these pin voltages are taken below GND or above VDD, they will
Note 7:
Guaranteed by design, not subject to test. be clamped by internal diodes. This product can handle input currents of
Note 8:
Recommended operating conditions. greater than 100mA below GND or above VDD without latchup.
Note 9:
VDD = 3.3V, fSAMPLE = 105MHz (LTC2232) or 80MHz (LTC2233),
Note 4:
VDD = 3.3V, fSAMPLE = 105MHz (LTC2232) or 80MHz (LTC2233), differential ENC+/ENC– = 2VP-P sine wave, input range = 1VP-P with differential differential ENC+/ENC– = 2VP-P sine wave, input range = 2VP-P with differential drive. drive, unless otherwise noted. 22323fa 5
