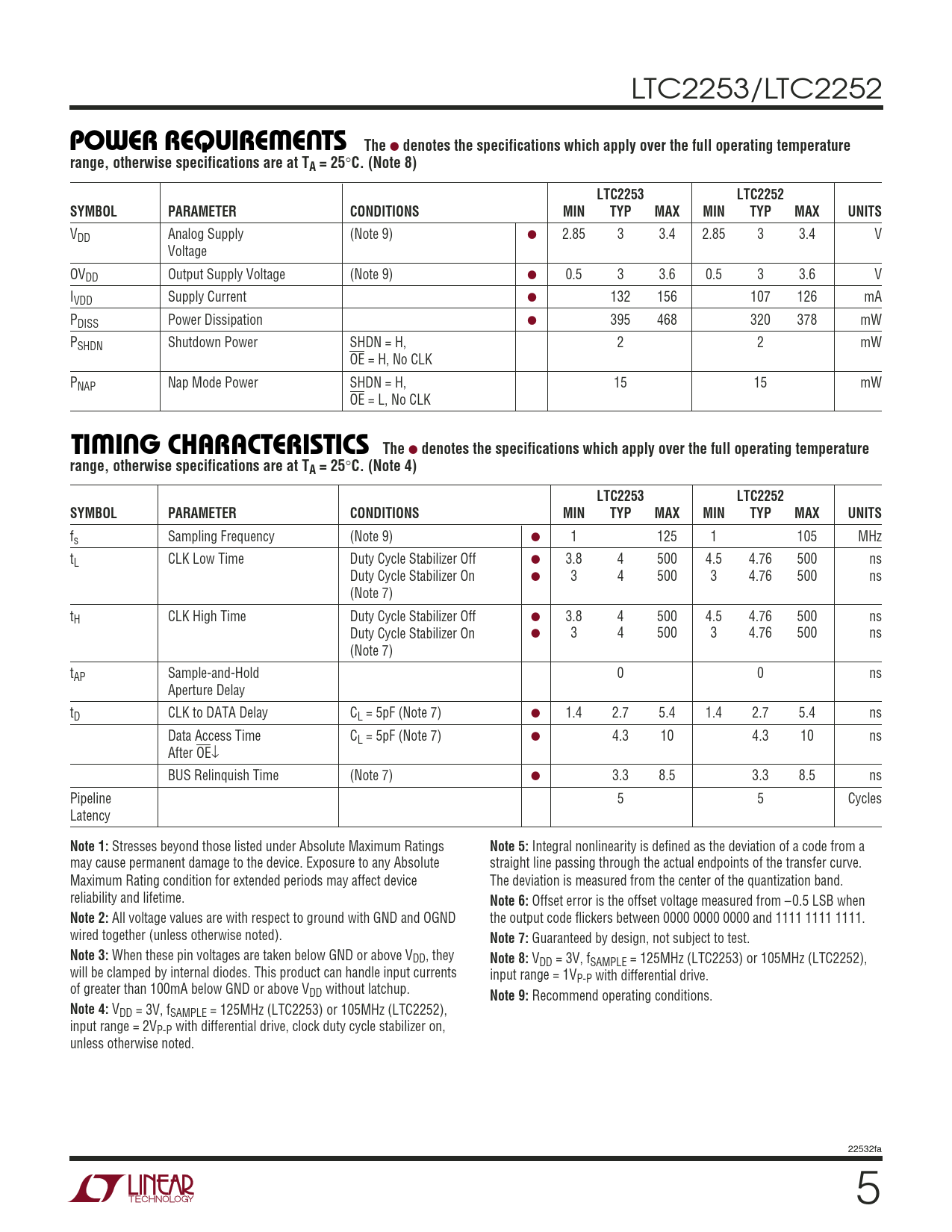

LTC2253/LTC2252
W U POWER REQUIRE E TS The
●
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25
°
C. (Note 8) LTC2253 LTC2252 SYMBOL PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX UNITS
VDD Analog Supply (Note 9) ● 2.85 3 3.4 2.85 3 3.4 V Voltage OVDD Output Supply Voltage (Note 9) ● 0.5 3 3.6 0.5 3 3.6 V IVDD Supply Current ● 132 156 107 126 mA PDISS Power Dissipation ● 395 468 320 378 mW PSHDN Shutdown Power SHDN = H, 2 2 mW OE = H, No CLK PNAP Nap Mode Power SHDN = H, 15 15 mW OE = L, No CLK
W U TI I G CHARACTERISTICS The
●
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25
°
C. (Note 4) LTC2253 LTC2252 SYMBOL PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX UNITS
fs Sampling Frequency (Note 9) ● 1 125 1 105 MHz tL CLK Low Time Duty Cycle Stabilizer Off ● 3.8 4 500 4.5 4.76 500 ns Duty Cycle Stabilizer On ● 3 4 500 3 4.76 500 ns (Note 7) tH CLK High Time Duty Cycle Stabilizer Off ● 3.8 4 500 4.5 4.76 500 ns Duty Cycle Stabilizer On ● 3 4 500 3 4.76 500 ns (Note 7) tAP Sample-and-Hold 0 0 ns Aperture Delay tD CLK to DATA Delay CL = 5pF (Note 7) ● 1.4 2.7 5.4 1.4 2.7 5.4 ns Data Access Time CL = 5pF (Note 7) ● 4.3 10 4.3 10 ns After OE↓ BUS Relinquish Time (Note 7) ● 3.3 8.5 3.3 8.5 ns Pipeline 5 5 Cycles Latency
