Datasheet LTC2268-12, LTC2267-12, LTC2266-12 (Analog Devices) - 10
| 制造商 | Analog Devices |
| 描述 | 12-Bit, 125Msps Low Power Dual ADCs |
| 页数 / 页 | 32 / 10 — TiMing DiagraMs. SPI Port Timing (Readback Mode). SPI Port Timing (Write … |
| 文件格式/大小 | PDF / 1.1 Mb |
| 文件语言 | 英语 |

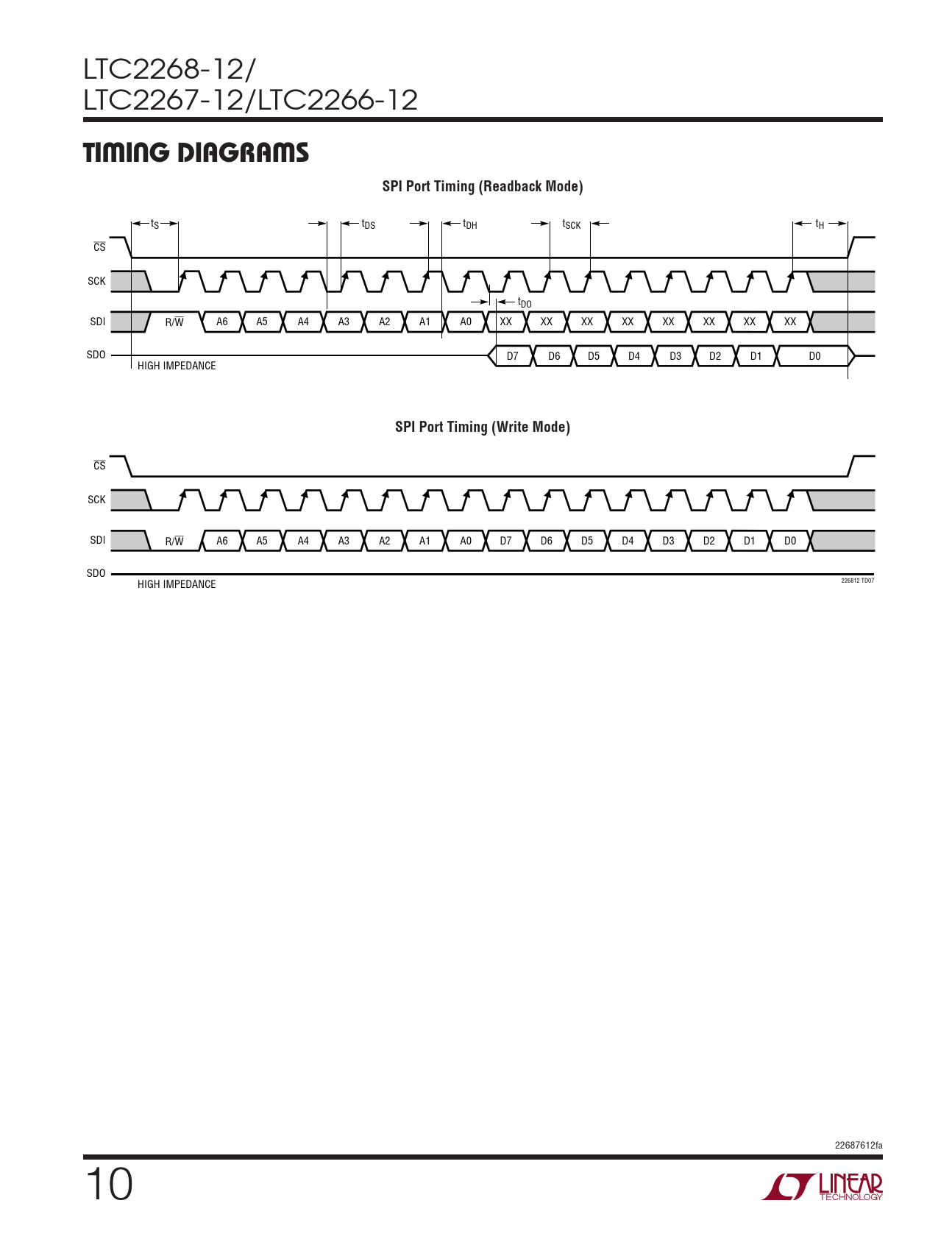

TiMing DiagraMs. SPI Port Timing (Readback Mode). SPI Port Timing (Write Mode)
该数据表的模型线
- LTC2266CUJ-12#PBF LTC2266CUJ-12#PBF LTC2266CUJ-12#TRPBF LTC2266CUJ-12#TRPBF LTC2266IUJ-12#PBF LTC2266IUJ-12#PBF LTC2266IUJ-12#TRPBF LTC2266IUJ-12#TRPBF
文件文字版本
LTC2268-12/ LTC2267-12/LTC2266-12
TiMing DiagraMs SPI Port Timing (Readback Mode)
tS tDS tDH tSCK tH CS SCK tDO SDI R/W A6 A5 A4 A3 A2 A1 A0 XX XX XX XX XX XX XX XX SDO D7 D6 D5 D4 D3 D2 D1 D0 HIGH IMPEDANCE
SPI Port Timing (Write Mode)
CS SCK SDI R/W A6 A5 A4 A3 A2 A1 A0 D7 D6 D5 D4 D3 D2 D1 D0 SDO 226812 TD07 HIGH IMPEDANCE 22687612fa 10 Document Outline Features Description Applications Typical Application Absolute Maximum Ratings Pin Configuration Order Information Converter Characteristics Analog Input Digital Accuracy Internal Reference Characteristics Digital Inputs and Outputs Power Requirements Timing Characteristics Electrical Characteristics Timing Diagrams Typical Performance Characteristics Pin Functions Block Diagram Applications Information Typical Applications Package Description Revision History Related Parts
TiMing DiagraMs SPI Port Timing (Readback Mode)
tS tDS tDH tSCK tH CS SCK tDO SDI R/W A6 A5 A4 A3 A2 A1 A0 XX XX XX XX XX XX XX XX SDO D7 D6 D5 D4 D3 D2 D1 D0 HIGH IMPEDANCE
SPI Port Timing (Write Mode)
CS SCK SDI R/W A6 A5 A4 A3 A2 A1 A0 D7 D6 D5 D4 D3 D2 D1 D0 SDO 226812 TD07 HIGH IMPEDANCE 22687612fa 10 Document Outline Features Description Applications Typical Application Absolute Maximum Ratings Pin Configuration Order Information Converter Characteristics Analog Input Digital Accuracy Internal Reference Characteristics Digital Inputs and Outputs Power Requirements Timing Characteristics Electrical Characteristics Timing Diagrams Typical Performance Characteristics Pin Functions Block Diagram Applications Information Typical Applications Package Description Revision History Related Parts
