Datasheet LTC2327-16 (Analog Devices) - 10
| 制造商 | Analog Devices |
| 描述 | 16-Bit, 500ksps, ±10.24V True Bipolar, Pseudo-Differential Input ADC with 93.5dB SNR |
| 页数 / 页 | 26 / 10 — FuncTional block DiagraM. TiMing DiagraM. Conversion Timing Using the … |
| 文件格式/大小 | PDF / 1.0 Mb |
| 文件语言 | 英语 |

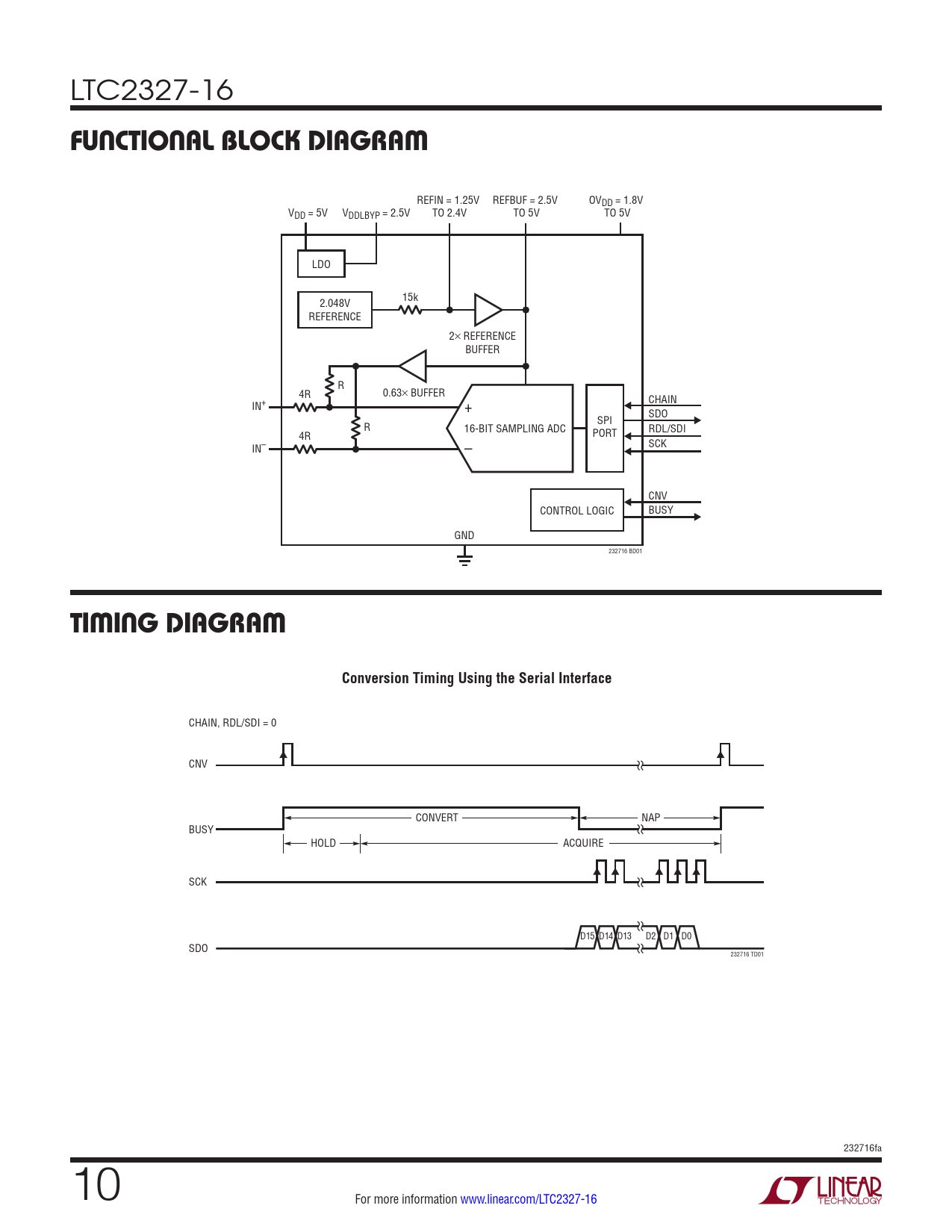

FuncTional block DiagraM. TiMing DiagraM. Conversion Timing Using the Serial Interface
该数据表的模型线
文件文字版本
LTC2327-16
FuncTional block DiagraM
REFIN = 1.25V REFBUF = 2.5V OVDD = 1.8V VDD = 5V VDDLBYP = 2.5V TO 2.4V TO 5V TO 5V LDO 2.048V 15k REFERENCE 2× REFERENCE BUFFER R 4R 0.63× BUFFER CHAIN IN+ + SDO SPI R 16-BIT SAMPLING ADC RDL/SDI PORT 4R IN– SCK – CNV CONTROL LOGIC BUSY GND 232716 BD01
TiMing DiagraM Conversion Timing Using the Serial Interface
CHAIN, RDL/SDI = 0 CNV CONVERT NAP BUSY HOLD ACQUIRE SCK D15 D14 D13 D2 D1 D0 SDO 232716 TD01 232716fa 10 For more information www.linear.com/LTC2327-16 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Order Information Pin Configuration Electrical Characteristics Converter Characteristics Dynamic Accuracy Internal Reference Characteristics Reference Buffer Characteristics Digital Inputs and Digital Outputs Power Requirements ADC Timing Characteristics Typical Performance Characteristics Pin Functions Functional Block Diagram Timing Diagram Applications Information Board Layout Package Description Typical Application Related Parts
