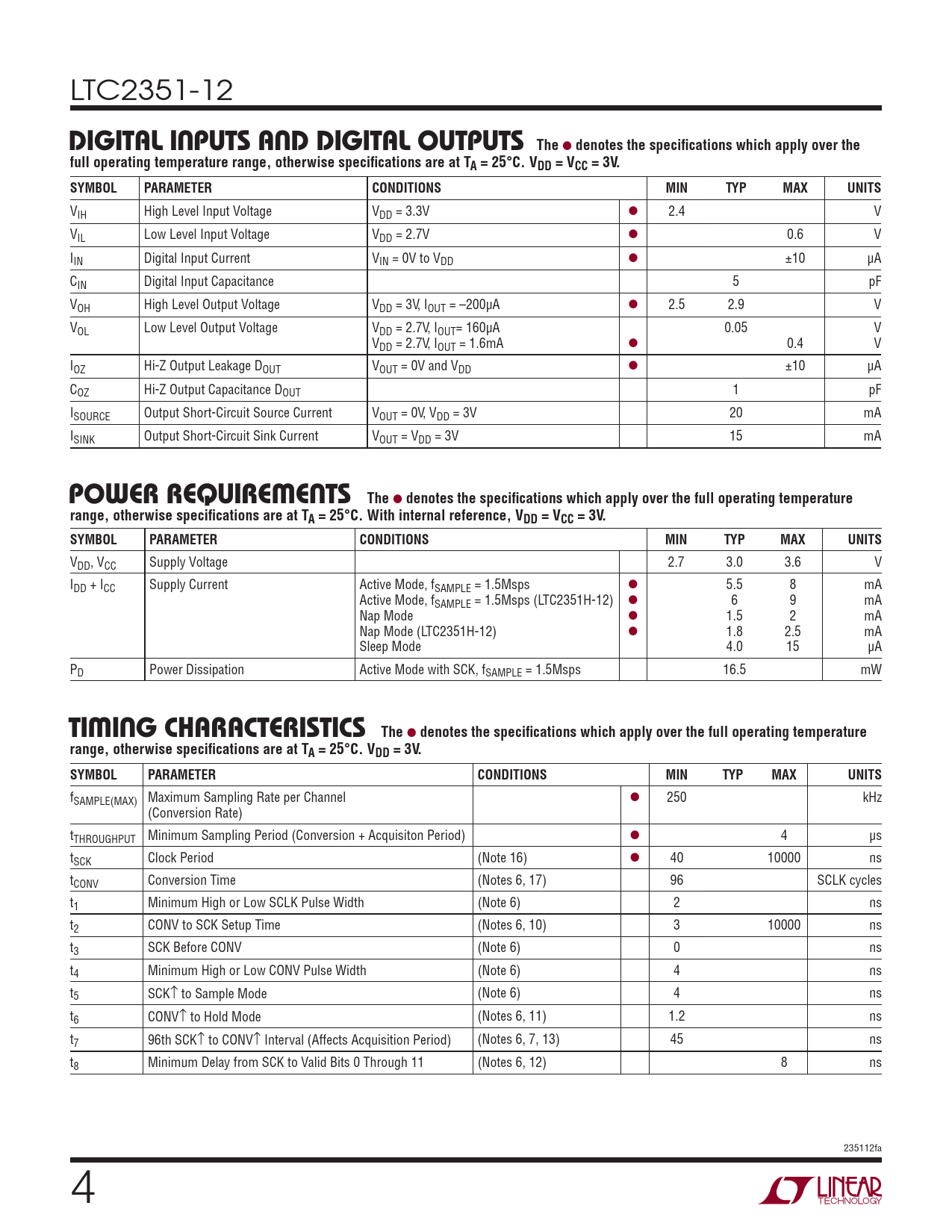

LTC2351-12
DIGITAL INPUTS AND DIGITAL OUTPUTS The
l
denotes the specifi cations which apply over the full operating temperature range, otherwise specifi cations are at TA = 25°C. VDD = VCC = 3V. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VIH High Level Input Voltage VDD = 3.3V l 2.4 V VIL Low Level Input Voltage VDD = 2.7V l 0.6 V IIN Digital Input Current VIN = 0V to VDD l ±10 μA CIN Digital Input Capacitance 5 pF VOH High Level Output Voltage VDD = 3V, IOUT = –200μA l 2.5 2.9 V VOL Low Level Output Voltage VDD = 2.7V, IOUT= 160μA 0.05 V VDD = 2.7V, IOUT = 1.6mA l 0.4 V IOZ Hi-Z Output Leakage DOUT VOUT = 0V and VDD l ±10 μA COZ Hi-Z Output Capacitance DOUT 1 pF ISOURCE Output Short-Circuit Source Current VOUT = 0V, VDD = 3V 20 mA ISINK Output Short-Circuit Sink Current VOUT = VDD = 3V 15 mA
POWER REQUIREMENTS The
l
denotes the specifi cations which apply over the full operating temperature range, otherwise specifi cations are at TA = 25°C. With internal reference, VDD = VCC = 3V. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VDD, VCC Supply Voltage 2.7 3.0 3.6 V IDD + ICC Supply Current Active Mode, fSAMPLE = 1.5Msps l 5.5 8 mA Active Mode, fSAMPLE = 1.5Msps (LTC2351H-12) l 6 9 mA Nap Mode l 1.5 2 mA Nap Mode (LTC2351H-12) l 1.8 2.5 mA Sleep Mode 4.0 15 μA PD Power Dissipation Active Mode with SCK, fSAMPLE = 1.5Msps 16.5 mW
TIMING CHARACTERISTICS The
l
denotes the specifi cations which apply over the full operating temperature range, otherwise specifi cations are at TA = 25°C. VDD = 3V. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
fSAMPLE(MAX) Maximum Sampling Rate per Channel l 250 kHz (Conversion Rate) tTHROUGHPUT Minimum Sampling Period (Conversion + Acquisiton Period) l 4 μs tSCK Clock Period (Note 16) l 40 10000 ns tCONV Conversion Time (Notes 6, 17) 96 SCLK cycles t1 Minimum High or Low SCLK Pulse Width (Note 6) 2 ns t2 CONV to SCK Setup Time (Notes 6, 10) 3 10000 ns t3 SCK Before CONV (Note 6) 0 ns t4 Minimum High or Low CONV Pulse Width (Note 6) 4 ns t5 SCK↑ to Sample Mode (Note 6) 4 ns t6 CONV↑ to Hold Mode (Notes 6, 11) 1.2 ns t7 96th SCK↑ to CONV↑ Interval (Affects Acquisition Period) (Notes 6, 7, 13) 45 ns t8 Minimum Delay from SCK to Valid Bits 0 Through 11 (Notes 6, 12) 8 ns 235112fa 4
