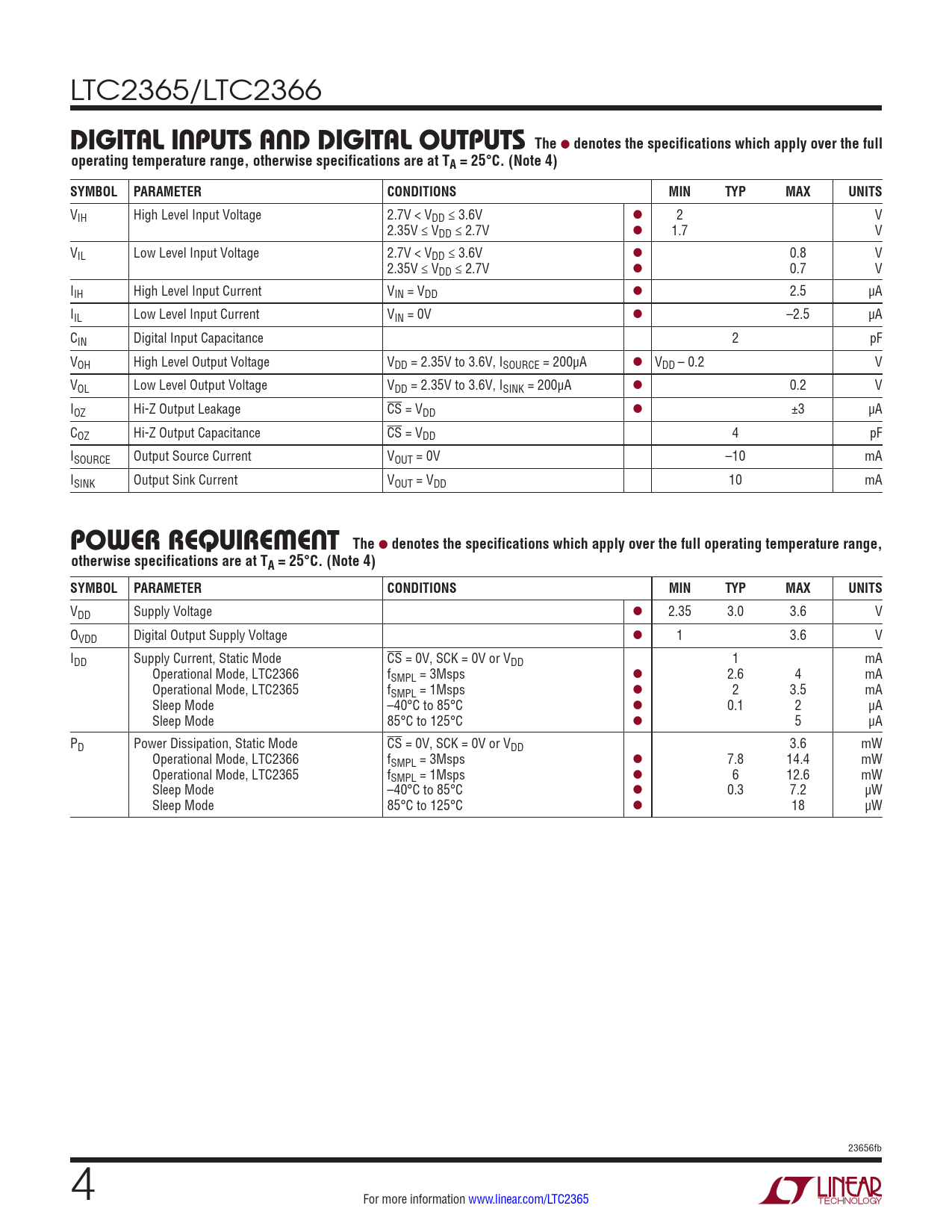

LTC2365/LTC2366
Digital inputs anD Digital outputs The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. (Note 4) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VIH High Level Input Voltage 2.7V < VDD ≤ 3.6V l 2 V 2.35V ≤ VDD ≤ 2.7V l 1.7 V VIL Low Level Input Voltage 2.7V < VDD ≤ 3.6V l 0.8 V 2.35V ≤ VDD ≤ 2.7V l 0.7 V IIH High Level Input Current VIN = VDD l 2.5 µA IIL Low Level Input Current VIN = 0V l –2.5 µA CIN Digital Input Capacitance 2 pF VOH High Level Output Voltage VDD = 2.35V to 3.6V, ISOURCE = 200µA l VDD – 0.2 V VOL Low Level Output Voltage VDD = 2.35V to 3.6V, ISINK = 200µA l 0.2 V IOZ Hi-Z Output Leakage CS = VDD l ±3 µA COZ Hi-Z Output Capacitance CS = VDD 4 pF ISOURCE Output Source Current VOUT = 0V –10 mA ISINK Output Sink Current VOUT = VDD 10 mA
p ower requireMent The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. (Note 4) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VDD Supply Voltage l 2.35 3.0 3.6 V OVDD Digital Output Supply Voltage l 1 3.6 V IDD Supply Current, Static Mode CS = 0V, SCK = 0V or VDD 1 mA Operational Mode, LTC2366 fSMPL = 3Msps l 2.6 4 mA Operational Mode, LTC2365 fSMPL = 1Msps l 2 3.5 mA Sleep Mode –40°C to 85°C l 0.1 2 µA Sleep Mode 85°C to 125°C l 5 µA PD Power Dissipation, Static Mode CS = 0V, SCK = 0V or VDD 3.6 mW Operational Mode, LTC2366 fSMPL = 3Msps l 7.8 14.4 mW Operational Mode, LTC2365 fSMPL = 1Msps l 6 12.6 mW Sleep Mode –40°C to 85°C l 0.3 7.2 µW Sleep Mode 85°C to 125°C l 18 µW 23656fb 4 For more information www.linear.com/LTC2365 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Converter Characteristics Analog Inputs Dynamic Accuracy Digital Inputs and Digital Outputs Power Requirement Timing Characteristics Typical Performance Characteristics Pin Functions Block Diagram Timing Diagrams Applications Information Package Description Revision History Related Parts
