Datasheet LTC2488 (Analog Devices) - 10
| 制造商 | Analog Devices |
| 描述 | 16-Bit 2-/4-Channel ΔΣ ADC with Easy Drive Input Current Cancellation |
| 页数 / 页 | 30 / 10 — TIMING DIAGRAMS. Timing Diagram Using Internal SCK (SCK HIGH with CS. … |
| 文件格式/大小 | PDF / 399 Kb |
| 文件语言 | 英语 |

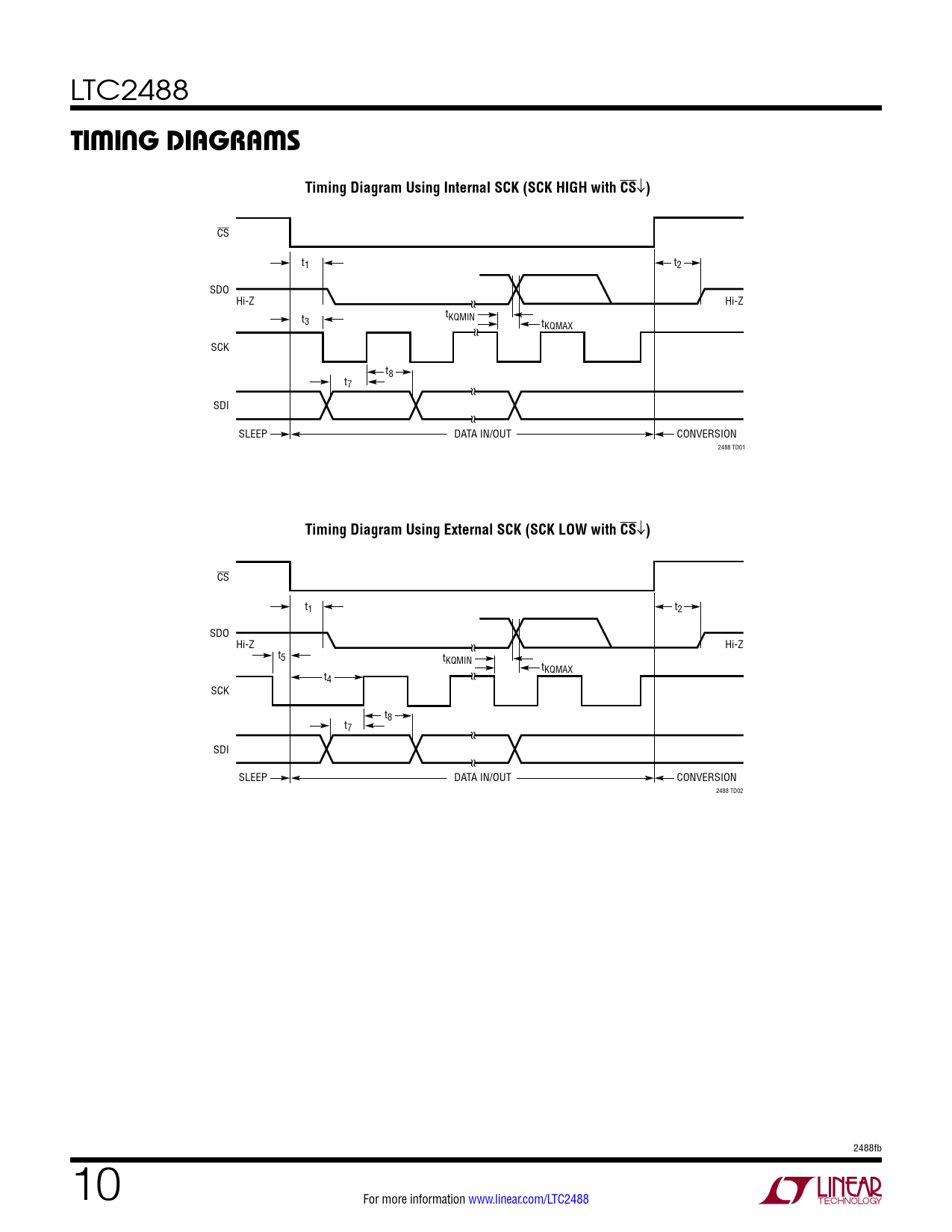

TIMING DIAGRAMS. Timing Diagram Using Internal SCK (SCK HIGH with CS. Timing Diagram Using External SCK (SCK LOW with CS
该数据表的模型线
文件文字版本
LTC2488
TIMING DIAGRAMS Timing Diagram Using Internal SCK (SCK HIGH with CS
↓
)
CS t1 t2 SDO Hi-Z Hi-Z t t 3 KQMIN tKQMAX SCK t8 t7 SDI SLEEP DATA IN/OUT CONVERSION 2488 TD01
Timing Diagram Using External SCK (SCK LOW with CS
↓
)
CS t1 t2 SDO Hi-Z Hi-Z t5 tKQMIN tKQMAX t4 SCK t8 t7 SDI SLEEP DATA IN/OUT CONVERSION 2488 TD02 2488fb 10 For more information www.linear.com/LTC2488
