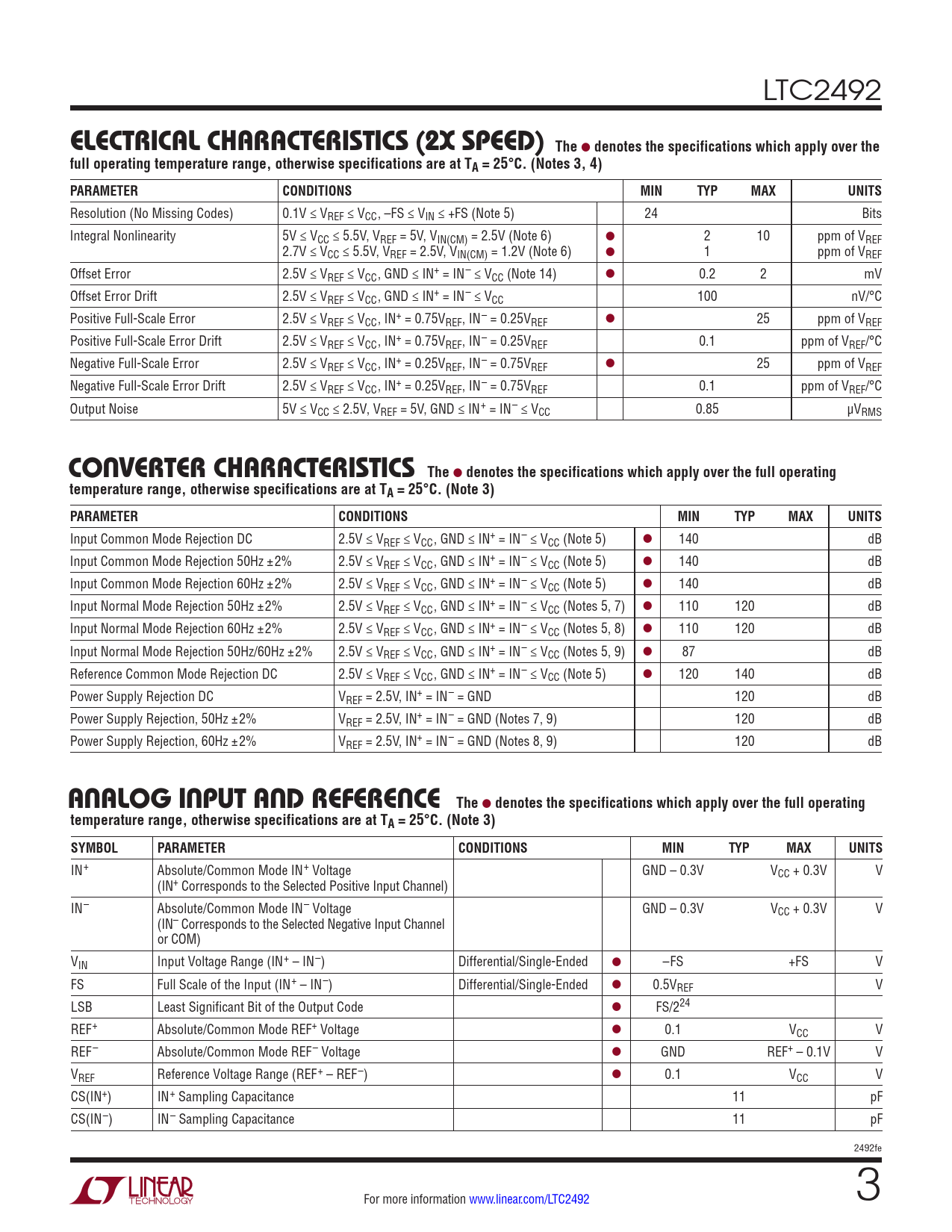

LTC2492
e lecTrical characTerisTics (2x speeD) The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. (Notes 3, 4) PARAMETER CONDITIONS MIN TYP MAX UNITS
Resolution (No Missing Codes) 0.1V ≤ VREF ≤ VCC, –FS ≤ VIN ≤ +FS (Note 5) 24 Bits Integral Nonlinearity 5V ≤ VCC ≤ 5.5V, VREF = 5V, VIN(CM) = 2.5V (Note 6) l 2 10 ppm of VREF 2.7V ≤ VCC ≤ 5.5V, VREF = 2.5V, VIN(CM) = 1.2V (Note 6) l 1 ppm of VREF Offset Error 2.5V ≤ VREF ≤ VCC, GND ≤ IN+ = IN– ≤ VCC (Note 14) l 0.2 2 mV Offset Error Drift 2.5V ≤ VREF ≤ VCC, GND ≤ IN+ = IN– ≤ VCC 100 nV/°C Positive Full-Scale Error 2.5V ≤ VREF ≤ VCC, IN+ = 0.75VREF, IN– = 0.25VREF l 25 ppm of VREF Positive Full-Scale Error Drift 2.5V ≤ VREF ≤ VCC, IN+ = 0.75VREF, IN– = 0.25VREF 0.1 ppm of VREF/°C Negative Full-Scale Error 2.5V ≤ VREF ≤ VCC, IN+ = 0.25VREF, IN– = 0.75VREF l 25 ppm of VREF Negative Full-Scale Error Drift 2.5V ≤ VREF ≤ VCC, IN+ = 0.25VREF, IN– = 0.75VREF 0.1 ppm of VREF/°C Output Noise 5V ≤ VCC ≤ 2.5V, VREF = 5V, GND ≤ IN+ = IN– ≤ VCC 0.85 µVRMS
c onverTer characTerisTics The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. (Note 3) PARAMETER CONDITIONS MIN TYP MAX UNITS
Input Common Mode Rejection DC 2.5V ≤ VREF ≤ VCC, GND ≤ IN+ = IN– ≤ VCC (Note 5) l 140 dB Input Common Mode Rejection 50Hz ±2% 2.5V ≤ VREF ≤ VCC, GND ≤ IN+ = IN– ≤ VCC (Note 5) l 140 dB Input Common Mode Rejection 60Hz ±2% 2.5V ≤ VREF ≤ VCC, GND ≤ IN+ = IN– ≤ VCC (Note 5) l 140 dB Input Normal Mode Rejection 50Hz ±2% 2.5V ≤ VREF ≤ VCC, GND ≤ IN+ = IN– ≤ VCC (Notes 5, 7) l 110 120 dB Input Normal Mode Rejection 60Hz ±2% 2.5V ≤ VREF ≤ VCC, GND ≤ IN+ = IN– ≤ VCC (Notes 5, 8) l 110 120 dB Input Normal Mode Rejection 50Hz/60Hz ±2% 2.5V ≤ VREF ≤ VCC, GND ≤ IN+ = IN– ≤ VCC (Notes 5, 9) l 87 dB Reference Common Mode Rejection DC 2.5V ≤ VREF ≤ VCC, GND ≤ IN+ = IN– ≤ VCC (Note 5) l 120 140 dB Power Supply Rejection DC VREF = 2.5V, IN+ = IN– = GND 120 dB Power Supply Rejection, 50Hz ±2% VREF = 2.5V, IN+ = IN– = GND (Notes 7, 9) 120 dB Power Supply Rejection, 60Hz ±2% VREF = 2.5V, IN+ = IN– = GND (Notes 8, 9) 120 dB
analog inpuT anD reFerence The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. (Note 3) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
IN+ Absolute/Common Mode IN+ Voltage GND – 0.3V VCC + 0.3V V (IN+ Corresponds to the Selected Positive Input Channel) IN– Absolute/Common Mode IN– Voltage GND – 0.3V VCC + 0.3V V (IN– Corresponds to the Selected Negative Input Channel or COM) VIN Input Voltage Range (IN+ – IN–) Differential/Single-Ended l –FS +FS V FS Full Scale of the Input (IN+ – IN–) Differential/Single-Ended l 0.5VREF V LSB Least Significant Bit of the Output Code l FS/224 REF+ Absolute/Common Mode REF+ Voltage l 0.1 VCC V REF– Absolute/Common Mode REF– Voltage l GND REF+ – 0.1V V VREF Reference Voltage Range (REF+ – REF–) l 0.1 VCC V CS(IN+) IN+ Sampling Capacitance 11 pF CS(IN–) IN– Sampling Capacitance 11 pF 2492fe For more information www.linear.com/LTC2492 3 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Order Information Electrical Characteristics (Normal Speed) Pin Configuration Electrical Characteristics (2x Speed) Converter Characteristics Analog Input and Reference Digital Inputs and Digital Outputs Power Requirements Digital Inputs and Digital Outputs Typical Performance Characteristics Pin Functions Functional Block Diagram Test Circuits Timing Diagrams Applications Information Package Description Revision History Typical Application Related Parts
