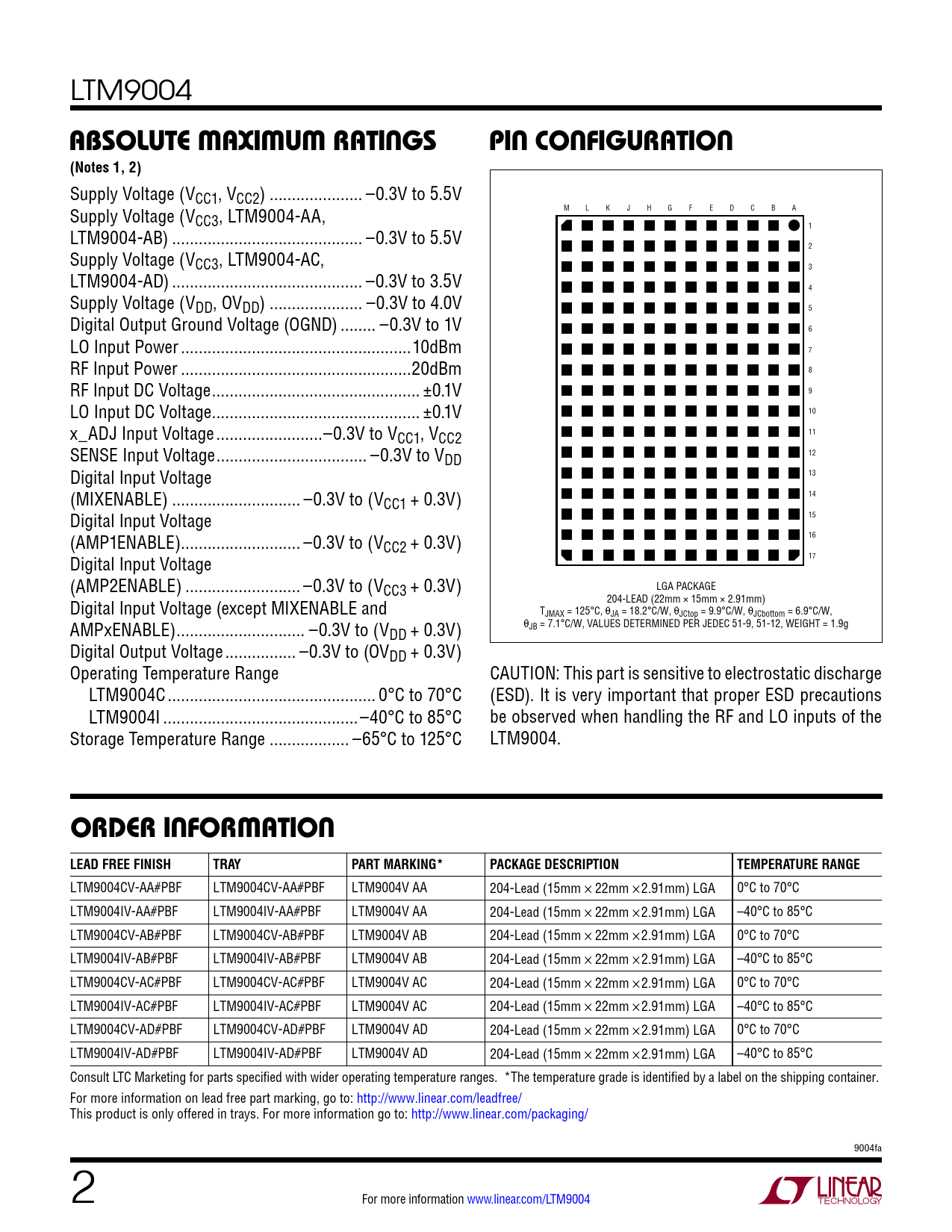

LTM9004
absoluTe MaxiMuM raTings pin conFiguraTion (Notes 1, 2)
Supply Voltage (VCC1, VCC2) ... –0.3V to 5.5V Supply Voltage (V M L K J H G F E D C B A CC3, LTM9004-AA, LTM9004-AB) ... –0.3V to 5.5V 1 2 Supply Voltage (VCC3, LTM9004-AC, 3 LTM9004-AD) ... –0.3V to 3.5V 4 Supply Voltage (VDD, OVDD) ... –0.3V to 4.0V 5 Digital Output Ground Voltage (OGND) .. –0.3V to 1V 6 LO Input Power ..10dBm 7 RF Input Power ..20dBm 8 RF Input DC Voltage ... ±0.1V 9 LO Input DC Voltage ... ±0.1V 10 x_ADJ Input Voltage ..–0.3V to VCC1, VCC2 11 SENSE Input Voltage .. –0.3V to VDD 12 Digital Input Voltage 13 (MIXENABLE) ... –0.3V to (V 14 CC1 + 0.3V) Digital Input Voltage 15 (AMP1ENABLE)... –0.3V to (V 16 CC2 + 0.3V) Digital Input Voltage 17 (AMP2ENABLE) .. –0.3V to (VCC3 + 0.3V) LGA PACKAGE Digital Input Voltage (except MIXENABLE and 204-LEAD (22mm × 15mm × 2.91mm) TJMAX = 125°C, θJA = 18.2°C/W, θJCtop = 9.9°C/W, θJCbottom = 6.9°C/W, AMPxENABLE) ... –0.3V to (V θ DD + 0.3V) JB = 7.1°C/W, VALUES DETERMINED PER JEDEC 51-9, 51-12, WEIGHT = 1.9g Digital Output Voltage .. –0.3V to (OVDD + 0.3V) Operating Temperature Range CAUTION: This part is sensitive to electrostatic discharge LTM9004C ... 0°C to 70°C (ESD). It is very important that proper ESD precautions LTM9004I ..–40°C to 85°C be observed when handling the RF and LO inputs of the Storage Temperature Range .. –65°C to 125°C LTM9004.
orDer inForMaTion LEAD FREE FINISH TRAY PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LTM9004CV-AA#PBF LTM9004CV-AA#PBF LTM9004V AA 204-Lead (15mm × 22mm × 2.91mm) LGA 0°C to 70°C LTM9004IV-AA#PBF LTM9004IV-AA#PBF LTM9004V AA 204-Lead (15mm × 22mm × 2.91mm) LGA –40°C to 85°C LTM9004CV-AB#PBF LTM9004CV-AB#PBF LTM9004V AB 204-Lead (15mm × 22mm × 2.91mm) LGA 0°C to 70°C LTM9004IV-AB#PBF LTM9004IV-AB#PBF LTM9004V AB 204-Lead (15mm × 22mm × 2.91mm) LGA –40°C to 85°C LTM9004CV-AC#PBF LTM9004CV-AC#PBF LTM9004V AC 204-Lead (15mm × 22mm × 2.91mm) LGA 0°C to 70°C LTM9004IV-AC#PBF LTM9004IV-AC#PBF LTM9004V AC 204-Lead (15mm × 22mm × 2.91mm) LGA –40°C to 85°C LTM9004CV-AD#PBF LTM9004CV-AD#PBF LTM9004V AD 204-Lead (15mm × 22mm × 2.91mm) LGA 0°C to 70°C LTM9004IV-AD#PBF LTM9004IV-AD#PBF LTM9004V AD 204-Lead (15mm × 22mm × 2.91mm) LGA –40°C to 85°C Consult LTC Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ This product is only offered in trays. For more information go to: http://www.linear.com/packaging/ 9004fa 2 For more information www.linear.com/LTM9004 Document Outline Features Description Applications Typical Application Absolute Maximum Ratings Order Information Pin Configuration Electrical Characteristics Dynamic Accuracy Converter Characteristics Digital Inputs and Outputs Power Requirements Timing Characteristics Timing Diagrams Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Package Description Revision History Typical Application Related Parts
