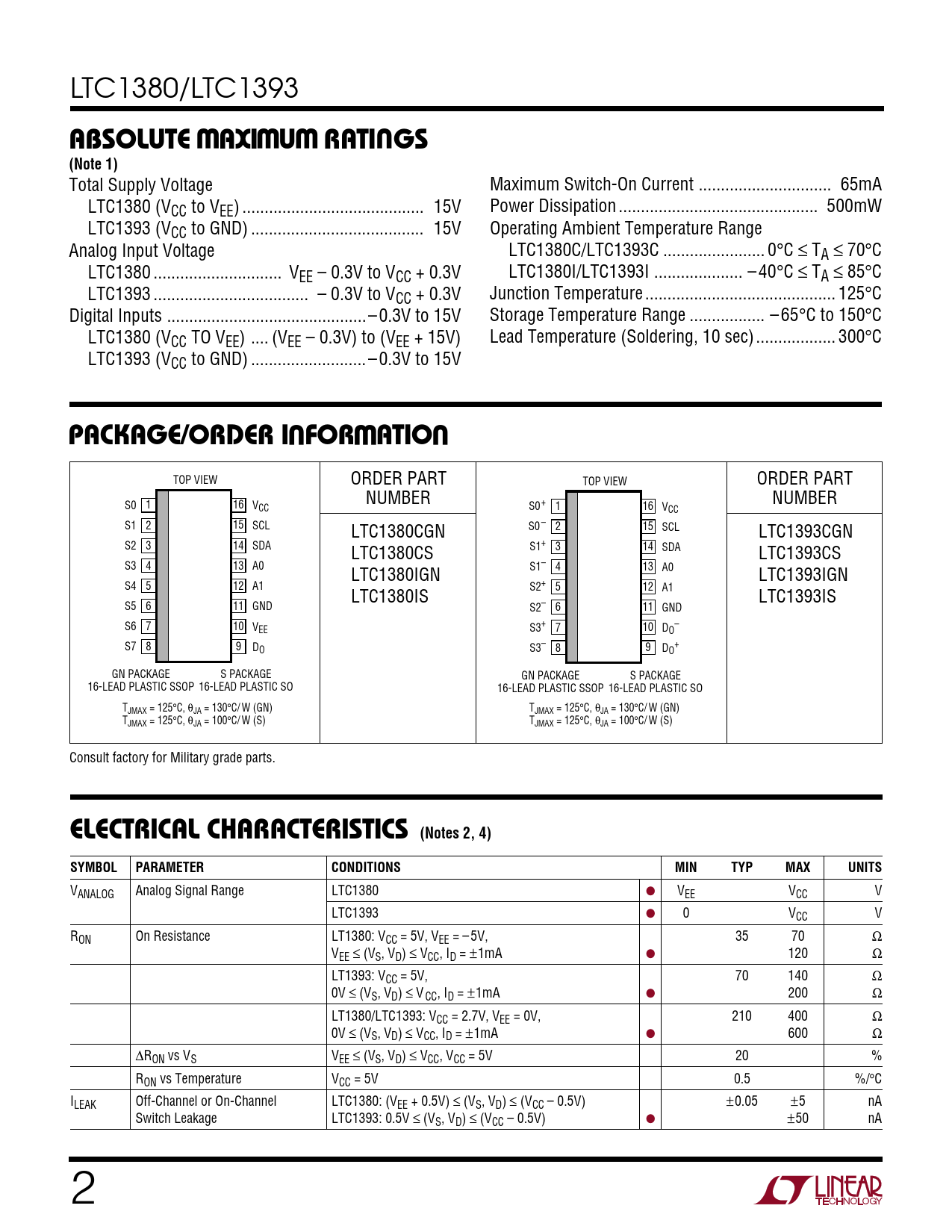

LTC1380/LTC1393
W W W U ABSOLUTE MAXIMUM RATINGS (Note 1)
Total Supply Voltage Maximum Switch-On Current .. 65mA LTC1380 (VCC to VEE) ... 15V Power Dissipation ... 500mW LTC1393 (VCC to GND) ... 15V Operating Ambient Temperature Range Analog Input Voltage LTC1380C/LTC1393C ... 0°C ≤ TA ≤ 70°C LTC1380 ... VEE – 0.3V to VCC + 0.3V LTC1380I/LTC1393I .. – 40°C ≤ TA ≤ 85°C LTC1393 ... – 0.3V to VCC + 0.3V Junction Temperature ... 125°C Digital Inputs ...– 0.3V to 15V Storage Temperature Range ... – 65°C to 150°C LTC1380 (VCC TO VEE) .. (VEE – 0.3V) to (VEE + 15V) Lead Temperature (Soldering, 10 sec) .. 300°C LTC1393 (VCC to GND) ..–0.3V to 15V
U W U PACKAGE/ORDER INFORMATION
TOP VIEW ORDER PART TOP VIEW ORDER PART NUMBER NUMBER S0 1 16 VCC S0+ 1 16 VCC S1 2 15 SCL LTC1380CGN S0 – 2 15 SCL LTC1393CGN S2 3 14 SDA LTC1380CS S1+ 3 14 SDA LTC1393CS S3 4 13 A0 LTC1380IGN S1– 4 13 A0 LTC1393IGN S4 5 12 A1 S2+ 5 12 A1 LTC1380IS LTC1393IS S5 6 11 GND S2– 6 11 GND S6 7 10 V – EE S3+ 7 10 DO S7 8 9 D + O S3– 8 9 DO GN PACKAGE S PACKAGE GN PACKAGE S PACKAGE 16-LEAD PLASTIC SSOP 16-LEAD PLASTIC SO 16-LEAD PLASTIC SSOP 16-LEAD PLASTIC SO TJMAX = 125°C, θJA = 130°C/ W (GN) TJMAX = 125°C, θJA = 130°C/ W (GN) TJMAX = 125°C, θJA = 100°C/ W (S) TJMAX = 125°C, θJA = 100°C/ W (S) Consult factory for Military grade parts.
ELECTRICAL CHARACTERISTICS (Notes 2, 4) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VANALOG Analog Signal Range LTC1380 ● VEE VCC V LTC1393 ● 0 VCC V RON On Resistance LT1380: VCC = 5V, VEE = – 5V, 35 70 Ω VEE ≤ (VS, VD) ≤ VCC, ID = ±1mA ● 120 Ω LT1393: VCC = 5V, 70 140 Ω 0V ≤ (VS, VD) ≤ V CC, ID = ±1mA ● 200 Ω LT1380/LTC1393: VCC = 2.7V, VEE = 0V, 210 400 Ω 0V ≤ (VS, VD) ≤ VCC, ID = ±1mA ● 600 Ω ∆RON vs VS VEE ≤ (VS, VD) ≤ VCC, VCC = 5V 20 % RON vs Temperature VCC = 5V 0.5 %/°C ILEAK Off-Channel or On-Channel LTC1380: (VEE + 0.5V) ≤ (VS, VD) ≤ (VCC – 0.5V) ±0.05 ±5 nA Switch Leakage LTC1393: 0.5V ≤ (VS, VD) ≤ (VCC – 0.5V) ● ±50 nA 2
