Datasheet LTC201A, LTC202, LTC203 (Analog Devices) - 9
| 制造商 | Analog Devices |
| 描述 | Micropower, Low Charge Injection, Quad CMOS Analog Switches |
| 页数 / 页 | 16 / 9 — APPLICATIO S I FOR ATIO. Ultra Low Noise, Low Drift Chopper Amplifier. … |
| 修订版 | LTC201A/LTC202/LTC203: Micropower, Low Charge Injection, Quad CMOS Analog Switches Data Sheet |
| 文件格式/大小 | PDF / 208 Kb |
| 文件语言 | 英语 |
APPLICATIO S I FOR ATIO. Ultra Low Noise, Low Drift Chopper Amplifier. Noise in a 0.1 to 10Hz Bandwidth
该数据表的模型线
文件文字版本
LTC201A/LTC202/LTC203

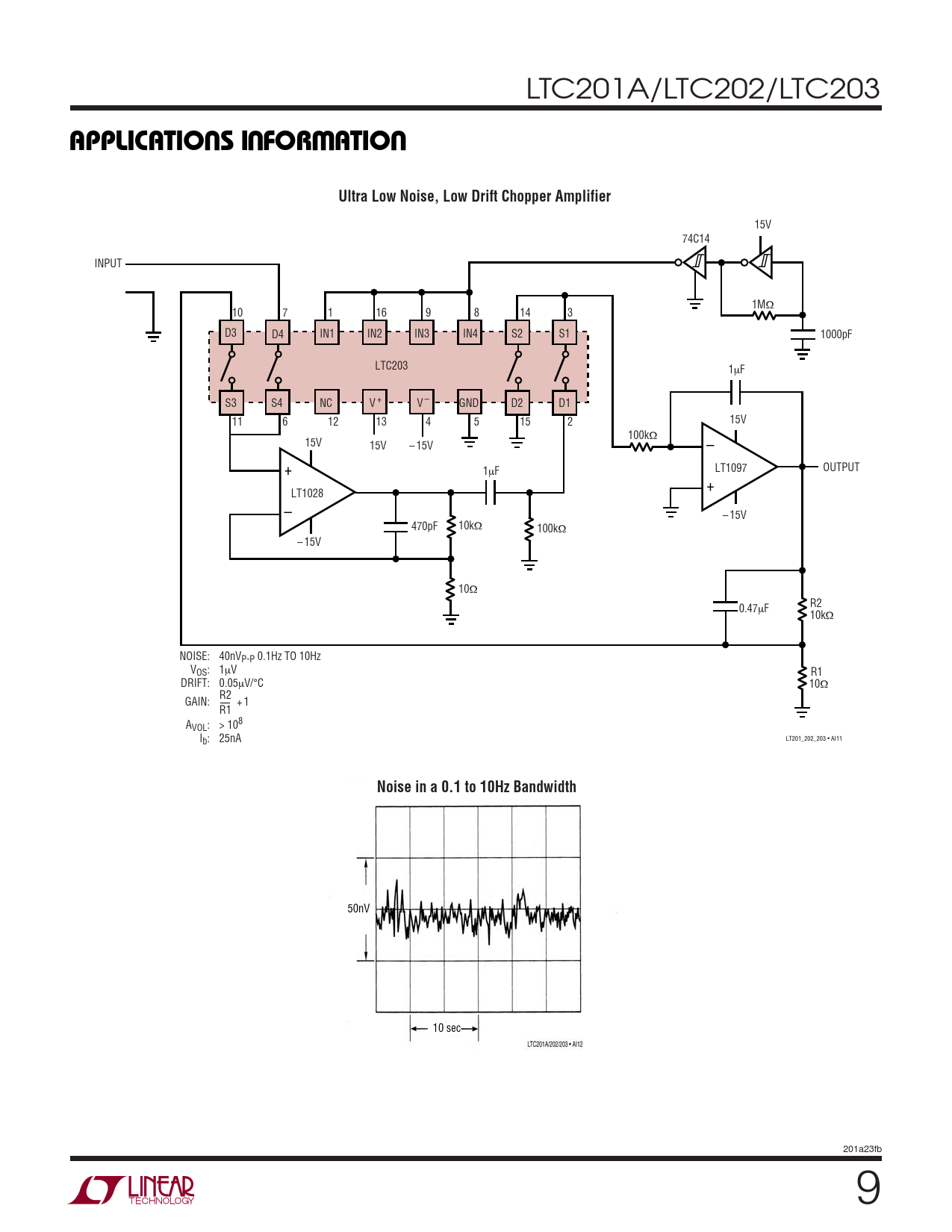

U U W U APPLICATIO S I FOR ATIO Ultra Low Noise, Low Drift Chopper Amplifier
15V 74C14 INPUT 1MΩ 10 7 1 16 9 8 14 3 D3 D4 IN1 IN2 IN3 IN4 S2 S1 1000pF LTC203 1µF S3 S4 NC V + V – GND D2 D1 11 6 12 13 4 5 15 2 15V 100kΩ – 15V 15V – 15V + 1µF LT1097 OUTPUT + LT1028 – – 15V 470pF 10kΩ 100kΩ – 15V 10Ω 0.47 R2 µF 10kΩ NOISE: 40nVP-P 0.1Hz TO 10Hz VOS: 1µV R1 DRIFT: 0.05µV/°C 10Ω R2 GAIN: + 1 R1 AVOL: > 108 LT201_202_203 • AI11 Ib: 25nA
Noise in a 0.1 to 10Hz Bandwidth
50nV 10 sec 201a23fb 9
