Datasheet LT1083, LT1084, LT1085 (Analog Devices) - 2
| 制造商 | Analog Devices |
| 描述 | 7.5A, 5A, 3A Low Dropout Positive Adjustable Regulators |
| 页数 / 页 | 22 / 2 — absoluTe MaxiMuM raTings (Note 1). (OBSOLETE). preconDiTioning. pin … |
| 文件格式/大小 | PDF / 293 Kb |
| 文件语言 | 英语 |
absoluTe MaxiMuM raTings (Note 1). (OBSOLETE). preconDiTioning. pin conFiguraTion. OBSOLETE PACKAGE
该数据表的模型线
文件文字版本

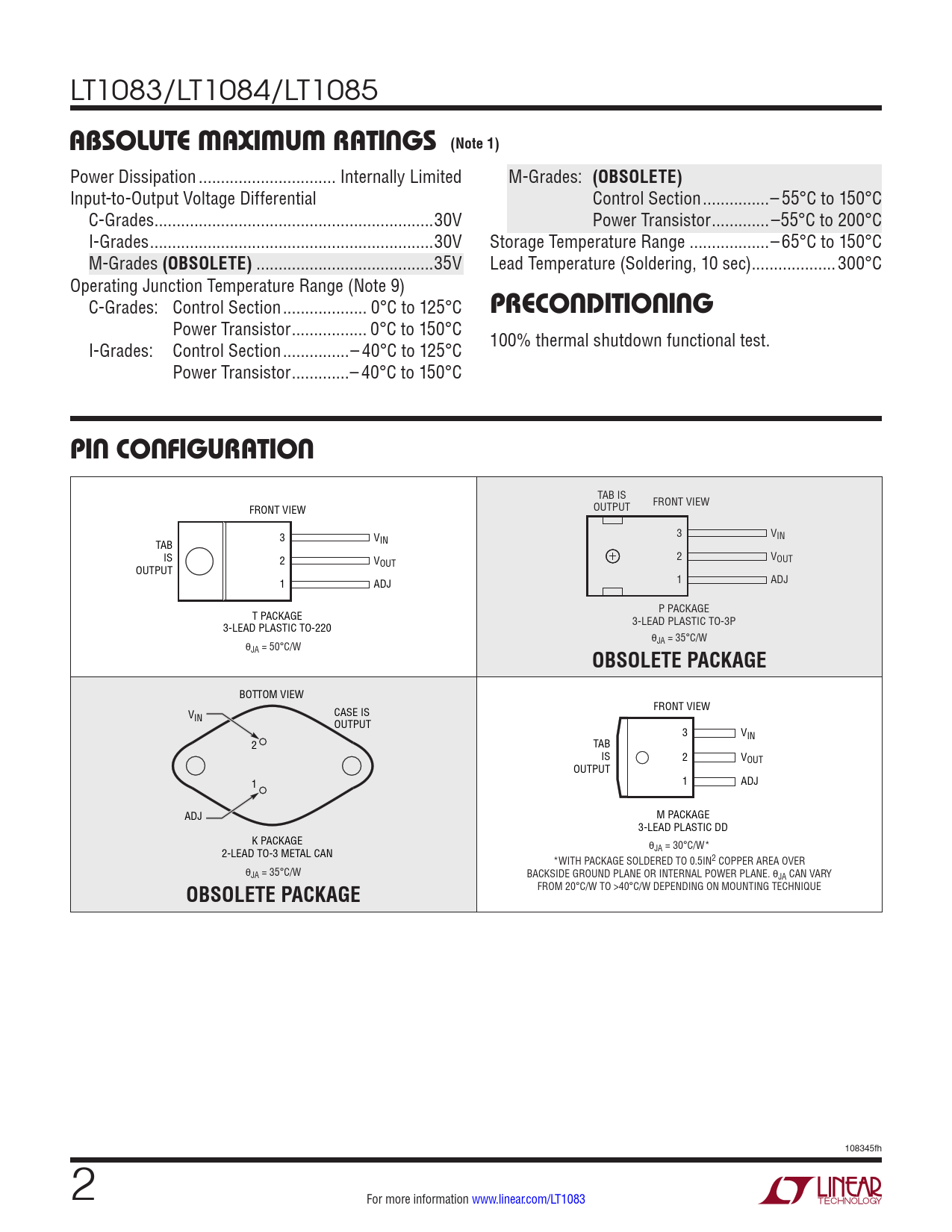

LT1083/LT1084/LT1085
absoluTe MaxiMuM raTings (Note 1)
Power Dissipation ... Internally Limited M-Grades:
(OBSOLETE)
Input-to-Output Voltage Differential Control Section ...– 55°C to 150°C C-Grades ...30V Power Transistor ...–55°C to 200°C I-Grades ..30V Storage Temperature Range ..–65°C to 150°C M-Grades
(OBSOLETE)
..35V Lead Temperature (Soldering, 10 sec) ...300°C Operating Junction Temperature Range (Note 9) C-Grades: Control Section ... 0°C to 125°C
preconDiTioning
Power Transistor ... 0°C to 150°C I-Grades: Control Section ...– 40°C to 125°C 100% thermal shutdown functional test. Power Transistor ...– 40°C to 150°C
pin conFiguraTion
TAB IS FRONT VIEW FRONT VIEW OUTPUT 3 V 3 VIN TAB IN IS 2 V 2 VOUT OUTPUT OUT 1 ADJ 1 ADJ P PACKAGE T PACKAGE 3-LEAD PLASTIC TO-3P 3-LEAD PLASTIC TO-220 θJA = 35°C/W θJA = 50°C/W
OBSOLETE PACKAGE
BOTTOM VIEW FRONT VIEW VIN CASE IS OUTPUT 3 VIN 2 TAB IS 2 VOUT OUTPUT 1 1 ADJ ADJ M PACKAGE 3-LEAD PLASTIC DD K PACKAGE 2-LEAD TO-3 METAL CAN θJA = 30°C/W* *WITH PACKAGE SOLDERED TO 0.5IN2 COPPER AREA OVER θJA = 35°C/W BACKSIDE GROUND PLANE OR INTERNAL POWER PLANE. θJA CAN VARY
OBSOLETE PACKAGE
FROM 20°C/W TO >40°C/W DEPENDING ON MOUNTING TECHNIQUE 108345fh 2 For more information www.linear.com/LT1083 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Block Diagram Applications Information Typical Application Package Description Revision History Typical Applications Related Parts
