Datasheet LT1086 (Analog Devices) - 3
| 制造商 | Analog Devices |
| 描述 | 1.5A Low Dropout Positive Regulators Adjustable and Fixed 2.85V, 3.3V, 3.6V, 5V, 12V |
| 页数 / 页 | 16 / 3 — ELECTRICAL CHARACTERISTICS The. denotes the specifications which apply … |
| 文件格式/大小 | PDF / 227 Kb |
| 文件语言 | 英语 |

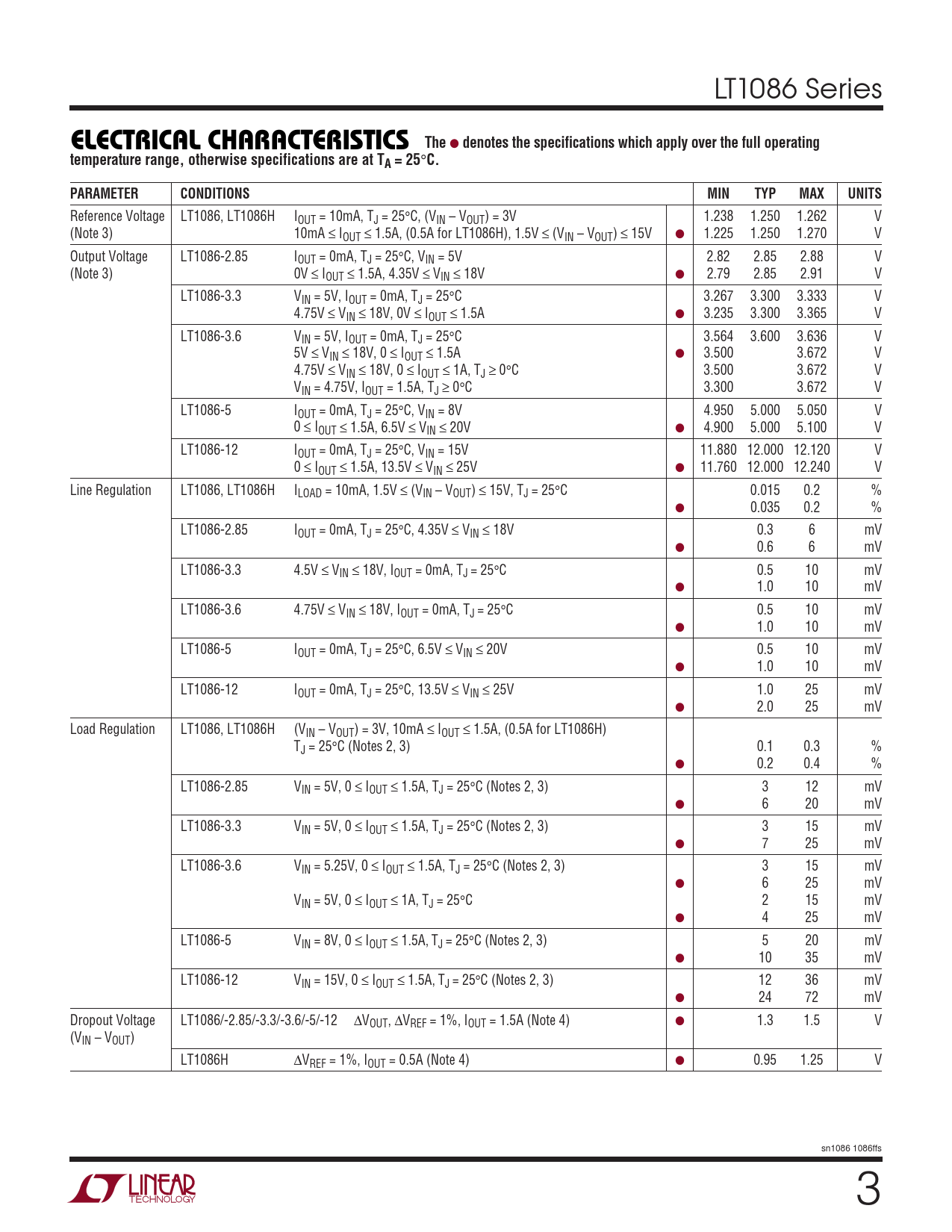

ELECTRICAL CHARACTERISTICS The. denotes the specifications which apply over the full operating
该数据表的模型线
- LT1086CM#PBF LT1086CM#PBF LT1086CM#TRPBF LT1086CM#TRPBF LT1086CM-3.3#PBF LT1086CM-3.3#PBF LT1086CM-3.3#TRPBF LT1086CM-3.3#TRPBF LT1086CM-3.6#PBF LT1086CM-3.6#PBF LT1086CM-3.6#TRPBF LT1086CM-3.6#TRPBF LT1086CT#PBF LT1086CT#PBF LT1086CT-12#PBF LT1086CT-12#PBF LT1086CT-2.85#PBF LT1086CT-2.85#PBF LT1086CT-3.3#PBF LT1086CT-3.3#PBF LT1086CT-3.6#PBF LT1086CT-3.6#PBF LT1086CT-5#PBF LT1086CT-5#PBF LT1086IM#PBF LT1086IM#PBF LT1086IM#TRPBF LT1086IM#TRPBF LT1086IM-3.3#PBF LT1086IM-3.3#PBF LT1086IM-3.3#TRPBF LT1086IM-3.3#TRPBF LT1086IT#36PBF LT1086IT#36PBF LT1086IT#PBF LT1086IT#PBF LT1086IT-12#PBF LT1086IT-12#PBF LT1086IT-3.3#PBF LT1086IT-3.3#PBF LT1086IT-5#PBF LT1086IT-5#PBF
文件文字版本
LT1086 Series
ELECTRICAL CHARACTERISTICS The
●
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25
°
C. PARAMETER CONDITIONS MIN TYP MAX UNITS
Reference Voltage LT1086, LT1086H IOUT = 10mA, TJ = 25°C, (VIN – VOUT) = 3V 1.238 1.250 1.262 V (Note 3) 10mA ≤ IOUT ≤ 1.5A, (0.5A for LT1086H), 1.5V ≤ (VIN – VOUT) ≤ 15V ● 1.225 1.250 1.270 V Output Voltage LT1086-2.85 IOUT = 0mA, TJ = 25°C, VIN = 5V 2.82 2.85 2.88 V (Note 3) 0V ≤ IOUT ≤ 1.5A, 4.35V ≤ VIN ≤ 18V ● 2.79 2.85 2.91 V LT1086-3.3 VIN = 5V, IOUT = 0mA, TJ = 25°C 3.267 3.300 3.333 V 4.75V ≤ VIN ≤ 18V, 0V ≤ IOUT ≤ 1.5A ● 3.235 3.300 3.365 V LT1086-3.6 VIN = 5V, IOUT = 0mA, TJ = 25°C 3.564 3.600 3.636 V 5V ≤ VIN ≤ 18V, 0 ≤ IOUT ≤ 1.5A ● 3.500 3.672 V 4.75V ≤ VIN ≤ 18V, 0 ≤ IOUT ≤ 1A, TJ ≥ 0°C 3.500 3.672 V VIN = 4.75V, IOUT = 1.5A, TJ ≥ 0°C 3.300 3.672 V LT1086-5 IOUT = 0mA, TJ = 25°C, VIN = 8V 4.950 5.000 5.050 V 0 ≤ IOUT ≤ 1.5A, 6.5V ≤ VIN ≤ 20V ● 4.900 5.000 5.100 V LT1086-12 IOUT = 0mA, TJ = 25°C, VIN = 15V 11.880 12.000 12.120 V 0 ≤ IOUT ≤ 1.5A, 13.5V ≤ VIN ≤ 25V ● 11.760 12.000 12.240 V Line Regulation LT1086, LT1086H ILOAD = 10mA, 1.5V ≤ (VIN – VOUT) ≤ 15V, TJ = 25°C 0.015 0.2 % ● 0.035 0.2 % LT1086-2.85 IOUT = 0mA, TJ = 25°C, 4.35V ≤ VIN ≤ 18V 0.3 6 mV ● 0.6 6 mV LT1086-3.3 4.5V ≤ VIN ≤ 18V, IOUT = 0mA, TJ = 25°C 0.5 10 mV ● 1.0 10 mV LT1086-3.6 4.75V ≤ VIN ≤ 18V, IOUT = 0mA, TJ = 25°C 0.5 10 mV ● 1.0 10 mV LT1086-5 IOUT = 0mA, TJ = 25°C, 6.5V ≤ VIN ≤ 20V 0.5 10 mV ● 1.0 10 mV LT1086-12 IOUT = 0mA, TJ = 25°C, 13.5V ≤ VIN ≤ 25V 1.0 25 mV ● 2.0 25 mV Load Regulation LT1086, LT1086H (VIN – VOUT) = 3V, 10mA ≤ IOUT ≤ 1.5A, (0.5A for LT1086H) TJ = 25°C (Notes 2, 3) 0.1 0.3 % ● 0.2 0.4 % LT1086-2.85 VIN = 5V, 0 ≤ IOUT ≤ 1.5A, TJ = 25°C (Notes 2, 3) 3 12 mV ● 6 20 mV LT1086-3.3 VIN = 5V, 0 ≤ IOUT ≤ 1.5A, TJ = 25°C (Notes 2, 3) 3 15 mV ● 7 25 mV LT1086-3.6 VIN = 5.25V, 0 ≤ IOUT ≤ 1.5A, TJ = 25°C (Notes 2, 3) 3 15 mV ● 6 25 mV VIN = 5V, 0 ≤ IOUT ≤ 1A, TJ = 25°C 2 15 mV ● 4 25 mV LT1086-5 VIN = 8V, 0 ≤ IOUT ≤ 1.5A, TJ = 25°C (Notes 2, 3) 5 20 mV ● 10 35 mV LT1086-12 VIN = 15V, 0 ≤ IOUT ≤ 1.5A, TJ = 25°C (Notes 2, 3) 12 36 mV ● 24 72 mV Dropout Voltage LT1086/-2.85/-3.3/-3.6/-5/-12 ∆VOUT, ∆VREF = 1%, IOUT = 1.5A (Note 4) ● 1.3 1.5 V (VIN – VOUT) LT1086H ∆VREF = 1%, IOUT = 0.5A (Note 4) ● 0.95 1.25 V sn1086 1086ffs 3
ELECTRICAL CHARACTERISTICS The
●
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25
°
C. PARAMETER CONDITIONS MIN TYP MAX UNITS
Reference Voltage LT1086, LT1086H IOUT = 10mA, TJ = 25°C, (VIN – VOUT) = 3V 1.238 1.250 1.262 V (Note 3) 10mA ≤ IOUT ≤ 1.5A, (0.5A for LT1086H), 1.5V ≤ (VIN – VOUT) ≤ 15V ● 1.225 1.250 1.270 V Output Voltage LT1086-2.85 IOUT = 0mA, TJ = 25°C, VIN = 5V 2.82 2.85 2.88 V (Note 3) 0V ≤ IOUT ≤ 1.5A, 4.35V ≤ VIN ≤ 18V ● 2.79 2.85 2.91 V LT1086-3.3 VIN = 5V, IOUT = 0mA, TJ = 25°C 3.267 3.300 3.333 V 4.75V ≤ VIN ≤ 18V, 0V ≤ IOUT ≤ 1.5A ● 3.235 3.300 3.365 V LT1086-3.6 VIN = 5V, IOUT = 0mA, TJ = 25°C 3.564 3.600 3.636 V 5V ≤ VIN ≤ 18V, 0 ≤ IOUT ≤ 1.5A ● 3.500 3.672 V 4.75V ≤ VIN ≤ 18V, 0 ≤ IOUT ≤ 1A, TJ ≥ 0°C 3.500 3.672 V VIN = 4.75V, IOUT = 1.5A, TJ ≥ 0°C 3.300 3.672 V LT1086-5 IOUT = 0mA, TJ = 25°C, VIN = 8V 4.950 5.000 5.050 V 0 ≤ IOUT ≤ 1.5A, 6.5V ≤ VIN ≤ 20V ● 4.900 5.000 5.100 V LT1086-12 IOUT = 0mA, TJ = 25°C, VIN = 15V 11.880 12.000 12.120 V 0 ≤ IOUT ≤ 1.5A, 13.5V ≤ VIN ≤ 25V ● 11.760 12.000 12.240 V Line Regulation LT1086, LT1086H ILOAD = 10mA, 1.5V ≤ (VIN – VOUT) ≤ 15V, TJ = 25°C 0.015 0.2 % ● 0.035 0.2 % LT1086-2.85 IOUT = 0mA, TJ = 25°C, 4.35V ≤ VIN ≤ 18V 0.3 6 mV ● 0.6 6 mV LT1086-3.3 4.5V ≤ VIN ≤ 18V, IOUT = 0mA, TJ = 25°C 0.5 10 mV ● 1.0 10 mV LT1086-3.6 4.75V ≤ VIN ≤ 18V, IOUT = 0mA, TJ = 25°C 0.5 10 mV ● 1.0 10 mV LT1086-5 IOUT = 0mA, TJ = 25°C, 6.5V ≤ VIN ≤ 20V 0.5 10 mV ● 1.0 10 mV LT1086-12 IOUT = 0mA, TJ = 25°C, 13.5V ≤ VIN ≤ 25V 1.0 25 mV ● 2.0 25 mV Load Regulation LT1086, LT1086H (VIN – VOUT) = 3V, 10mA ≤ IOUT ≤ 1.5A, (0.5A for LT1086H) TJ = 25°C (Notes 2, 3) 0.1 0.3 % ● 0.2 0.4 % LT1086-2.85 VIN = 5V, 0 ≤ IOUT ≤ 1.5A, TJ = 25°C (Notes 2, 3) 3 12 mV ● 6 20 mV LT1086-3.3 VIN = 5V, 0 ≤ IOUT ≤ 1.5A, TJ = 25°C (Notes 2, 3) 3 15 mV ● 7 25 mV LT1086-3.6 VIN = 5.25V, 0 ≤ IOUT ≤ 1.5A, TJ = 25°C (Notes 2, 3) 3 15 mV ● 6 25 mV VIN = 5V, 0 ≤ IOUT ≤ 1A, TJ = 25°C 2 15 mV ● 4 25 mV LT1086-5 VIN = 8V, 0 ≤ IOUT ≤ 1.5A, TJ = 25°C (Notes 2, 3) 5 20 mV ● 10 35 mV LT1086-12 VIN = 15V, 0 ≤ IOUT ≤ 1.5A, TJ = 25°C (Notes 2, 3) 12 36 mV ● 24 72 mV Dropout Voltage LT1086/-2.85/-3.3/-3.6/-5/-12 ∆VOUT, ∆VREF = 1%, IOUT = 1.5A (Note 4) ● 1.3 1.5 V (VIN – VOUT) LT1086H ∆VREF = 1%, IOUT = 0.5A (Note 4) ● 0.95 1.25 V sn1086 1086ffs 3
