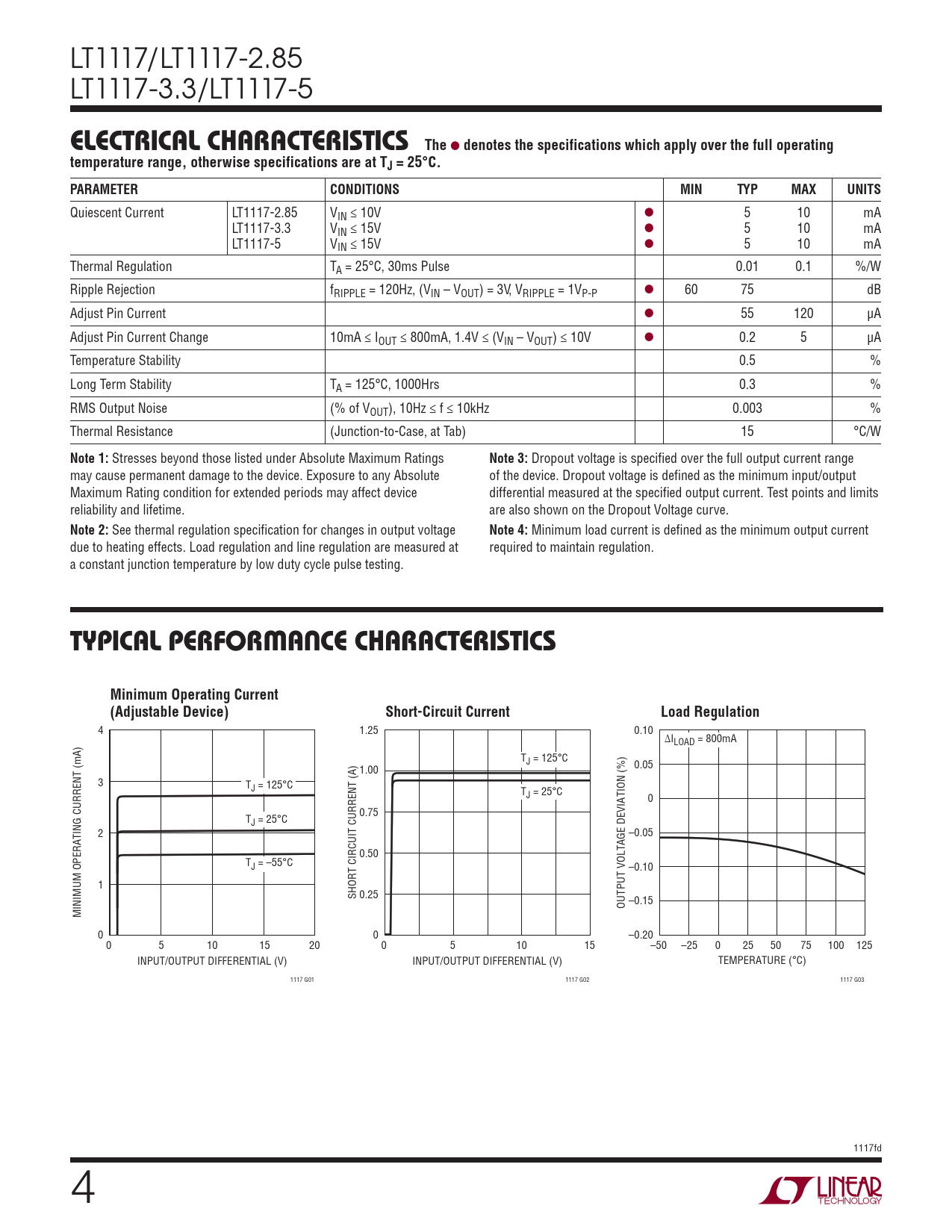

LT1117/LT1117-2.85 LT1117-3.3/LT1117-5
ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TJ = 25°C. PARAMETER CONDITIONS MIN TYP MAX UNITS
Quiescent Current LT1117-2.85 VIN ≤ 10V l 5 10 mA LT1117-3.3 VIN ≤ 15V l 5 10 mA LT1117-5 VIN ≤ 15V l 5 10 mA Thermal Regulation TA = 25°C, 30ms Pulse 0.01 0.1 %/W Ripple Rejection fRIPPLE = 120Hz, (VIN – VOUT) = 3V, VRIPPLE = 1VP-P l 60 75 dB Adjust Pin Current l 55 120 μA Adjust Pin Current Change 10mA ≤ IOUT ≤ 800mA, 1.4V ≤ (VIN – VOUT) ≤ 10V l 0.2 5 μA Temperature Stability 0.5 % Long Term Stability TA = 125°C, 1000Hrs 0.3 % RMS Output Noise (% of VOUT), 10Hz ≤ f ≤ 10kHz 0.003 % Thermal Resistance (Junction-to-Case, at Tab) 15 °C/W
Note 1:
Stresses beyond those listed under Absolute Maximum Ratings
Note 3:
Dropout voltage is specified over the full output current range may cause permanent damage to the device. Exposure to any Absolute of the device. Dropout voltage is defined as the minimum input/output Maximum Rating condition for extended periods may affect device differential measured at the specified output current. Test points and limits reliability and lifetime. are also shown on the Dropout Voltage curve.
Note 2:
See thermal regulation specification for changes in output voltage
Note 4:
Minimum load current is defined as the minimum output current due to heating effects. Load regulation and line regulation are measured at required to maintain regulation. a constant junction temperature by low duty cycle pulse testing.
TYPICAL PERFORMANCE CHARACTERISTICS Minimum Operating Current (Adjustable Device) Short-Circuit Current Load Regulation
4 1.25 0.10 ΔILOAD = 800mA TJ = 125°C 0.05 1.00 3 TJ = 125°C TJ = 25°C 0 0.75 TJ = 25°C 2 –0.05 0.50 TJ = –55°C –0.10 1 SHORT CIRCUIT CURRENT (A) 0.25 OUTPUT VOLTAGE DEVIATION (%) –0.15 MINIMUM OPERATING CURRENT (mA) 0 0 –0.20 0 5 10 15 20 0 5 10 15 –50 –25 0 25 50 75 100 125 INPUT/OUTPUT DIFFERENTIAL (V) INPUT/OUTPUT DIFFERENTIAL (V) TEMPERATURE (°C) 1117 G01 1117 G02 1117 G03 1117fd 4
ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TJ = 25°C. PARAMETER CONDITIONS MIN TYP MAX UNITS
Quiescent Current LT1117-2.85 VIN ≤ 10V l 5 10 mA LT1117-3.3 VIN ≤ 15V l 5 10 mA LT1117-5 VIN ≤ 15V l 5 10 mA Thermal Regulation TA = 25°C, 30ms Pulse 0.01 0.1 %/W Ripple Rejection fRIPPLE = 120Hz, (VIN – VOUT) = 3V, VRIPPLE = 1VP-P l 60 75 dB Adjust Pin Current l 55 120 μA Adjust Pin Current Change 10mA ≤ IOUT ≤ 800mA, 1.4V ≤ (VIN – VOUT) ≤ 10V l 0.2 5 μA Temperature Stability 0.5 % Long Term Stability TA = 125°C, 1000Hrs 0.3 % RMS Output Noise (% of VOUT), 10Hz ≤ f ≤ 10kHz 0.003 % Thermal Resistance (Junction-to-Case, at Tab) 15 °C/W
Note 1:
Stresses beyond those listed under Absolute Maximum Ratings
Note 3:
Dropout voltage is specified over the full output current range may cause permanent damage to the device. Exposure to any Absolute of the device. Dropout voltage is defined as the minimum input/output Maximum Rating condition for extended periods may affect device differential measured at the specified output current. Test points and limits reliability and lifetime. are also shown on the Dropout Voltage curve.
Note 2:
See thermal regulation specification for changes in output voltage
Note 4:
Minimum load current is defined as the minimum output current due to heating effects. Load regulation and line regulation are measured at required to maintain regulation. a constant junction temperature by low duty cycle pulse testing.
TYPICAL PERFORMANCE CHARACTERISTICS Minimum Operating Current (Adjustable Device) Short-Circuit Current Load Regulation
4 1.25 0.10 ΔILOAD = 800mA TJ = 125°C 0.05 1.00 3 TJ = 125°C TJ = 25°C 0 0.75 TJ = 25°C 2 –0.05 0.50 TJ = –55°C –0.10 1 SHORT CIRCUIT CURRENT (A) 0.25 OUTPUT VOLTAGE DEVIATION (%) –0.15 MINIMUM OPERATING CURRENT (mA) 0 0 –0.20 0 5 10 15 20 0 5 10 15 –50 –25 0 25 50 75 100 125 INPUT/OUTPUT DIFFERENTIAL (V) INPUT/OUTPUT DIFFERENTIAL (V) TEMPERATURE (°C) 1117 G01 1117 G02 1117 G03 1117fd 4
