LT1761 Series

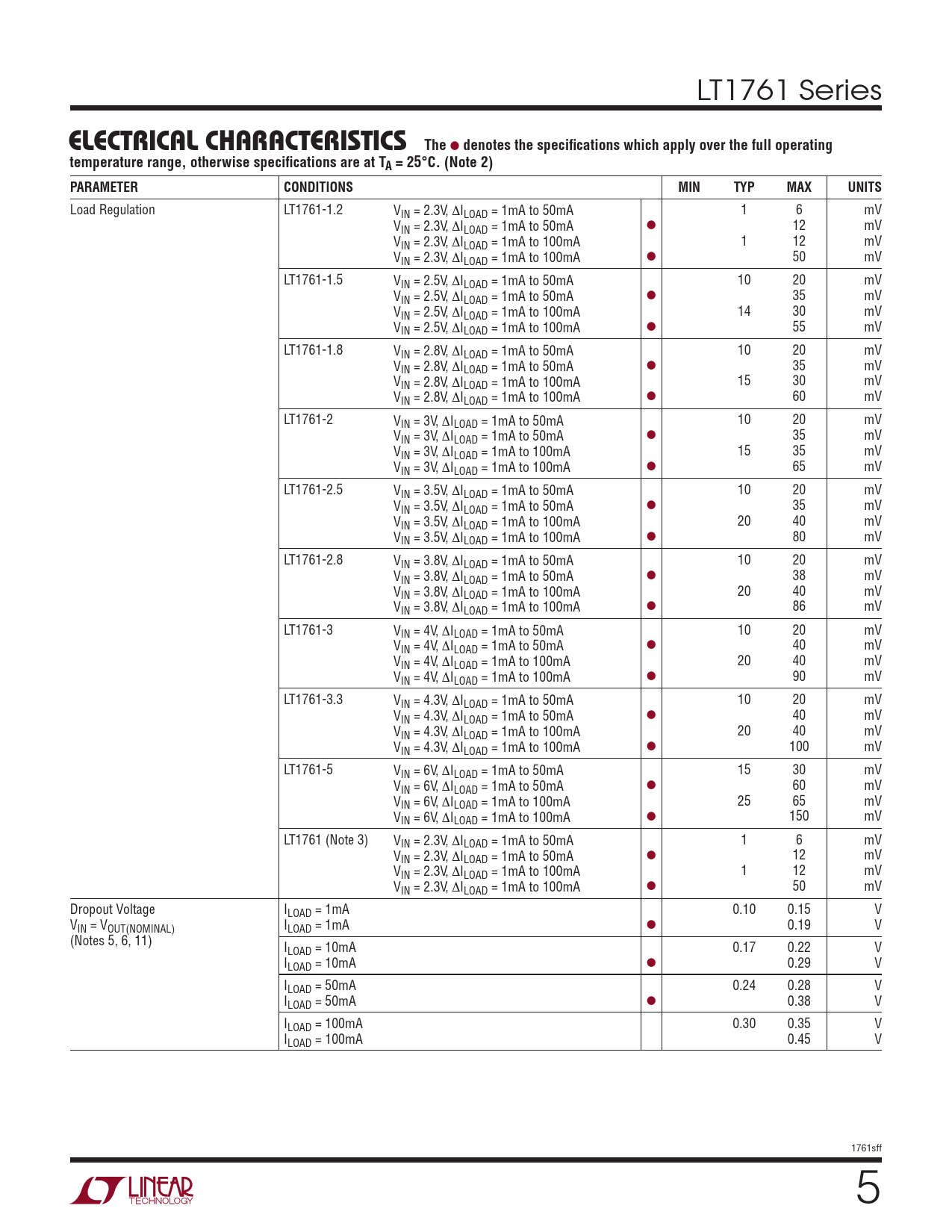

ELECTRICAL CHARACTERISTICS The
l
denotes the specifi cations which apply over the full operating temperature range, otherwise specifi cations are at TA = 25°C. (Note 2) PARAMETER CONDITIONS MIN TYP MAX UNITS
Load Regulation LT1761-1.2 VIN = 2.3V, ΔILOAD = 1mA to 50mA 1 6 mV l VIN = 2.3V, ΔILOAD = 1mA to 50mA 12 mV VIN = 2.3V, ΔILOAD = 1mA to 100mA 1 12 mV V l IN = 2.3V, ΔILOAD = 1mA to 100mA 50 mV LT1761-1.5 VIN = 2.5V, ΔILOAD = 1mA to 50mA 10 20 mV V l IN = 2.5V, ΔILOAD = 1mA to 50mA 35 mV VIN = 2.5V, ΔILOAD = 1mA to 100mA 14 30 mV V l IN = 2.5V, ΔILOAD = 1mA to 100mA 55 mV LT1761-1.8 VIN = 2.8V, ΔILOAD = 1mA to 50mA 10 20 mV V l IN = 2.8V, ΔILOAD = 1mA to 50mA 35 mV VIN = 2.8V, ΔILOAD = 1mA to 100mA 15 30 mV V l IN = 2.8V, ΔILOAD = 1mA to 100mA 60 mV LT1761-2 VIN = 3V, ΔILOAD = 1mA to 50mA 10 20 mV V l IN = 3V, ΔILOAD = 1mA to 50mA 35 mV VIN = 3V, ΔILOAD = 1mA to 100mA 15 35 mV V l IN = 3V, ΔILOAD = 1mA to 100mA 65 mV LT1761-2.5 VIN = 3.5V, ΔILOAD = 1mA to 50mA 10 20 mV V l IN = 3.5V, ΔILOAD = 1mA to 50mA 35 mV VIN = 3.5V, ΔILOAD = 1mA to 100mA 20 40 mV V l IN = 3.5V, ΔILOAD = 1mA to 100mA 80 mV LT1761-2.8 VIN = 3.8V, ΔILOAD = 1mA to 50mA 10 20 mV V l IN = 3.8V, ΔILOAD = 1mA to 50mA 38 mV VIN = 3.8V, ΔILOAD = 1mA to 100mA 20 40 mV V l IN = 3.8V, ΔILOAD = 1mA to 100mA 86 mV LT1761-3 VIN = 4V, ΔILOAD = 1mA to 50mA 10 20 mV V l IN = 4V, ΔILOAD = 1mA to 50mA 40 mV VIN = 4V, ΔILOAD = 1mA to 100mA 20 40 mV V l IN = 4V, ΔILOAD = 1mA to 100mA 90 mV LT1761-3.3 VIN = 4.3V, ΔILOAD = 1mA to 50mA 10 20 mV V l IN = 4.3V, ΔILOAD = 1mA to 50mA 40 mV VIN = 4.3V, ΔILOAD = 1mA to 100mA 20 40 mV V l IN = 4.3V, ΔILOAD = 1mA to 100mA 100 mV LT1761-5 VIN = 6V, ΔILOAD = 1mA to 50mA 15 30 mV V l IN = 6V, ΔILOAD = 1mA to 50mA 60 mV VIN = 6V, ΔILOAD = 1mA to 100mA 25 65 mV V l IN = 6V, ΔILOAD = 1mA to 100mA 150 mV LT1761 (Note 3) VIN = 2.3V, ΔILOAD = 1mA to 50mA 1 6 mV V l IN = 2.3V, ΔILOAD = 1mA to 50mA 12 mV VIN = 2.3V, ΔILOAD = 1mA to 100mA 1 12 mV V l IN = 2.3V, ΔILOAD = 1mA to 100mA 50 mV Dropout Voltage ILOAD = 1mA 0.10 0.15 V VIN = VOUT(NOMINAL) ILOAD = 1mA l 0.19 V (Notes 5, 6, 11) ILOAD = 10mA 0.17 0.22 V ILOAD = 10mA l 0.29 V ILOAD = 50mA 0.24 0.28 V ILOAD = 50mA l 0.38 V ILOAD = 100mA 0.30 0.35 V ILOAD = 100mA 0.45 V 1761sff 5 Document Outline FEATURES DESCRIPTION APPLICATIONS TYPICAL APPLICATION ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION ORDER INFORMATION ELECTRICAL CHARACTERISTICS TYPICAL PERFORMANCE CHARACTERISTICS PIN FUNCTIONS APPLICATIONS INFORMATION PACKAGE DESCRIPTION REVISION HISTORY TYPICAL APPLICATION RELATED PARTS
ELECTRICAL CHARACTERISTICS The
l
denotes the specifi cations which apply over the full operating temperature range, otherwise specifi cations are at TA = 25°C. (Note 2) PARAMETER CONDITIONS MIN TYP MAX UNITS
Load Regulation LT1761-1.2 VIN = 2.3V, ΔILOAD = 1mA to 50mA 1 6 mV l VIN = 2.3V, ΔILOAD = 1mA to 50mA 12 mV VIN = 2.3V, ΔILOAD = 1mA to 100mA 1 12 mV V l IN = 2.3V, ΔILOAD = 1mA to 100mA 50 mV LT1761-1.5 VIN = 2.5V, ΔILOAD = 1mA to 50mA 10 20 mV V l IN = 2.5V, ΔILOAD = 1mA to 50mA 35 mV VIN = 2.5V, ΔILOAD = 1mA to 100mA 14 30 mV V l IN = 2.5V, ΔILOAD = 1mA to 100mA 55 mV LT1761-1.8 VIN = 2.8V, ΔILOAD = 1mA to 50mA 10 20 mV V l IN = 2.8V, ΔILOAD = 1mA to 50mA 35 mV VIN = 2.8V, ΔILOAD = 1mA to 100mA 15 30 mV V l IN = 2.8V, ΔILOAD = 1mA to 100mA 60 mV LT1761-2 VIN = 3V, ΔILOAD = 1mA to 50mA 10 20 mV V l IN = 3V, ΔILOAD = 1mA to 50mA 35 mV VIN = 3V, ΔILOAD = 1mA to 100mA 15 35 mV V l IN = 3V, ΔILOAD = 1mA to 100mA 65 mV LT1761-2.5 VIN = 3.5V, ΔILOAD = 1mA to 50mA 10 20 mV V l IN = 3.5V, ΔILOAD = 1mA to 50mA 35 mV VIN = 3.5V, ΔILOAD = 1mA to 100mA 20 40 mV V l IN = 3.5V, ΔILOAD = 1mA to 100mA 80 mV LT1761-2.8 VIN = 3.8V, ΔILOAD = 1mA to 50mA 10 20 mV V l IN = 3.8V, ΔILOAD = 1mA to 50mA 38 mV VIN = 3.8V, ΔILOAD = 1mA to 100mA 20 40 mV V l IN = 3.8V, ΔILOAD = 1mA to 100mA 86 mV LT1761-3 VIN = 4V, ΔILOAD = 1mA to 50mA 10 20 mV V l IN = 4V, ΔILOAD = 1mA to 50mA 40 mV VIN = 4V, ΔILOAD = 1mA to 100mA 20 40 mV V l IN = 4V, ΔILOAD = 1mA to 100mA 90 mV LT1761-3.3 VIN = 4.3V, ΔILOAD = 1mA to 50mA 10 20 mV V l IN = 4.3V, ΔILOAD = 1mA to 50mA 40 mV VIN = 4.3V, ΔILOAD = 1mA to 100mA 20 40 mV V l IN = 4.3V, ΔILOAD = 1mA to 100mA 100 mV LT1761-5 VIN = 6V, ΔILOAD = 1mA to 50mA 15 30 mV V l IN = 6V, ΔILOAD = 1mA to 50mA 60 mV VIN = 6V, ΔILOAD = 1mA to 100mA 25 65 mV V l IN = 6V, ΔILOAD = 1mA to 100mA 150 mV LT1761 (Note 3) VIN = 2.3V, ΔILOAD = 1mA to 50mA 1 6 mV V l IN = 2.3V, ΔILOAD = 1mA to 50mA 12 mV VIN = 2.3V, ΔILOAD = 1mA to 100mA 1 12 mV V l IN = 2.3V, ΔILOAD = 1mA to 100mA 50 mV Dropout Voltage ILOAD = 1mA 0.10 0.15 V VIN = VOUT(NOMINAL) ILOAD = 1mA l 0.19 V (Notes 5, 6, 11) ILOAD = 10mA 0.17 0.22 V ILOAD = 10mA l 0.29 V ILOAD = 50mA 0.24 0.28 V ILOAD = 50mA l 0.38 V ILOAD = 100mA 0.30 0.35 V ILOAD = 100mA 0.45 V 1761sff 5 Document Outline FEATURES DESCRIPTION APPLICATIONS TYPICAL APPLICATION ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION ORDER INFORMATION ELECTRICAL CHARACTERISTICS TYPICAL PERFORMANCE CHARACTERISTICS PIN FUNCTIONS APPLICATIONS INFORMATION PACKAGE DESCRIPTION REVISION HISTORY TYPICAL APPLICATION RELATED PARTS
