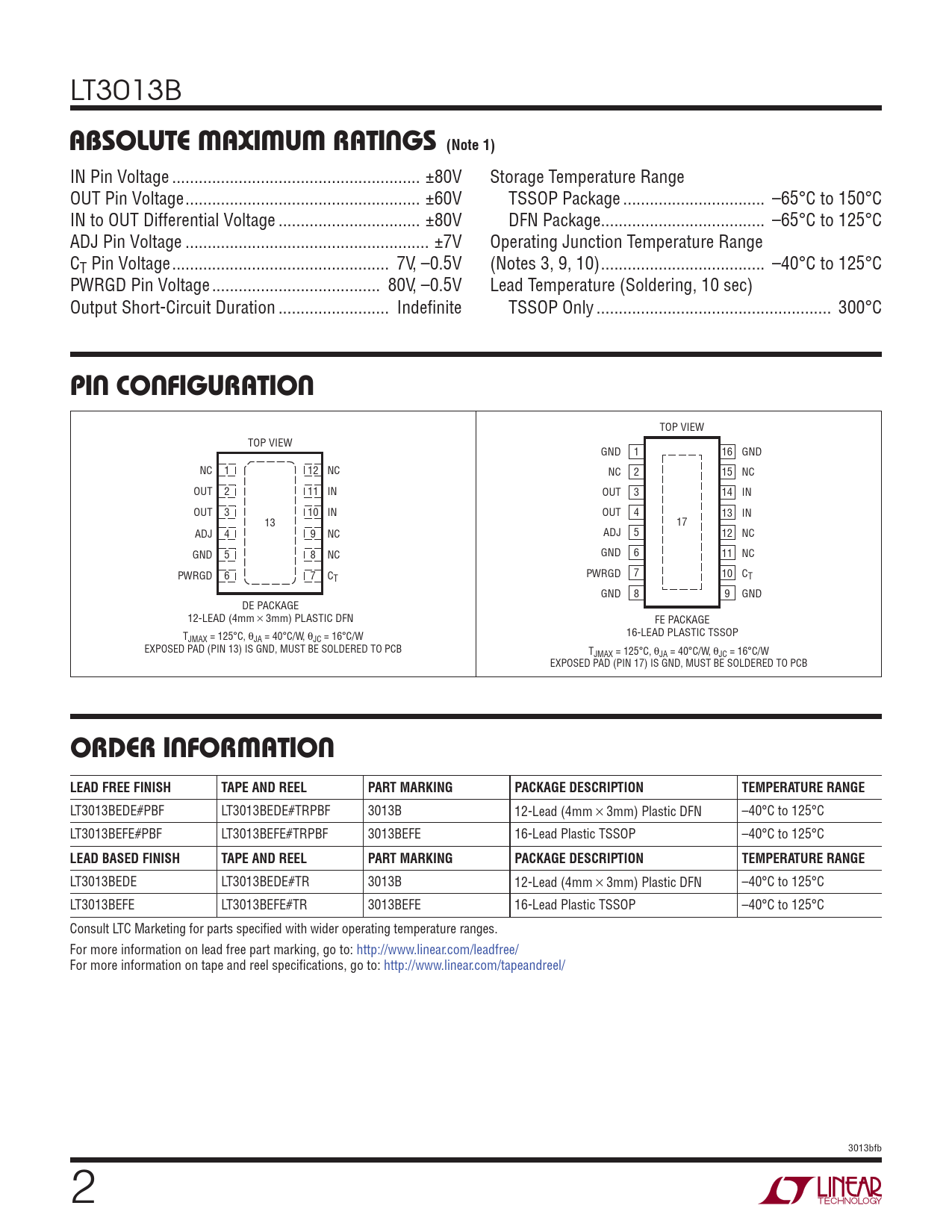

LT3013B
ABSOLUTE MAXIMUM RATINGS (Note 1)
IN Pin Voltage .. ±80V Storage Temperature Range OUT Pin Voltage ... ±60V TSSOP Package .. –65°C to 150°C IN to OUT Differential Voltage .. ±80V DFN Package ... –65°C to 125°C ADJ Pin Voltage ... ±7V Operating Junction Temperature Range CT Pin Voltage ... 7V, –0.5V (Notes 3, 9, 10) ... –40°C to 125°C PWRGD Pin Voltage .. 80V, –0.5V Lead Temperature (Soldering, 10 sec) Output Short-Circuit Duration ... Indefi nite TSSOP Only ... 300°C
PIN CONFIGURATION
TOP VIEW TOP VIEW GND 1 16 GND NC 1 12 NC NC 2 15 NC OUT 2 11 IN OUT 3 14 IN OUT 3 10 IN OUT 4 13 IN 13 17 ADJ 4 9 NC ADJ 5 12 NC GND 5 8 NC GND 6 11 NC PWRGD 6 7 C PWRGD 7 10 C T T GND 8 9 GND DE PACKAGE 12-LEAD (4mm s 3mm) PLASTIC DFN FE PACKAGE T 16-LEAD PLASTIC TSSOP JMAX = 125°C, θJA = 40°C/W, θJC = 16°C/W EXPOSED PAD (PIN 13) IS GND, MUST BE SOLDERED TO PCB TJMAX = 125°C, θJA = 40°C/W, θJC = 16°C/W EXPOSED PAD (PIN 17) IS GND, MUST BE SOLDERED TO PCB
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION TEMPERATURE RANGE
LT3013BEDE#PBF LT3013BEDE#TRPBF 3013B 12-Lead (4mm × 3mm) Plastic DFN –40°C to 125°C LT3013BEFE#PBF LT3013BEFE#TRPBF 3013BEFE 16-Lead Plastic TSSOP –40°C to 125°C
LEAD BASED FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION TEMPERATURE RANGE
LT3013BEDE LT3013BEDE#TR 3013B 12-Lead (4mm × 3mm) Plastic DFN –40°C to 125°C LT3013BEFE LT3013BEFE#TR 3013BEFE 16-Lead Plastic TSSOP –40°C to 125°C Consult LTC Marketing for parts specifi ed with wider operating temperature ranges. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifi cations, go to: http://www.linear.com/tapeandreel/ 3013bfb 2
