Datasheet LT3464 (Analog Devices) - 7
| 制造商 | Analog Devices |
| 描述 | Micropower Boost Converter with Integrated Schottky and Output Disconnect in ThinSOT |
| 页数 / 页 | 16 / 7 — SWITCHI G TI E WAVEFOR S. Operating Waveforms. Start up Waveforms. … |
| 文件格式/大小 | PDF / 255 Kb |
| 文件语言 | 英语 |

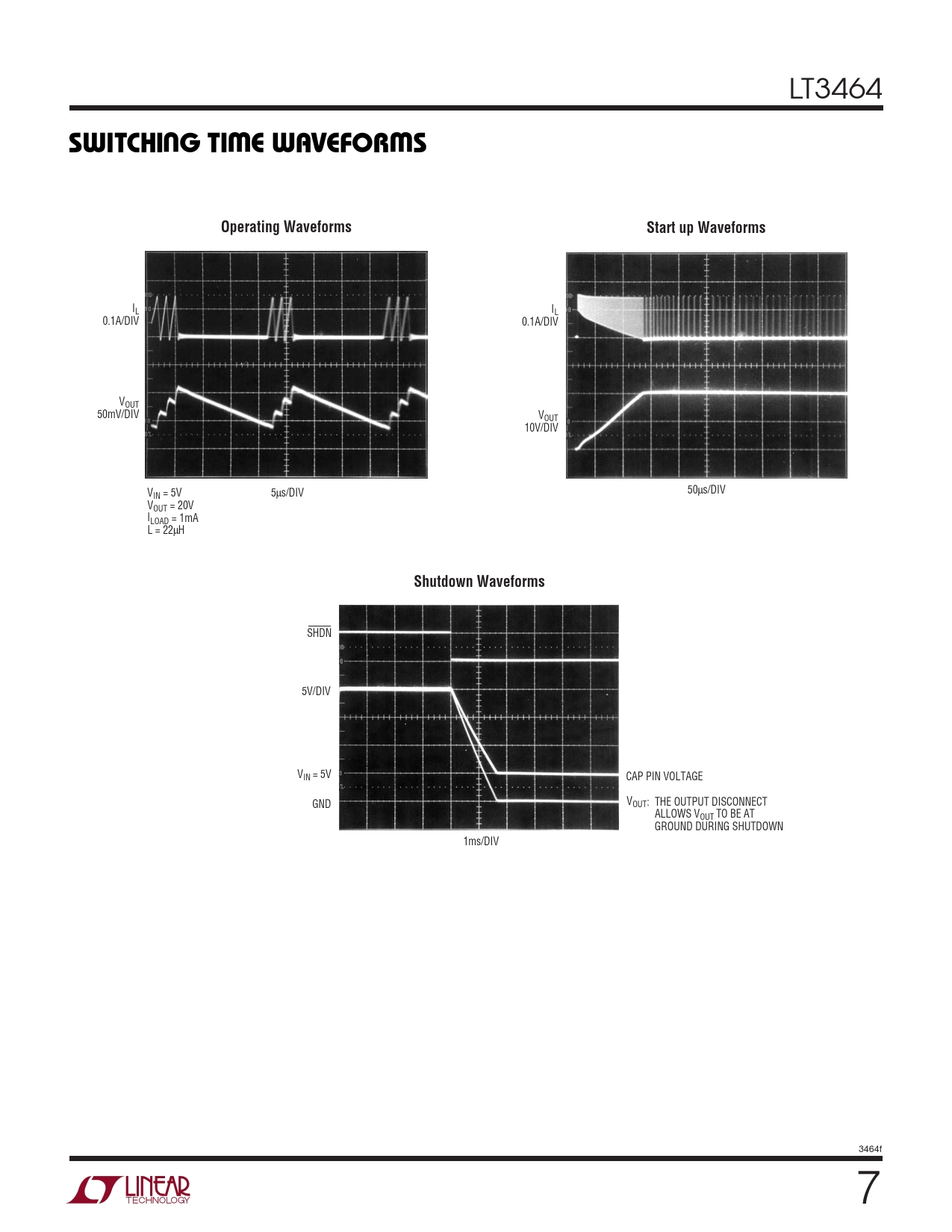

SWITCHI G TI E WAVEFOR S. Operating Waveforms. Start up Waveforms. Shutdown Waveforms
该数据表的模型线
文件文字版本
LT3464
U W W SWITCHI G TI E WAVEFOR S Operating Waveforms Start up Waveforms
IL IL 0.1A/DIV 0.1A/DIV VOUT 50mV/DIV VOUT 10V/DIV 5µs/DIV 50µs/DIV VIN = 5V VOUT = 20V ILOAD = 1mA L = 22µH
Shutdown Waveforms
SHDN 5V/DIV VIN = 5V CAP PIN VOLTAGE GND VOUT: THE OUTPUT DISCONNECT ALLOWS VOUT TO BE AT GROUND DURING SHUTDOWN 1ms/DIV 3464f 7
