Datasheet LTC3106 (Analog Devices) - 2
| 制造商 | Analog Devices |
| 描述 | 300mA Low Voltage Buck-Boost Converter with PowerPath and 1.6μA Quiescent Current |
| 页数 / 页 | 38 / 2 — absoluTe MaxiMuM raTings (Notes 1, 6). pin conFiguraTion. orDer … |
| 文件格式/大小 | PDF / 1.8 Mb |
| 文件语言 | 英语 |
absoluTe MaxiMuM raTings (Notes 1, 6). pin conFiguraTion. orDer inForMaTion LEAD FREE FINISH. TAPE AND REEL. PART MARKING*
该数据表的模型线
文件文字版本
LTC3106
absoluTe MaxiMuM raTings (Notes 1, 6)
Supply Voltages Storage Temperature Range .. –65°C to 150°C VIN, VSTORE, VOUT, VCAP ... –0.3V to 6V Lead Temperature (Soldering, 10 sec) Al Other Pins ... –0.3V to 6V FE Package ...300°C Operating Junction Temperature Range (Notes 2, 3) .. –40°C to 125°C
pin conFiguraTion

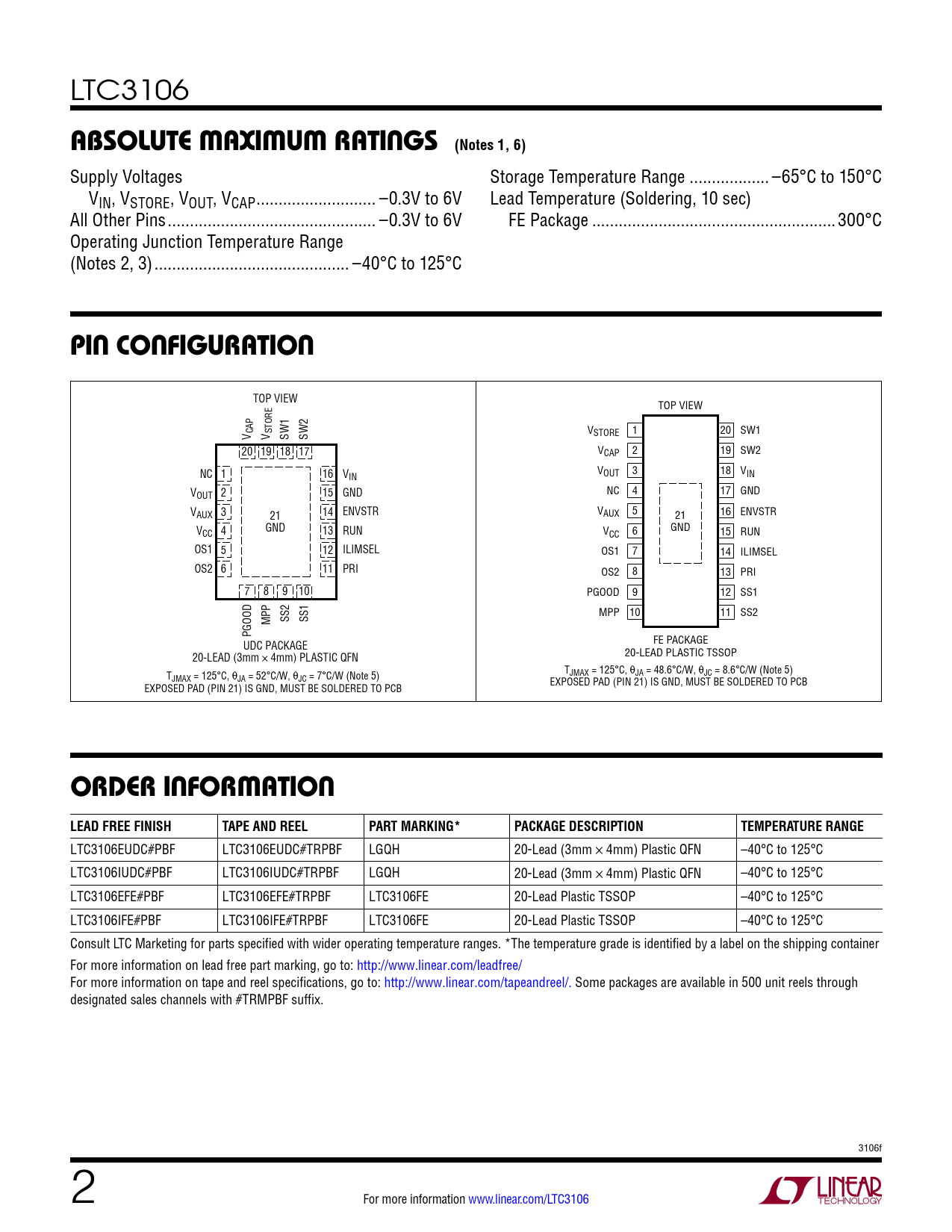

TOP VIEW TOP VIEW V CAP V STORE SW1 SW2 VSTORE 1 20 SW1 20 19 18 17 VCAP 2 19 SW2 NC 1 16 V VOUT 3 18 V IN IN VOUT 2 15 GND NC 4 17 GND VAUX 3 21 14 ENVSTR VAUX 5 16 ENVSTR 21 V GND CC 4 GND 13 RUN VCC 6 15 RUN OS1 5 12 ILIMSEL OS1 7 14 ILIMSEL OS2 6 11 PRI OS2 8 13 PRI 7 8 9 10 PGOOD 9 12 SS1 MPP 10 11 SS2 MPP SS2 SS1 PGOOD UDC PACKAGE FE PACKAGE 20-LEAD (3mm × 4mm) PLASTIC QFN 20-LEAD PLASTIC TSSOP T TJMAX = 125°C, θJA = 48.6°C/W, θJC = 8.6°C/W (Note 5) JMAX = 125°C, θJA = 52°C/W, θJC = 7°C/W (Note 5) EXPOSED PAD (PIN 21) IS GND, MUST BE SOLDERED TO PCB EXPOSED PAD (PIN 21) IS GND, MUST BE SOLDERED TO PCB
orDer inForMaTion LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC3106EUDC#PBF LTC3106EUDC#TRPBF LGQH 20-Lead (3mm × 4mm) Plastic QFN –40°C to 125°C LTC3106IUDC#PBF LTC3106IUDC#TRPBF LGQH 20-Lead (3mm × 4mm) Plastic QFN –40°C to 125°C LTC3106EFE#PBF LTC3106EFE#TRPBF LTC3106FE 20-Lead Plastic TSSOP –40°C to 125°C LTC3106IFE#PBF LTC3106IFE#TRPBF LTC3106FE 20-Lead Plastic TSSOP –40°C to 125°C Consult LTC Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix. 3106f 2 For more information www.linear.com/LTC3106 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Package Description Typical Application Related Parts
