Datasheet LTC3525-3, LTC3525-3.3, LTC3525-5 (Analog Devices) - 4
| 制造商 | Analog Devices |
| 描述 | 400mA Micropower Synchronous Step-Up DC/DC Converter with Output Disconnect |
| 页数 / 页 | 16 / 4 — (LTC3525-5) The |
| 文件格式/大小 | PDF / 546 Kb |
| 文件语言 | 英语 |
(LTC3525-5) The
该数据表的模型线
- LTC3525ESC6-3#TRMPBF LTC3525ESC6-3#TRMPBF LTC3525ESC6-3#TRPBF LTC3525ESC6-3#TRPBF LTC3525ESC6-3.3#TRMPBF LTC3525ESC6-3.3#TRMPBF LTC3525ESC6-3.3#TRPBF LTC3525ESC6-3.3#TRPBF LTC3525ESC6-5#PBF LTC3525ESC6-5#TRMPBF LTC3525ESC6-5#TRMPBF LTC3525ESC6-5#TRPBF LTC3525ESC6-5#TRPBF LTC3525ISC6-3#PBF LTC3525ISC6-3#TRMPBF LTC3525ISC6-3#TRMPBF LTC3525ISC6-3#TRPBF LTC3525ISC6-3#TRPBF LTC3525ISC6-3.3#PBF LTC3525ISC6-3.3#TRMPBF LTC3525ISC6-3.3#TRMPBF LTC3525ISC6-3.3#TRPBF LTC3525ISC6-3.3#TRPBF LTC3525ISC6-5#PBF LTC3525ISC6-5#TRMPBF LTC3525ISC6-5#TRMPBF LTC3525ISC6-5#TRPBF LTC3525ISC6-5#TRPBF
文件文字版本
LTC3525-3/ LTC3525-3.3/LTC3525-5
(LTC3525-5) The
l

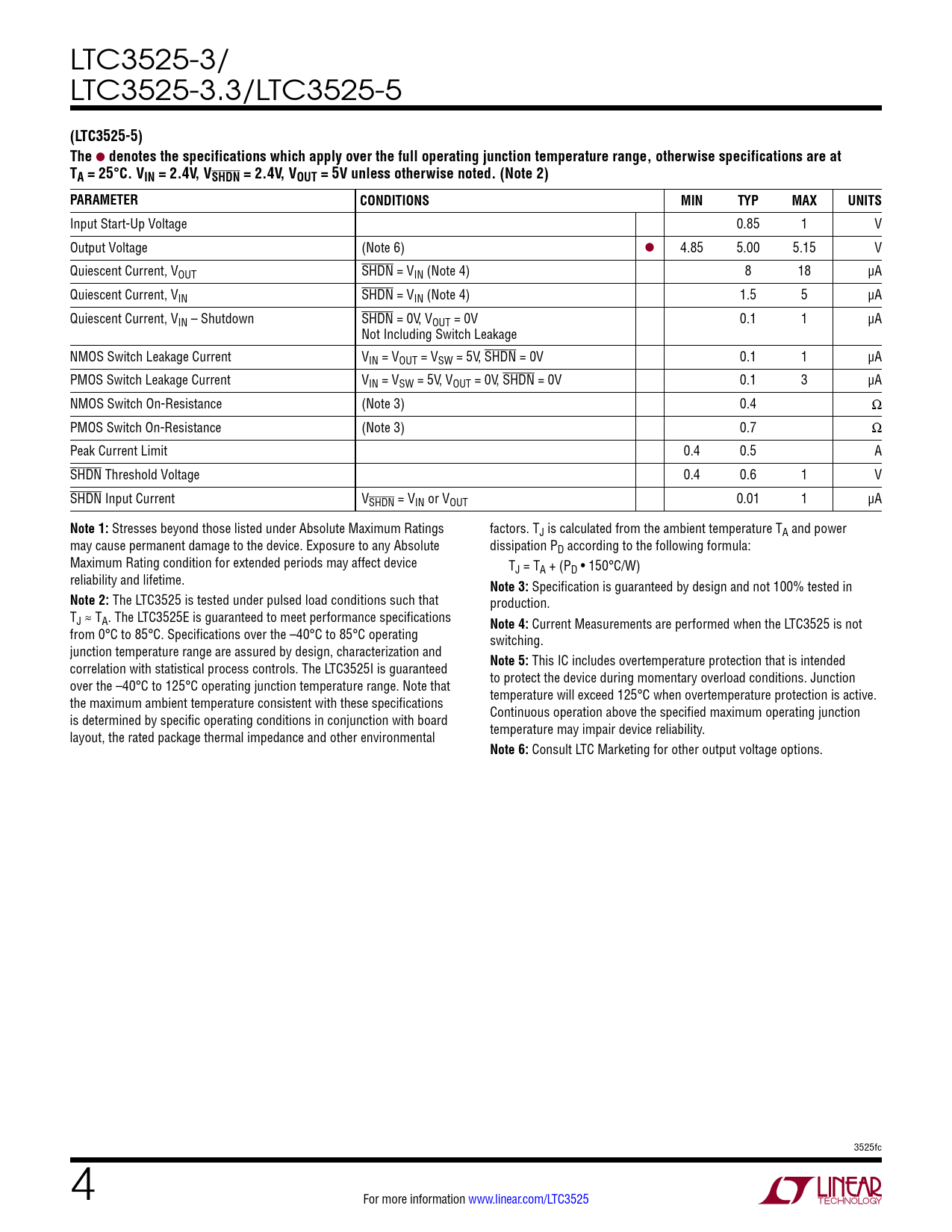

denotes the specifications which apply over the full operating junction temperature range, otherwise specifications are at TA = 25°C. VIN = 2.4V, VSHDN = 2.4V, VOUT = 5V unless otherwise noted. (Note 2) PARAMETER CONDITIONS MIN TYP MAX UNITS
Input Start-Up Voltage 0.85 1 V Output Voltage (Note 6) l 4.85 5.00 5.15 V Quiescent Current, VOUT SHDN = VIN (Note 4) 8 18 µA Quiescent Current, VIN SHDN = VIN (Note 4) 1.5 5 µA Quiescent Current, VIN – Shutdown SHDN = 0V, VOUT = 0V 0.1 1 µA Not Including Switch Leakage NMOS Switch Leakage Current VIN = VOUT = VSW = 5V, SHDN = 0V 0.1 1 µA PMOS Switch Leakage Current VIN = VSW = 5V, VOUT = 0V, SHDN = 0V 0.1 3 µA NMOS Switch On-Resistance (Note 3) 0.4 Ω PMOS Switch On-Resistance (Note 3) 0.7 Ω Peak Current Limit 0.4 0.5 A SHDN Threshold Voltage 0.4 0.6 1 V SHDN Input Current VSHDN = VIN or VOUT 0.01 1 µA
Note 1:
Stresses beyond those listed under Absolute Maximum Ratings factors. TJ is calculated from the ambient temperature TA and power may cause permanent damage to the device. Exposure to any Absolute dissipation PD according to the following formula: Maximum Rating condition for extended periods may affect device TJ = TA + (PD • 150°C/W) reliability and lifetime.
Note 3:
Specification is guaranteed by design and not 100% tested in
Note 2:
The LTC3525 is tested under pulsed load conditions such that production. TJ ≈ TA. The LTC3525E is guaranteed to meet performance specifications
Note 4:
Current Measurements are performed when the LTC3525 is not from 0°C to 85°C. Specifications over the –40°C to 85°C operating switching. junction temperature range are assured by design, characterization and correlation with statistical process controls. The LTC3525I is guaranteed
Note 5:
This IC includes overtemperature protection that is intended over the –40°C to 125°C operating junction temperature range. Note that to protect the device during momentary overload conditions. Junction the maximum ambient temperature consistent with these specifications temperature will exceed 125°C when overtemperature protection is active. is determined by specific operating conditions in conjunction with board Continuous operation above the specified maximum operating junction layout, the rated package thermal impedance and other environmental temperature may impair device reliability.
Note 6:
Consult LTC Marketing for other output voltage options. 3525fc 4 For more information www.linear.com/LTC3525 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical characteristics Typical Performance Characteristics Pin Functions Block Diagram Operation Typical Applications Package Description Revision History Typical Application Related Parts
