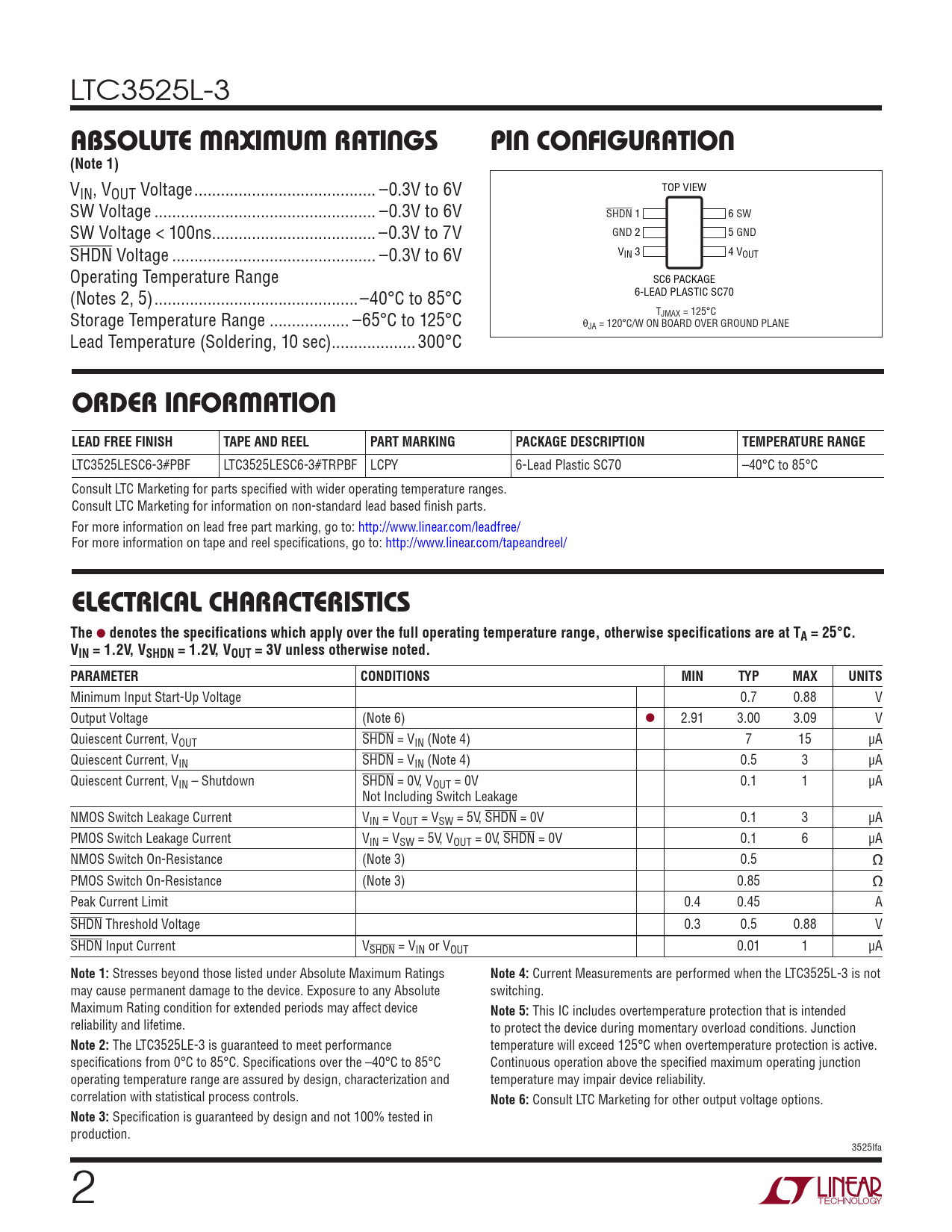

LTC3525L-3
ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION (Note 1)
VIN, VOUT Voltage ... –0.3V to 6V TOP VIEW SW Voltage .. –0.3V to 6V SHDN 1 6 SW SW Voltage < 100ns ... –0.3V to 7V GND 2 5 GND SHDN Voltage .. –0.3V to 6V VIN 3 4 VOUT Operating Temperature Range SC6 PACKAGE (Notes 2, 5) ..–40°C to 85°C 6-LEAD PLASTIC SC70 Storage Temperature Range .. –65°C to 125°C TJMAX = 125°C θJA = 120°C/W ON BOARD OVER GROUND PLANE Lead Temperature (Soldering, 10 sec) ...300°C
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC3525LESC6-3#PBF LTC3525LESC6-3#TRPBF LCPY 6-Lead Plastic SC70 –40°C to 85°C Consult LTC Marketing for parts specified with wider operating temperature ranges. Consult LTC Marketing for information on non-standard lead based finish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/
ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. VIN = 1.2V, VSHDN = 1.2V, VOUT = 3V unless otherwise noted. PARAMETER CONDITIONS MIN TYP MAX UNITS
Minimum Input Start-Up Voltage 0.7 0.88 V Output Voltage (Note 6) l 2.91 3.00 3.09 V Quiescent Current, VOUT SHDN = VIN (Note 4) 7 15 µA Quiescent Current, VIN SHDN = VIN (Note 4) 0.5 3 µA Quiescent Current, VIN – Shutdown SHDN = 0V, VOUT = 0V 0.1 1 µA Not Including Switch Leakage NMOS Switch Leakage Current VIN = VOUT = VSW = 5V, SHDN = 0V 0.1 3 µA PMOS Switch Leakage Current VIN = VSW = 5V, VOUT = 0V, SHDN = 0V 0.1 6 µA NMOS Switch On-Resistance (Note 3) 0.5 PMOS Switch On-Resistance (Note 3) 0.85 Peak Current Limit 0.4 0.45 A SHDN Threshold Voltage 0.3 0.5 0.88 V SHDN Input Current VSHDN = VIN or VOUT 0.01 1 µA
Note 1:
Stresses beyond those listed under Absolute Maximum Ratings
Note 4:
Current Measurements are performed when the LTC3525L-3 is not may cause permanent damage to the device. Exposure to any Absolute switching. Maximum Rating condition for extended periods may affect device
Note 5:
This IC includes overtemperature protection that is intended reliability and lifetime. to protect the device during momentary overload conditions. Junction
Note 2:
The LTC3525LE-3 is guaranteed to meet performance temperature will exceed 125°C when overtemperature protection is active. specifications from 0°C to 85°C. Specifications over the –40°C to 85°C Continuous operation above the specified maximum operating junction operating temperature range are assured by design, characterization and temperature may impair device reliability. correlation with statistical process controls.
Note 6:
Consult LTC Marketing for other output voltage options.
Note 3:
Specification is guaranteed by design and not 100% tested in production. 3525lfa 2 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Operation Package Description Revision History Typical Applications Related Parts
