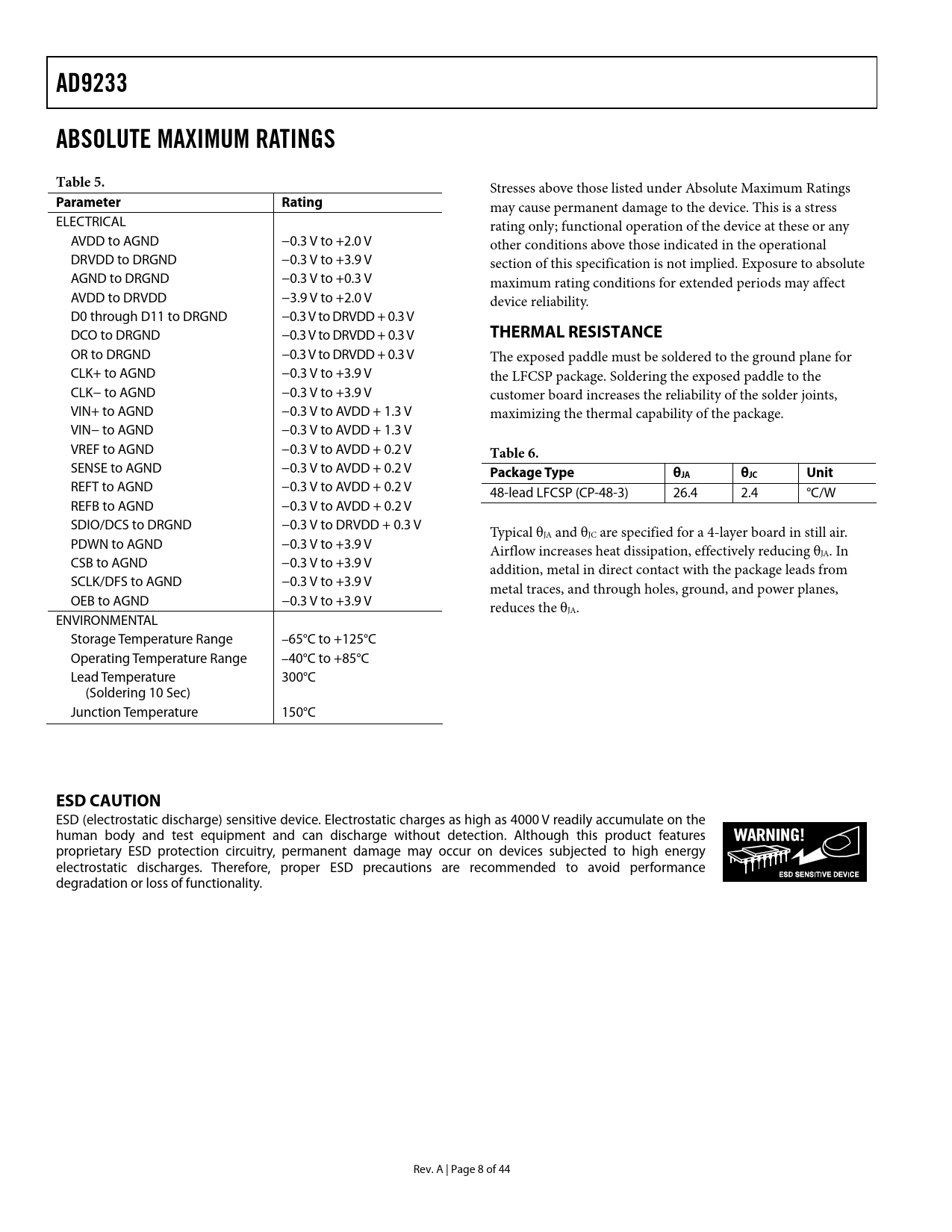

AD9233 ABSOLUTE MAXIMUM RATINGS Table 5.
Stresses above those listed under Absolute Maximum Ratings
Parameter Rating
may cause permanent damage to the device. This is a stress ELECTRICAL rating only; functional operation of the device at these or any AVDD to AGND −0.3 V to +2.0 V other conditions above those indicated in the operational DRVDD to DRGND −0.3 V to +3.9 V section of this specification is not implied. Exposure to absolute AGND to DRGND −0.3 V to +0.3 V maximum rating conditions for extended periods may affect AVDD to DRVDD −3.9 V to +2.0 V device reliability. D0 through D11 to DRGND −0.3 V to DRVDD + 0.3 V DCO to DRGND −0.3 V to DRVDD + 0.3 V
THERMAL RESISTANCE
OR to DRGND −0.3 V to DRVDD + 0.3 V The exposed paddle must be soldered to the ground plane for CLK+ to AGND −0.3 V to +3.9 V the LFCSP package. Soldering the exposed paddle to the CLK− to AGND −0.3 V to +3.9 V customer board increases the reliability of the solder joints, VIN+ to AGND −0.3 V to AVDD + 1.3 V maximizing the thermal capability of the package. VIN− to AGND −0.3 V to AVDD + 1.3 V VREF to AGND −0.3 V to AVDD + 0.2 V
Table 6.
SENSE to AGND −0.3 V to AVDD + 0.2 V
Package Type θJA θJC Unit
REFT to AGND −0.3 V to AVDD + 0.2 V 48-lead LFCSP (CP-48-3) 26.4 2.4 °C/W REFB to AGND −0.3 V to AVDD + 0.2 V SDIO/DCS to DRGND −0.3 V to DRVDD + 0.3 V Typical θJA and θJC are specified for a 4-layer board in still air. PDWN to AGND −0.3 V to +3.9 V Airflow increases heat dissipation, effectively reducing θJA. In CSB to AGND −0.3 V to +3.9 V addition, metal in direct contact with the package leads from SCLK/DFS to AGND −0.3 V to +3.9 V metal traces, and through holes, ground, and power planes, OEB to AGND −0.3 V to +3.9 V reduces the θJA. ENVIRONMENTAL Storage Temperature Range –65°C to +125°C Operating Temperature Range –40°C to +85°C Lead Temperature 300°C (Soldering 10 Sec) Junction Temperature 150°C
ESD CAUTION
ESD (electrostatic discharge) sensitive device. Electrostatic charges as high as 4000 V readily accumulate on the human body and test equipment and can discharge without detection. Although this product features proprietary ESD protection circuitry, permanent damage may occur on devices subjected to high energy electrostatic discharges. Therefore, proper ESD precautions are recommended to avoid performance degradation or loss of functionality. Rev. A | Page 8 of 44 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS DC SPECIFICATIONS AC SPECIFICATIONS DIGITAL SPECIFICATIONS SWITCHING SPECIFICATIONS TIMING DIAGRAM ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS EQUIVALENT CIRCUITS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION ANALOG INPUT CONSIDERATIONS Input Common Mode Differential Input Configurations Single-Ended Input Configuration VOLTAGE REFERENCE Internal Reference Connection External Reference Operation CLOCK INPUT CONSIDERATIONS Clock Input Options Clock Duty Cycle JITTER CONSIDERATIONS POWER DISSIPATION AND STANDBY MODE Power-Down Mode Standby Mode DIGITAL OUTPUTS Out-of-Range (OR) Condition Digital Output Enable Function (OEB) TIMING Data Clock Output (DCO) SERIAL PORT INTERFACE (SPI) CONFIGURATION USING THE SPI HARDWARE INTERFACE CONFIGURATION WITHOUT THE SPI MEMORY MAP READING THE MEMORY MAP TABLE Open Locations Default Values Logic Levels SPI-Accessible Features LAYOUT CONSIDERATIONS POWER AND GROUND RECOMMENDATIONS Exposed Paddle Thermal Heat Slug Recommendations CML RBIAS REFERENCE DECOUPLING EVALUATION BOARD POWER SUPPLIES INPUT SIGNALS OUTPUT SIGNALS DEFAULT OPERATION AND JUMPER SELECTION SETTINGS POWER VIN VREF RBIAS CLOCK PDWN CSB SCLK/DFS SDIO/DCS ALTERNATIVE CLOCK CONFIGURATIONS ALTERNATIVE ANALOG INPUT DRIVE CONFIGURATION SCHEMATICS EVALUATION BOARD LAYOUTS BILL OF MATERIALS (BOM) OUTLINE DIMENSIONS ORDERING GUIDE
