| 制造商 | Analog Devices |
| 描述 | 16-Bit, 1.5 LSB INL, 250 kSPS PulSAR™ Differential ADC in MSOP/QFN |
| 页数 / 页 | 27 / 9 — AD7687. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 6. THERMAL RESISTANCE. … |
| 修订版 | E |
| 文件格式/大小 | PDF / 625 Kb |
| 文件语言 | 英语 |

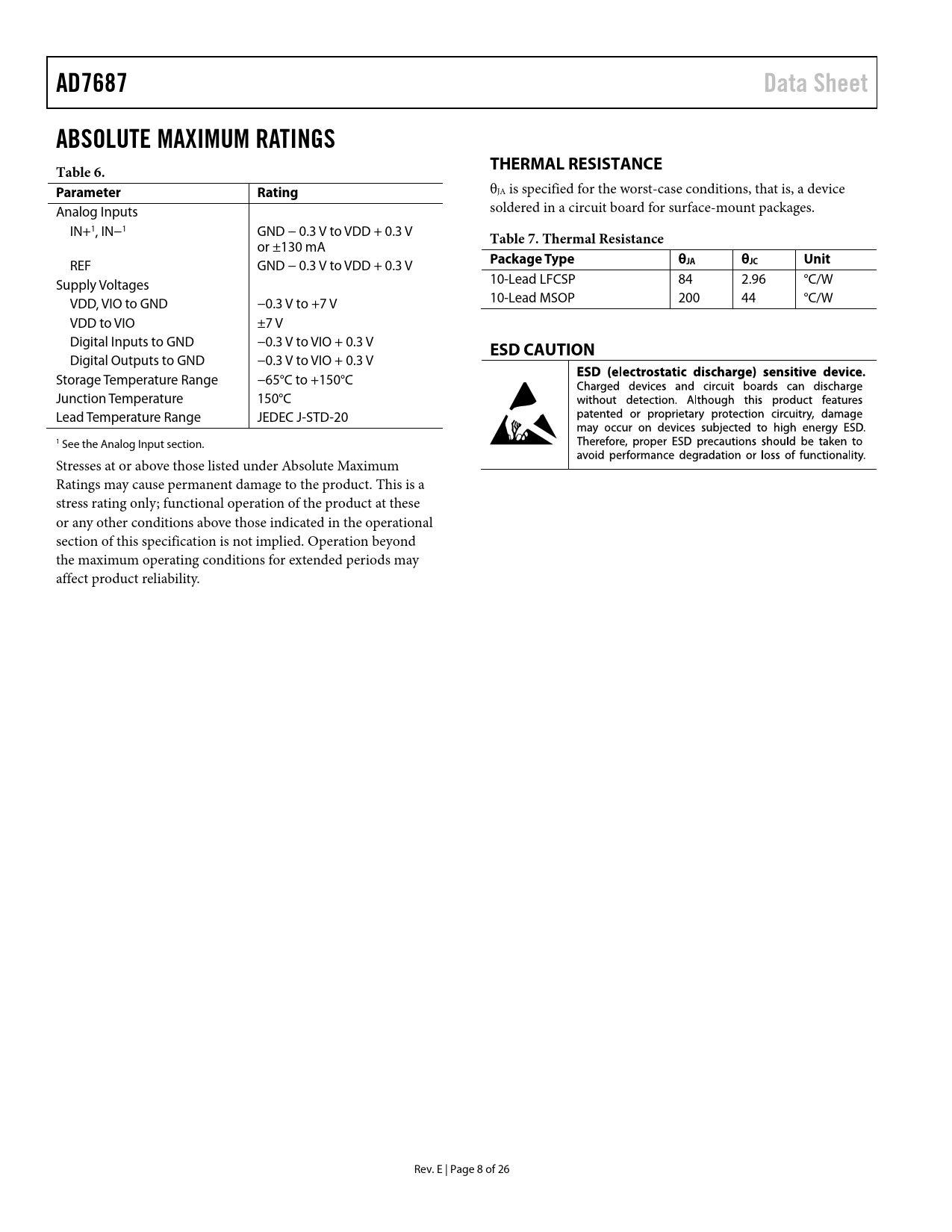

AD7687. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 6. THERMAL RESISTANCE. Parameter. Rating. Table 7. Thermal Resistance
该数据表的模型线
文件文字版本
link to page 17
AD7687 Data Sheet ABSOLUTE MAXIMUM RATINGS Table 6. THERMAL RESISTANCE Parameter Rating
θJA is specified for the worst-case conditions, that is, a device Analog Inputs soldered in a circuit board for surface-mount packages. IN+1, IN−1 GND − 0.3 V to VDD + 0.3 V or ±130 mA
Table 7. Thermal Resistance
REF GND − 0.3 V to VDD + 0.3 V
Package Type θJA θJC Unit
Supply Voltages 10-Lead LFCSP 84 2.96 °C/W VDD, VIO to GND −0.3 V to +7 V 10-Lead MSOP 200 44 °C/W VDD to VIO ±7 V Digital Inputs to GND −0.3 V to VIO + 0.3 V
