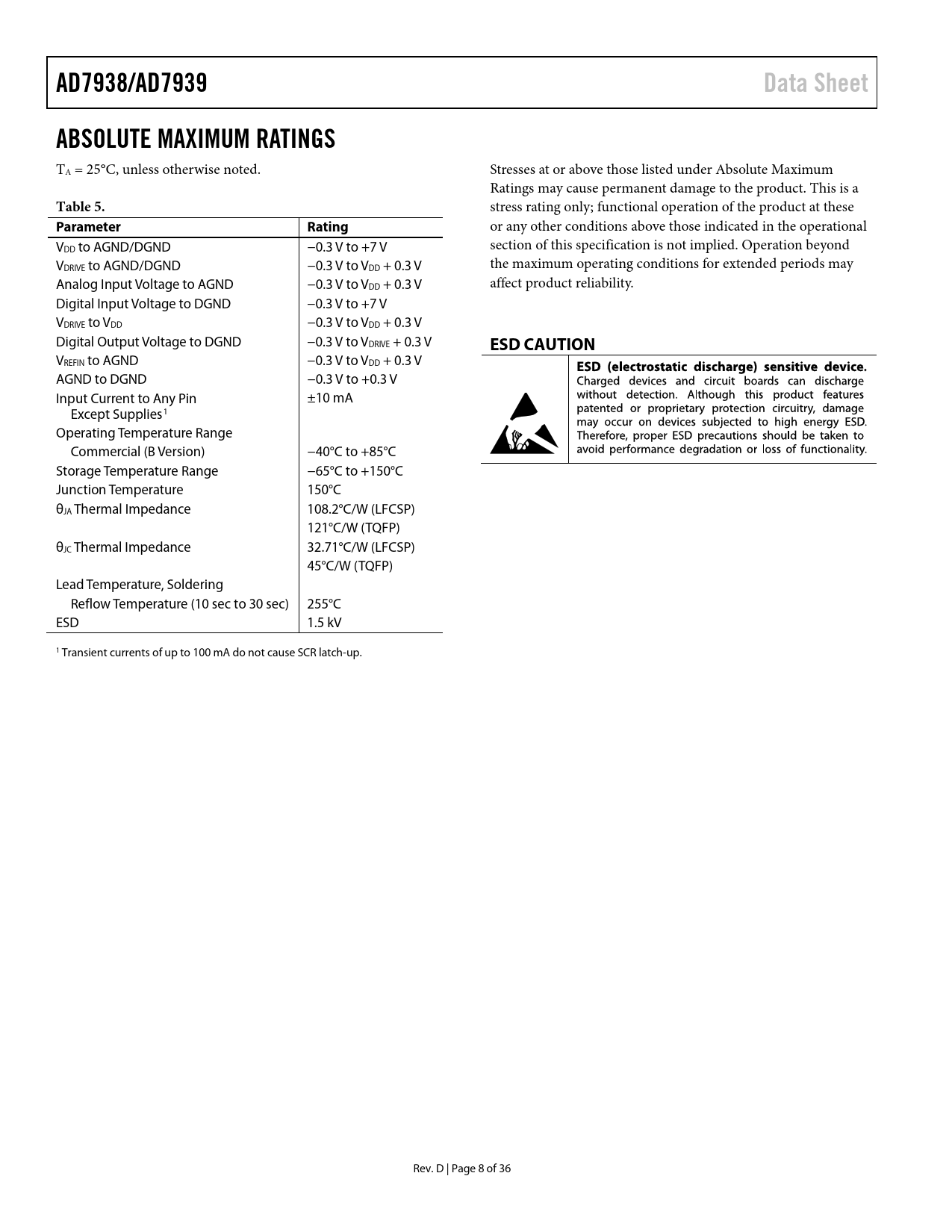

AD7938/AD7939. Data Sheet. ABSOLUTE MAXIMUM RATINGS. Table 5. Parameter. Rating. ESD CAUTION
该数据表的模型线
文件文字版本
AD7938/AD7939 Data Sheet ABSOLUTE MAXIMUM RATINGS
TA = 25°C, unless otherwise noted. Stresses at or above those listed under Absolute Maximum Ratings may cause permanent damage to the product. This is a
Table 5.
stress rating only; functional operation of the product at these
Parameter Rating
or any other conditions above those indicated in the operational VDD to AGND/DGND −0.3 V to +7 V section of this specification is not implied. Operation beyond VDRIVE to AGND/DGND −0.3 V to VDD + 0.3 V the maximum operating conditions for extended periods may Analog Input Voltage to AGND −0.3 V to VDD + 0.3 V affect product reliability. Digital Input Voltage to DGND −0.3 V to +7 V VDRIVE to VDD −0.3 V to VDD + 0.3 V Digital Output Voltage to DGND −0.3 V to VDRIVE + 0.3 V
