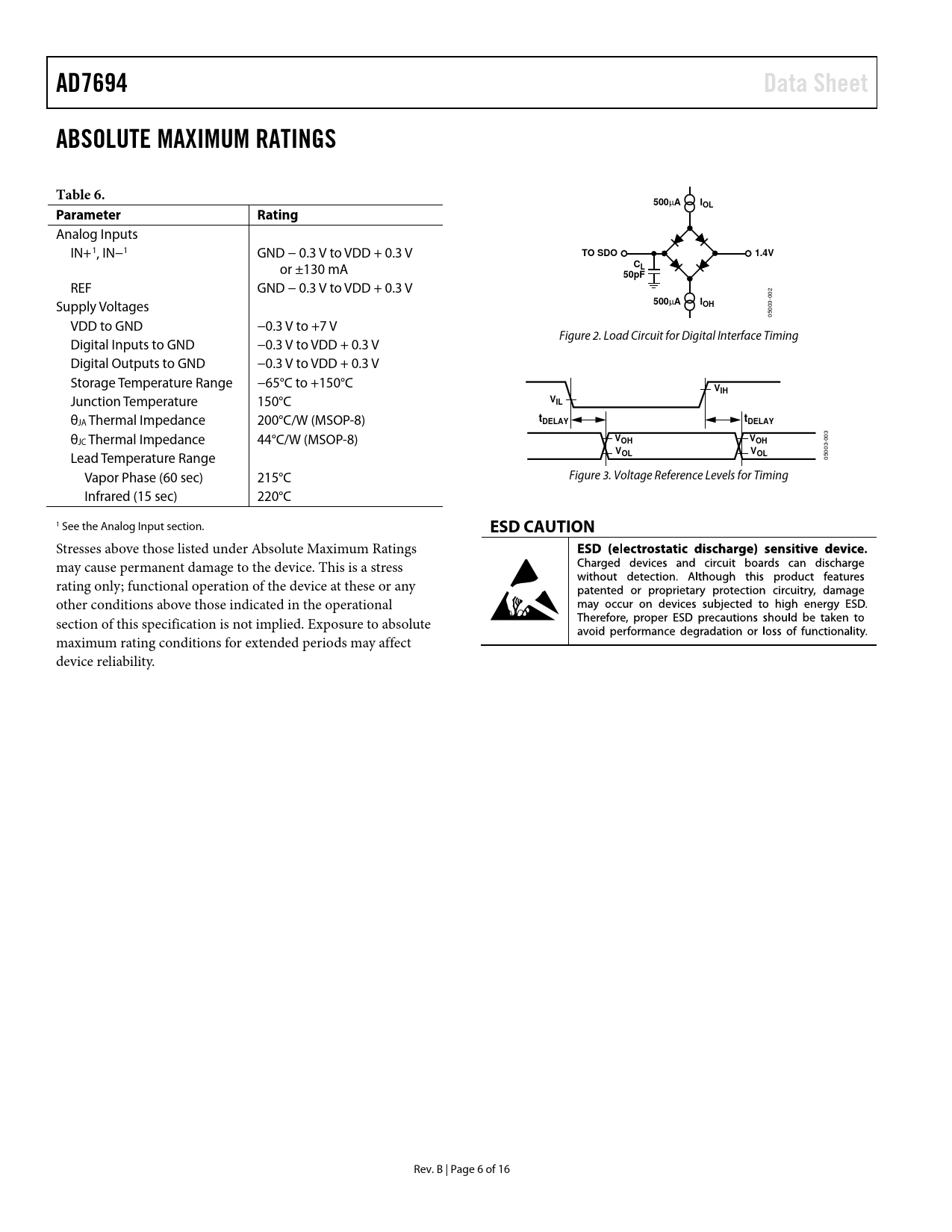

AD7694 Data Sheet ABSOLUTE MAXIMUM RATINGS Table 6. 500
µ
A IOL Parameter Rating
Analog Inputs IN+1, IN−1 GND − 0.3 V to VDD + 0.3 V
TO SDO 1.4V
or ±130 mA
CL 50pF
REF GND − 0.3 V to VDD + 0.3 V Supply Voltages
500
µ
A IOH
05003-002 VDD to GND −0.3 V to +7 V Figure 2. Load Circuit for Digital Interface Timing Digital Inputs to GND −0.3 V to VDD + 0.3 V Digital Outputs to GND −0.3 V to VDD + 0.3 V Storage Temperature Range −65°C to +150°C
VIH
Junction Temperature 150°C
VIL
θJA Thermal Impedance 200°C/W (MSOP-8)
tDELAY tDELAY
θJC Thermal Impedance 44°C/W (MSOP-8)
V V OH OH
Lead Temperature Range
V V OL OL
05003-003 Vapor Phase (60 sec) 215°C Figure 3. Voltage Reference Levels for Timing Infrared (15 sec) 220°C 1 See the Analog Input section.
ESD CAUTION
Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. Rev. B | Page 6 of 16 Document Outline Features Applications General Description Application Diagram Table of Contents Revision History Specifications Timing Specifications Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Terminology Typical Performance Characteristics Application Information Circuit Information Converter Operation Transfer Functions Typical Connection Diagram Analog Input Driver Amplifier Choice Voltage Reference Input Power Supply Supplying the ADC from the Reference Digital Interface Layout Evaluating the AD7694 Performance Outline Dimensions Ordering Guide
