描述Dual 1MSPS, 12-Bit, 2-Channel SAR ADC with Serial Interface
页数 / 页25 / 6 — AD7866. ABSOLUTE MAXIMUM RATINGS1. ORDERING GUIDE. Resolution. Package. …
修订版A
文件格式/大小PDF / 435 Kb
文件语言英语

AD7866. ABSOLUTE MAXIMUM RATINGS1. ORDERING GUIDE. Resolution. Package. Model. Temperature Range. (Bits). Package Description. Option

AD7866 ABSOLUTE MAXIMUM RATINGS1 ORDERING GUIDE Resolution Package Model Temperature Range (Bits) Package Description Option

该数据表的模型线

文件文字版本

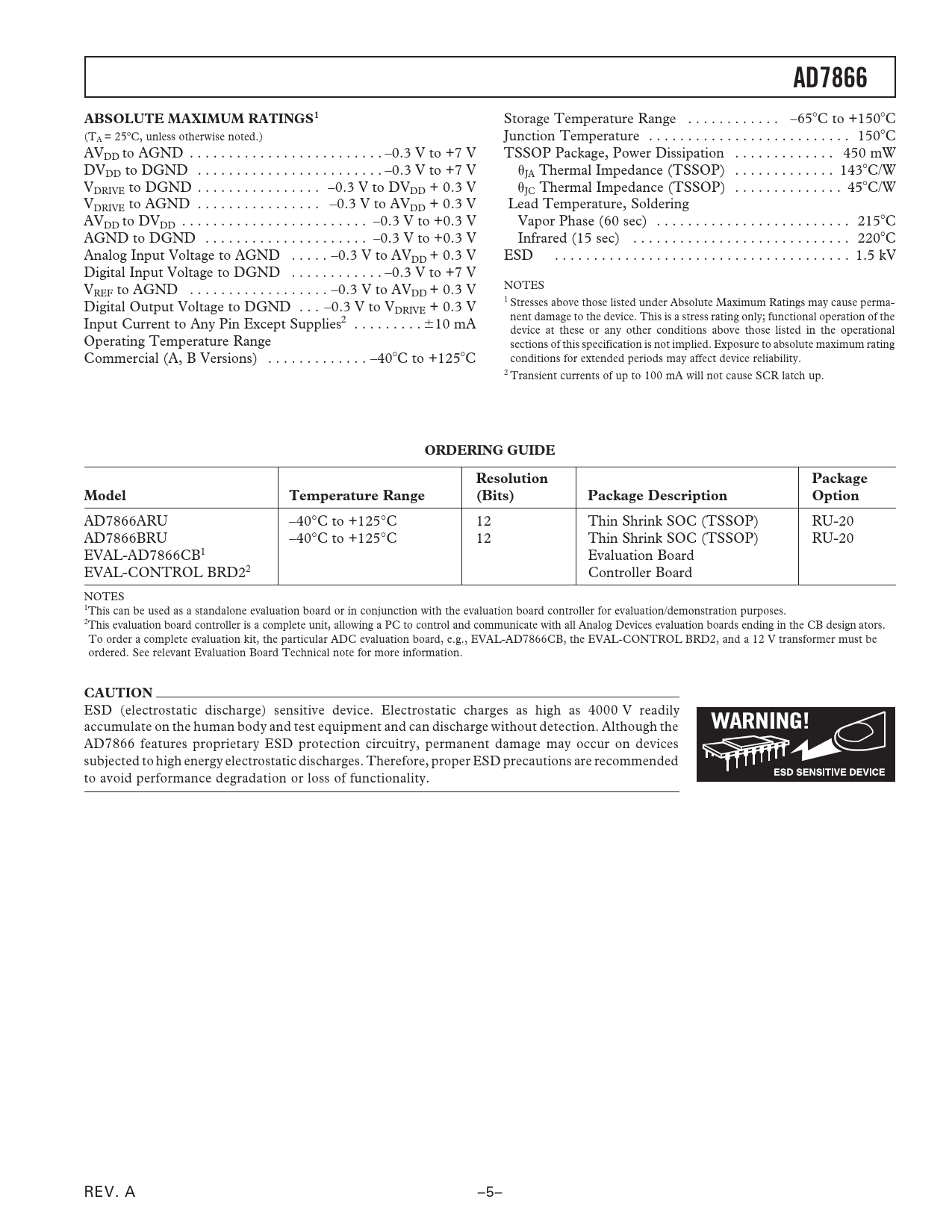

AD7866 ABSOLUTE MAXIMUM RATINGS1
Storage Temperature Range . –65C to +150C (T Junction Temperature . 150C A = 25oC, unless otherwise noted.) AVDD to AGND . –0.3 V to +7 V TSSOP Package, Power Dissipation . 450 mW DVDD to DGND . –0.3 V to +7 V JA Thermal Impedance (TSSOP) . 143C/W V DRIVE to DGND . –0.3 V to DVDD + 0.3 V JC Thermal Impedance (TSSOP) . 45C/W VDRIVE to AGND . –0.3 V to AVDD + 0.3 V Lead Temperature, Soldering AVDD to DVDD . –0.3 V to +0.3 V Vapor Phase (60 sec) . 215C AGND to DGND . –0.3 V to +0.3 V Infrared (15 sec) . 220C Analog Input Voltage to AGND . –0.3 V to AVDD + 0.3 V ESD . 1.5 kV Digital Input Voltage to DGND . –0.3 V to +7 V V NOTES REF to AGND . –0.3 V to AVDD + 0.3 V 1 Digital Output Voltage to DGND . –0.3 V to V Stresses above those listed under Absolute Maximum Ratings may cause perma- DRIVE + 0.3 V nent damage to the device. This is a stress rating only; functional operation of the Input Current to Any Pin Except Supplies2 . 10 mA device at these or any other conditions above those listed in the operational Operating Temperature Range sections of this specification is not implied. Exposure to absolute maximum rating Commercial (A, B Versions) . –40C to +125C conditions for extended periods may affect device reliability. 2 Transient currents of up to 100 mA will not cause SCR latch up.
ORDERING GUIDE Resolution Package Model Temperature Range (Bits) Package Description Option
AD7866ARU –40°C to +125°C 12 Thin Shrink SOC (TSSOP) RU-20 AD7866BRU –40°C to +125°C 12 Thin Shrink SOC (TSSOP) RU-20 EVAL-AD7866CB1 Evaluation Board EVAL-CONTROL BRD22 Controller Board NOTES 1This can be used as a standalone evaluation board or in conjunction with the evaluation board controller for evaluation/demonstration purposes. 2This evaluation board controller is a complete unit, allowing a PC to control and communicate with all Analog Devices evaluation boards ending in the CB design ators. To order a complete evaluation kit, the particular ADC evaluation board, e.g., EVAL-AD7866CB, the EVAL-CONTROL BRD2, and a 12 V transformer must be ordered. See relevant Evaluation Board Technical note for more information.
CAUTION
ESD (electrostatic discharge) sensitive device. Electrostatic charges as high as 4000 V readily accumulate on the human body and test equipment and can discharge without detection. Although the AD7866 features proprietary ESD protection circuitry, permanent damage may occur on devices subjected to high energy electrostatic discharges. Therefore, proper ESD precautions are recommended to avoid performance degradation or loss of functionality. REV. A –5– Document Outline FEATURES GENERAL DESCRIPTION PRODUCT HIGHLIGHTS FUNCTIONAL BLOCK DIAGRAM SPECIFICATIONS TIMING SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ORDERING GUIDE PIN CONFIGURATION PIN FUNCTION DESCRIPTIONS TERMINOLOGY Integral Nonlinearity Differential Nonlinearity Offset Error Offset Error Match Gain Error Gain Error Match Zero Code Error Zero Code Error Match Positive Gain Error Negative Gain Error Track-and-Hold Acquisition Time Signal-to-(Noise + Distortion) Ratio (SNDR) Total Harmonic Distortion (THD) Peak Harmonic or Spurious Noise Intermodulation Distortion Channel-to-Channel Isolation PSR (Power Supply Rejection) PERFORMANCE CURVES Typical Performance Characteristics CIRCUIT INFORMATION CONVERTER OPERATION ANALOG INPUT Analog Input Ranges Handling Bipolar Input Signals Transfer Functions Digital Inputs REFERENCE CONFIGURATION OPTIONS MODES OF OPERATION Normal Mode Partial Power-Down Mode Full Power-Down Mode POWER-UP TIMES POWER VS. THROUGHPUT RATE SERIAL INTERFACE MICROPROCESSOR INTERFACING AD7866 to ADSP-218x AD7866 to TMS320C541 AD7866 to DSP-563xx APPLICATION HINTS Grounding and Layout Evaluating the AD7866 Performance OUTLINE DIMENSIONS Revision History
