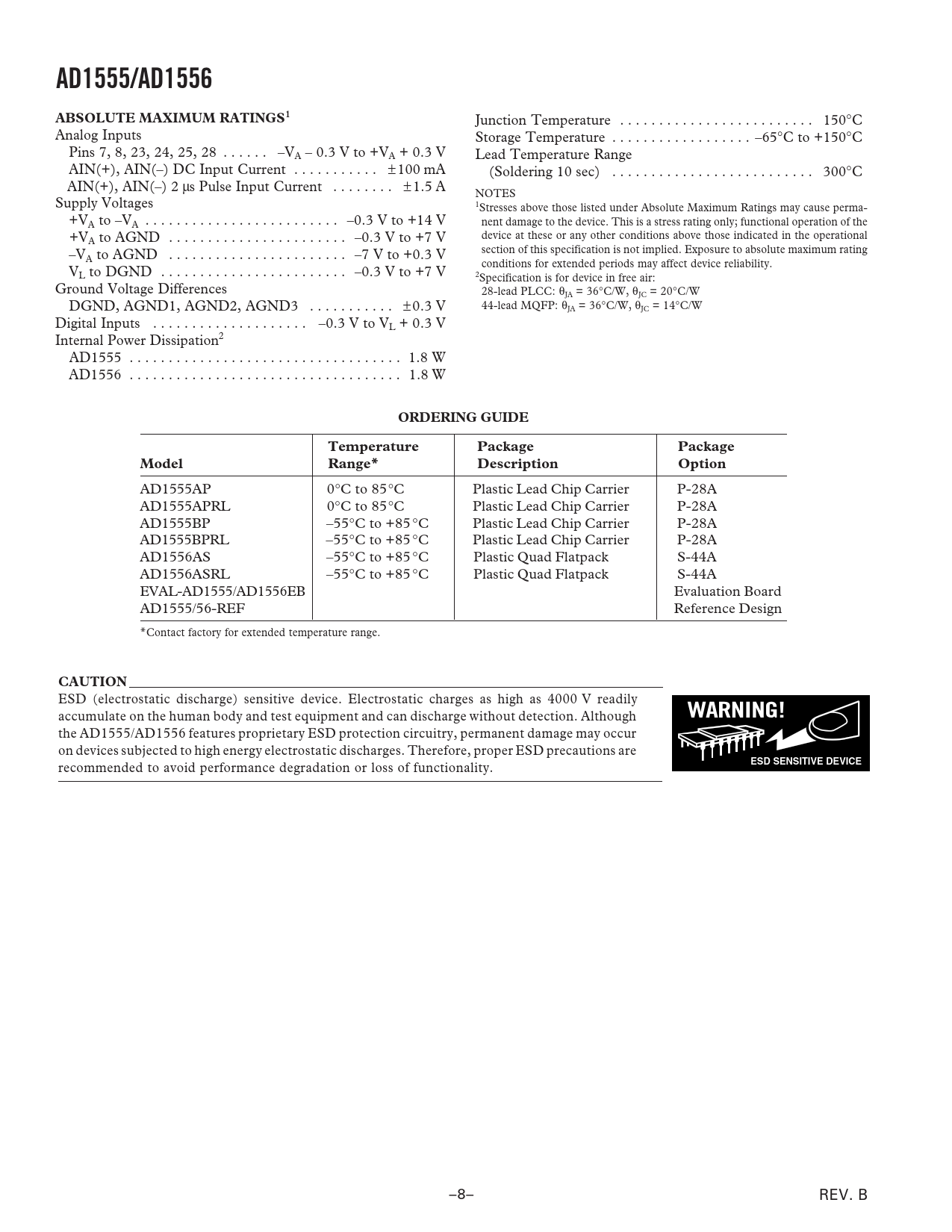

AD1555/AD1556. ABSOLUTE MAXIMUM RATINGS1. ORDERING GUIDE. Temperature. Package. Model. Range*. Description. Option. CAUTION. WARNING!
该数据表的模型线
文件文字版本
AD1555/AD1556 ABSOLUTE MAXIMUM RATINGS1
Junction Temperature . 150°C Analog Inputs Storage Temperature . –65°C to +150°C Pins 7, 8, 23, 24, 25, 28 . –VA – 0.3 V to +VA + 0.3 V Lead Temperature Range AIN(+), AIN(–) DC Input Current . ± 100 mA (Soldering 10 sec) . 300°C AIN(+), AIN(–) 2 µs Pulse Input Current . ± 1.5 A NOTES Supply Voltages 1Stresses above those listed under Absolute Maximum Ratings may cause perma- +VA to –VA . –0.3 V to +14 V nent damage to the device. This is a stress rating only; functional operation of the +V device at these or any other conditions above those indicated in the operational A to AGND . –0.3 V to +7 V –V section of this specification is not implied. Exposure to absolute maximum rating A to AGND . –7 V to +0.3 V conditions for extended periods may affect device reliability. VL to DGND . –0.3 V to +7 V 2Specification is for device in free air: Ground Voltage Differences 28-lead PLCC: θJA = 36°C/W, θJC = 20°C/W DGND, AGND1, AGND2, AGND3 . ± 0.3 V 44-lead MQFP: θJA = 36°C/W, θJC = 14°C/W Digital Inputs . –0.3 V to VL + 0.3 V Internal Power Dissipation2 AD1555 . 1.8 W AD1556 . 1.8 W
ORDERING GUIDE Temperature Package Package Model Range* Description Option
AD1555AP 0°C to 85°C Plastic Lead Chip Carrier P-28A AD1555APRL 0°C to 85°C Plastic Lead Chip Carrier P-28A AD1555BP –55°C to +85 °C Plastic Lead Chip Carrier P-28A AD1555BPRL –55°C to +85 °C Plastic Lead Chip Carrier P-28A AD1556AS –55°C to +85 °C Plastic Quad Flatpack S-44A AD1556ASRL –55°C to +85 °C Plastic Quad Flatpack S-44A EVAL-AD1555/AD1556EB Evaluation Board AD1555/56-REF Reference Design *Contact factory for extended temperature range.
CAUTION
ESD (electrostatic discharge) sensitive device. Electrostatic charges as high as 4000 V readily accumulate on the human body and test equipment and can discharge without detection. Although
WARNING!
the AD1555/AD1556 features proprietary ESD protection circuitry, permanent damage may occur on devices subjected to high energy electrostatic discharges. Therefore, proper ESD precautions are
ESD SENSITIVE DEVICE
recommended to avoid performance degradation or loss of functionality. –8– REV. B
