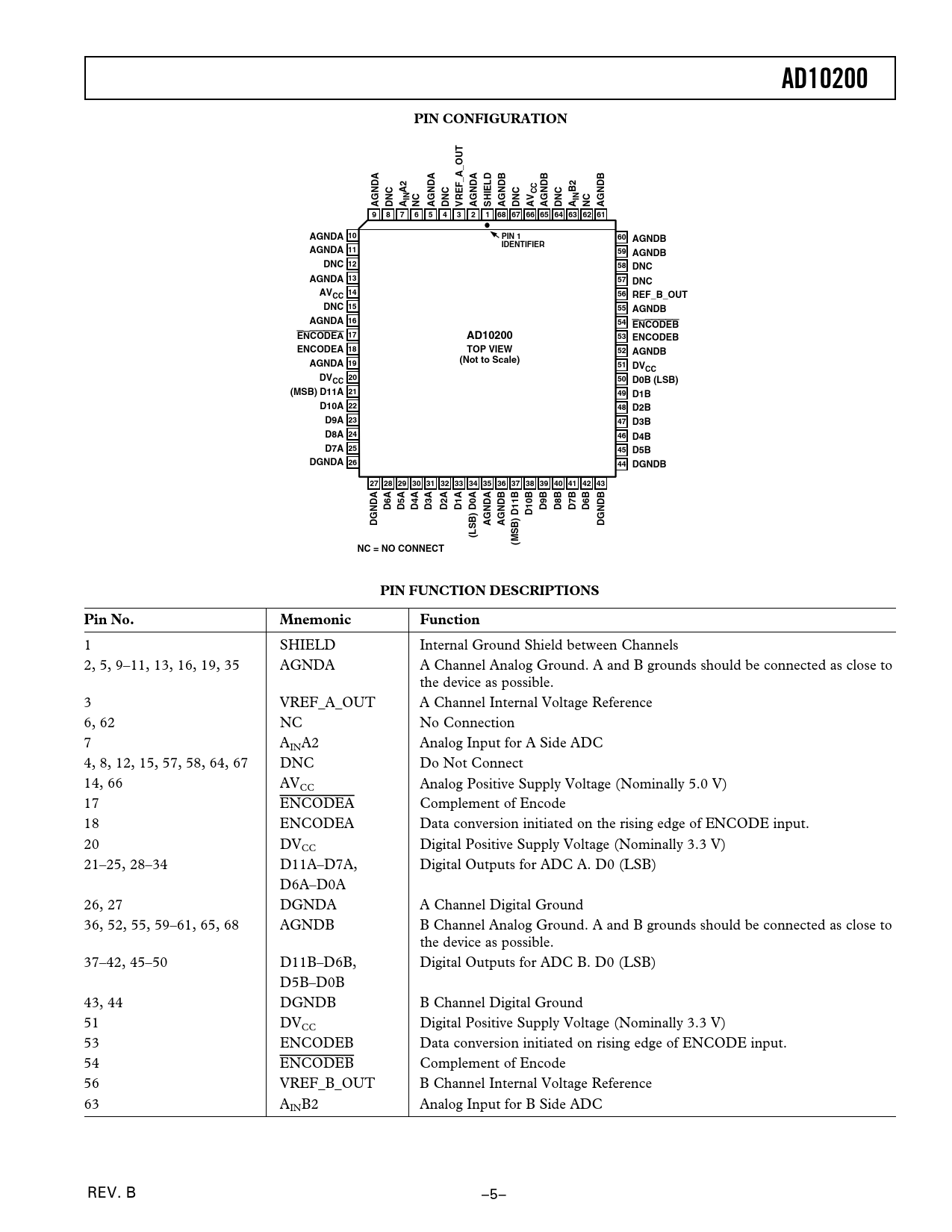

AD10200 PIN CONFIGURATION A2 CC B2 IN IN AGNDA DNC A NC AGNDA DNC VREF_A_OUT AGNDA SHIELD AGNDB DNC AV AGNDB DNC A NC AGNDB 9 8 7 6 5 4 3 2 1 68 67 66 65 64 63 62 61 AGNDA 10 PIN 1 60 AGNDB IDENTIFIER AGNDA 11 59 AGNDB DNC 12 58 DNC 13 AGNDA 57 DNC AV 14 56 CC REF_B_OUT DNC 15 55 AGNDB AGNDA 16 54 ENCODEB ENCODEA 17 AD10200 53 ENCODEB ENCODEA 18 TOP VIEW 52 AGNDB AGNDA 19 (Not to Scale) 51 DVCC DV 20 50 CC D0B (LSB) (MSB) D11A 21 49 D1B D10A 22 48 D2B D9A 23 47 D3B D8A 24 46 D4B D7A 25 45 D5B DGNDA 26 44 DGNDB 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 D6A D5A D4A D3A D2A D1A D9B D8B D7B D6B D10B DGNDA AGNDA AGNDB DGNDB (LSB) D0A (MSB) D11B NC = NO CONNECT PIN FUNCTION DESCRIPTIONS Pin No. Mnemonic Function
1 SHIELD Internal Ground Shield between Channels 2, 5, 9–11, 13, 16, 19, 35 AGNDA A Channel Analog Ground. A and B grounds should be connected as close to the device as possible. 3 VREF_A_OUT A Channel Internal Voltage Reference 6, 62 NC No Connection 7 AINA2 Analog Input for A Side ADC 4, 8, 12, 15, 57, 58, 64, 67 DNC Do Not Connect 14, 66 AVCC Analog Positive Supply Voltage (Nominally 5.0 V) 17 ENCODEA Complement of Encode 18 ENCODEA Data conversion initiated on the rising edge of ENCODE input. 20 DVCC Digital Positive Supply Voltage (Nominally 3.3 V) 21–25, 28–34 D11A–D7A, Digital Outputs for ADC A. D0 (LSB) D6A–D0A 26, 27 DGNDA A Channel Digital Ground 36, 52, 55, 59–61, 65, 68 AGNDB B Channel Analog Ground. A and B grounds should be connected as close to the device as possible. 37–42, 45–50 D11B–D6B, Digital Outputs for ADC B. D0 (LSB) D5B–D0B 43, 44 DGNDB B Channel Digital Ground 51 DVCC Digital Positive Supply Voltage (Nominally 3.3 V) 53 ENCODEB Data conversion initiated on rising edge of ENCODE input. 54 ENCODEB Complement of Encode 56 VREF_B_OUT B Channel Internal Voltage Reference 63 AINB2 Analog Input for B Side ADC REV. B –5–
