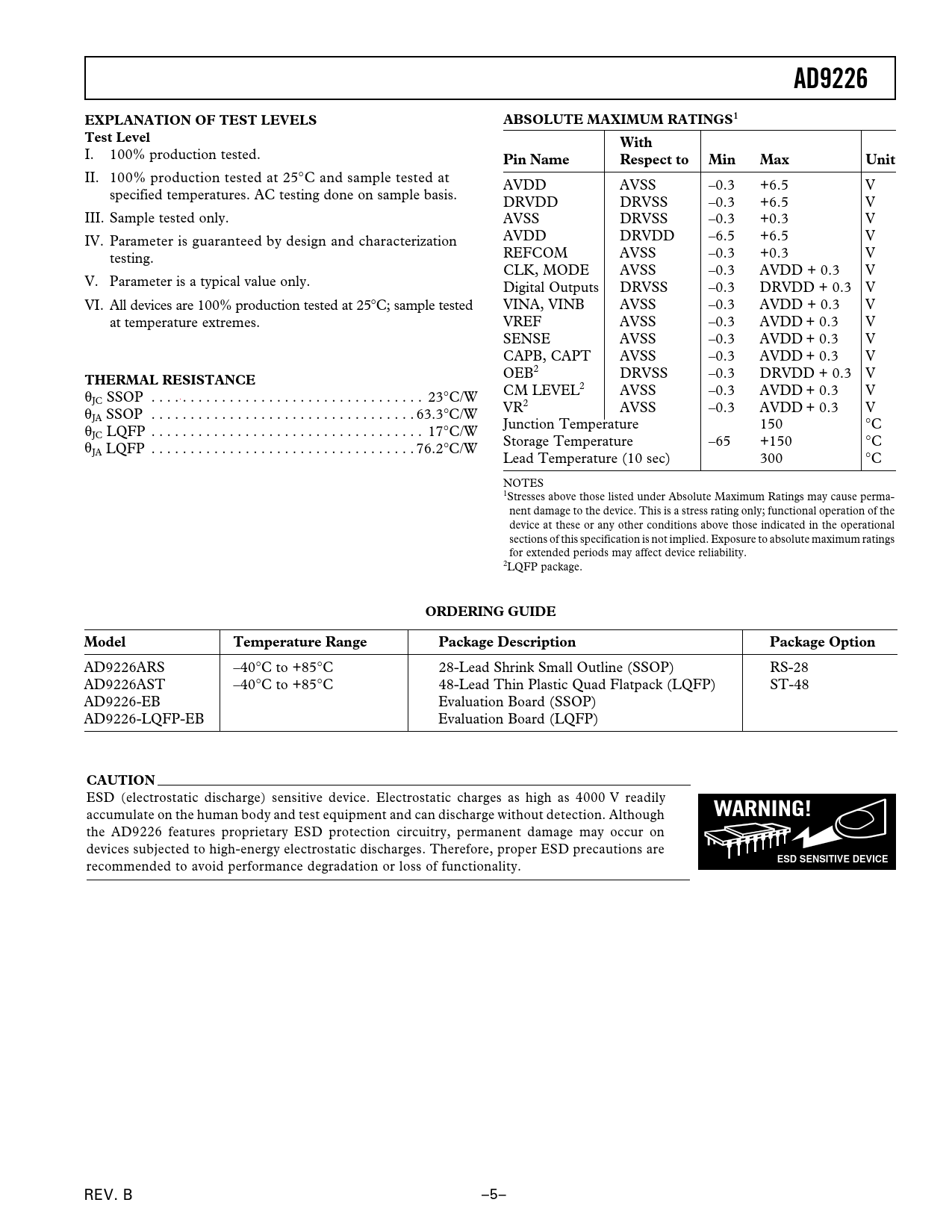

AD9226. EXPLANATION OF TEST LEVELS. ABSOLUTE MAXIMUM RATINGS1. Test Level. With. Pin Name. Respect to. Min. Max. Unit. THERMAL RESISTANCE
该数据表的模型线
文件文字版本
AD9226 EXPLANATION OF TEST LEVELS ABSOLUTE MAXIMUM RATINGS1 Test Level With
I. 100% production tested.
Pin Name Respect to Min Max Unit
II. 100% production tested at 25°C and sample tested at AVDD AVSS –0.3 +6.5 V specified temperatures. AC testing done on sample basis. DRVDD DRVSS –0.3 +6.5 V III. Sample tested only. AVSS DRVSS –0.3 +0.3 V AVDD DRVDD –6.5 +6.5 V IV. Parameter is guaranteed by design and characterization REFCOM AVSS –0.3 +0.3 V testing. CLK, MODE AVSS –0.3 AVDD + 0.3 V V. Parameter is a typical value only. Digital Outputs DRVSS –0.3 DRVDD + 0.3 V VI. All devices are 100% production tested at 25°C; sample tested VINA, VINB AVSS –0.3 AVDD + 0.3 V at temperature extremes. VREF AVSS –0.3 AVDD + 0.3 V SENSE AVSS –0.3 AVDD + 0.3 V CAPB, CAPT AVSS –0.3 AVDD + 0.3 V OEB2 DRVSS –0.3 DRVDD + 0.3 V
THERMAL RESISTANCE
CM LEVEL2 AVSS –0.3 AVDD + 0.3 V θJC SSOP . 23°C/W VR2 AVSS –0.3 AVDD + 0.3 V θJA SSOP . 63.3°C/W Junction Temperature 150 °C θJC LQFP . 17°C/W Storage Temperature –65 +150 °C θJA LQFP . 76.2°C/W Lead Temperature (10 sec) 300 °C NOTES 1Stresses above those listed under Absolute Maximum Ratings may cause perma- nent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum ratings for extended periods may affect device reliability. 2LQFP package.
ORDERING GUIDE Model Temperature Range Package Description Package Option
AD9226ARS –40°C to +85°C 28-Lead Shrink Small Outline (SSOP) RS-28 AD9226AST –40°C to +85°C 48-Lead Thin Plastic Quad Flatpack (LQFP) ST-48 AD9226-EB Evaluation Board (SSOP) AD9226-LQFP-EB Evaluation Board (LQFP)
CAUTION
ESD (electrostatic discharge) sensitive device. Electrostatic charges as high as 4000 V readily accumulate on the human body and test equipment and can discharge without detection. Although
WARNING!
the AD9226 features proprietary ESD protection circuitry, permanent damage may occur on devices subjected to high-energy electrostatic discharges. Therefore, proper ESD precautions are
ESD SENSITIVE DEVICE
recommended to avoid performance degradation or loss of functionality. REV. B –5–
