Datasheet AD7864 (Analog Devices) - 7
| 制造商 | Analog Devices |
| 描述 | High Speed, Low Power, 4-channel Simultaneous Sampling, 12-Bit ADC |
| 页数 / 页 | 29 / 7 — AD7864. ABSOLUTE MAXIMUM RATINGS. Table 3. Parameter Rating. ESD CAUTION |
| 修订版 | D |
| 文件格式/大小 | PDF / 683 Kb |
| 文件语言 | 英语 |

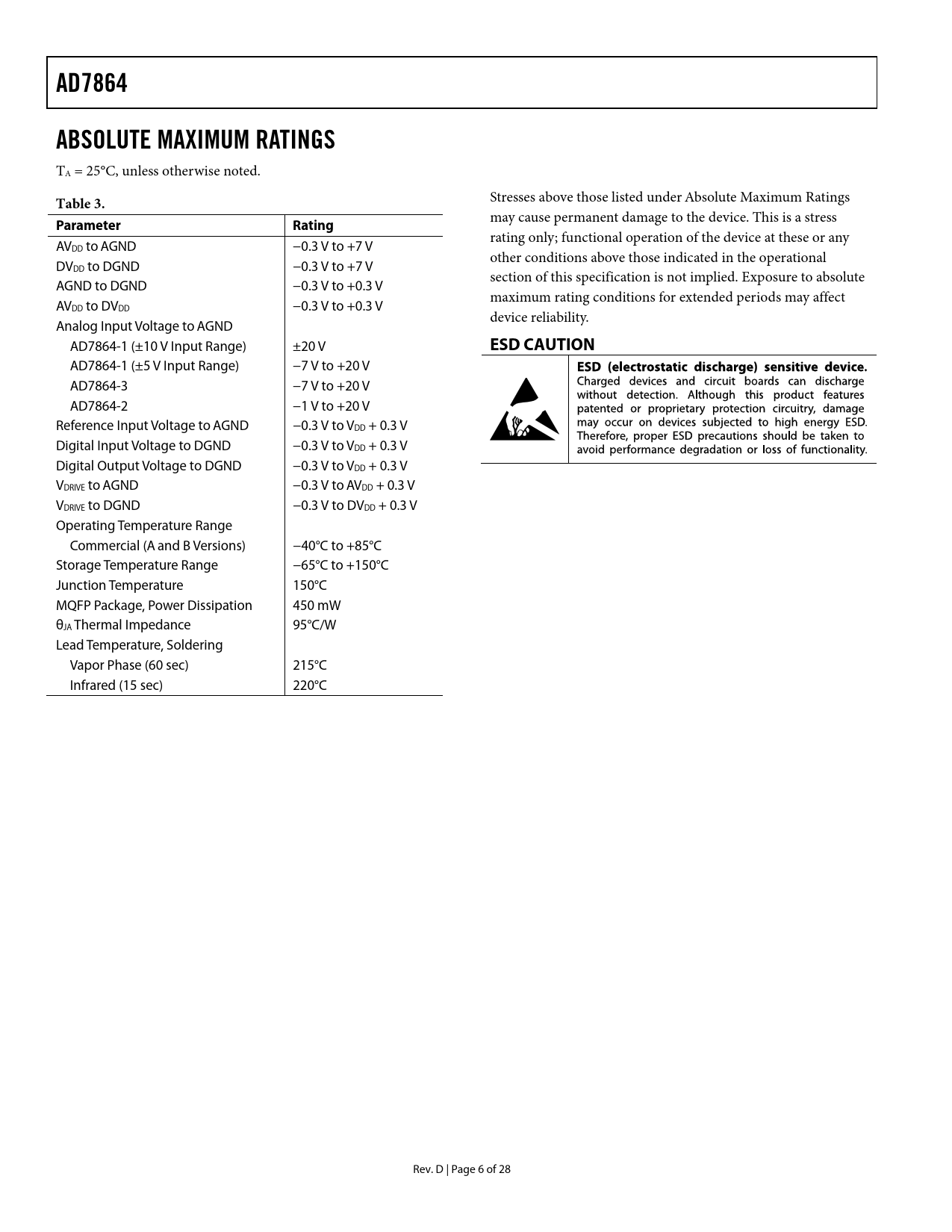

AD7864. ABSOLUTE MAXIMUM RATINGS. Table 3. Parameter Rating. ESD CAUTION
该数据表的模型线
文件文字版本
AD7864 ABSOLUTE MAXIMUM RATINGS
TA = 25°C, unless otherwise noted.
Table 3.
Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress
Parameter Rating
rating only; functional operation of the device at these or any AVDD to AGND −0.3 V to +7 V other conditions above those indicated in the operational DVDD to DGND −0.3 V to +7 V section of this specification is not implied. Exposure to absolute AGND to DGND −0.3 V to +0.3 V maximum rating conditions for extended periods may affect AVDD to DVDD −0.3 V to +0.3 V device reliability. Analog Input Voltage to AGND AD7864-1 (±10 V Input Range) ±20 V
