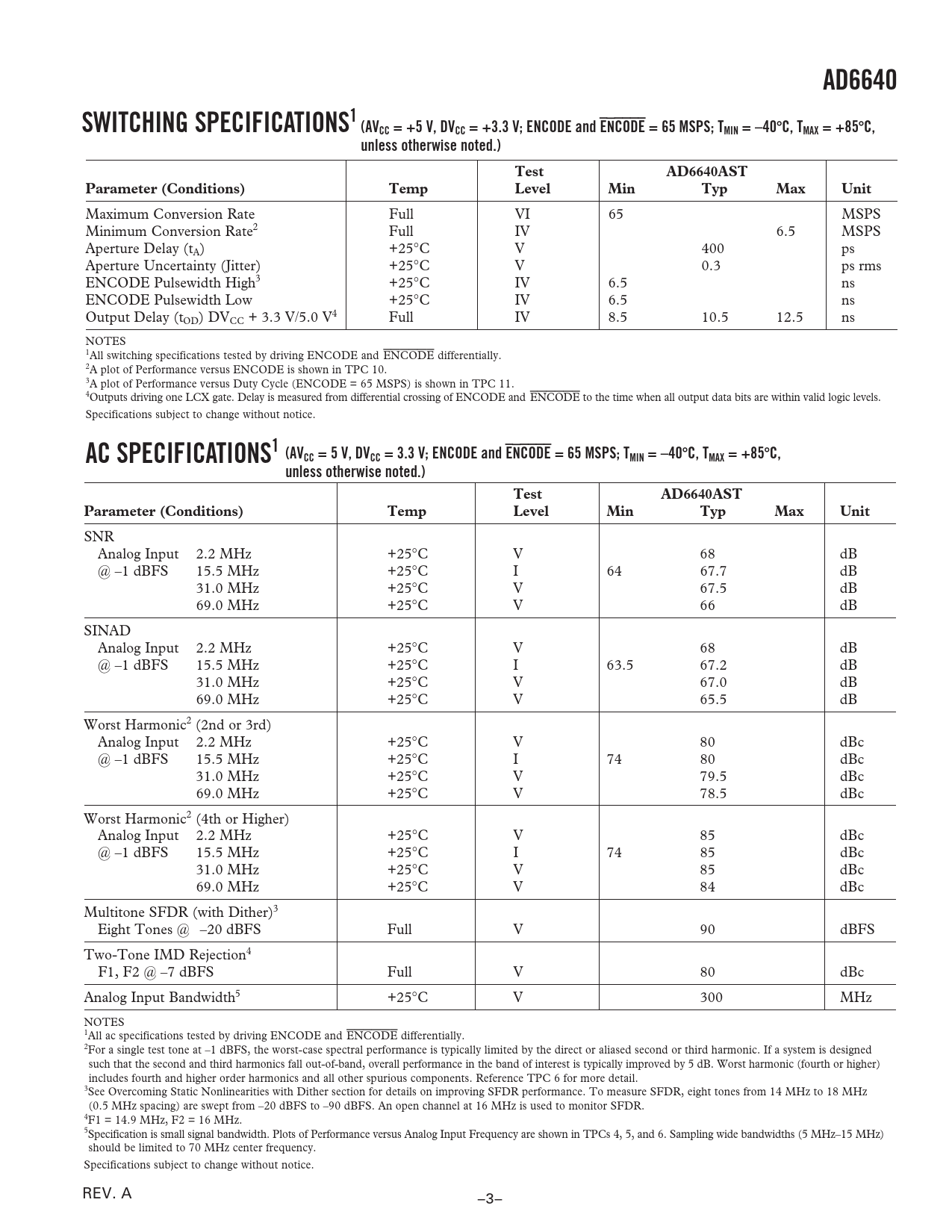

Datasheet AD6640 (Analog Devices) - 4

AD6640 SWITCHING SPECIFICATIONS1 (AVCC = +5 V, DVCC = +3.3 V; ENCODE and ENCODE = 65 MSPS; TMIN = –40
ⴗ
C, TMAX = +85
ⴗ
C, unless otherwise noted.) Test AD6640AST Parameter (Conditions) Temp Level Min Typ Max Unit
Maximum Conversion Rate Full VI 65 MSPS Minimum Conversion Rate2 Full IV 6.5 MSPS Aperture Delay (tA) +25°C V 400 ps Aperture Uncertainty (Jitter) +25°C V 0.3 ps rms ENCODE Pulsewidth High3 +25°C IV 6.5 ns ENCODE Pulsewidth Low +25°C IV 6.5 ns Output Delay (tOD) DVCC + 3.3 V/5.0 V4 Full IV 8.5 10.5 12.5 ns NOTES 1All switching specifications tested by driving ENCODE and ENCODE differentially. 2A plot of Performance versus ENCODE is shown in TPC 10. 3A plot of Performance versus Duty Cycle (ENCODE = 65 MSPS) is shown in TPC 11. 4Outputs driving one LCX gate. Delay is measured from differential crossing of ENCODE and ENCODE to the time when all output data bits are within valid logic levels. Specifications subject to change without notice.
