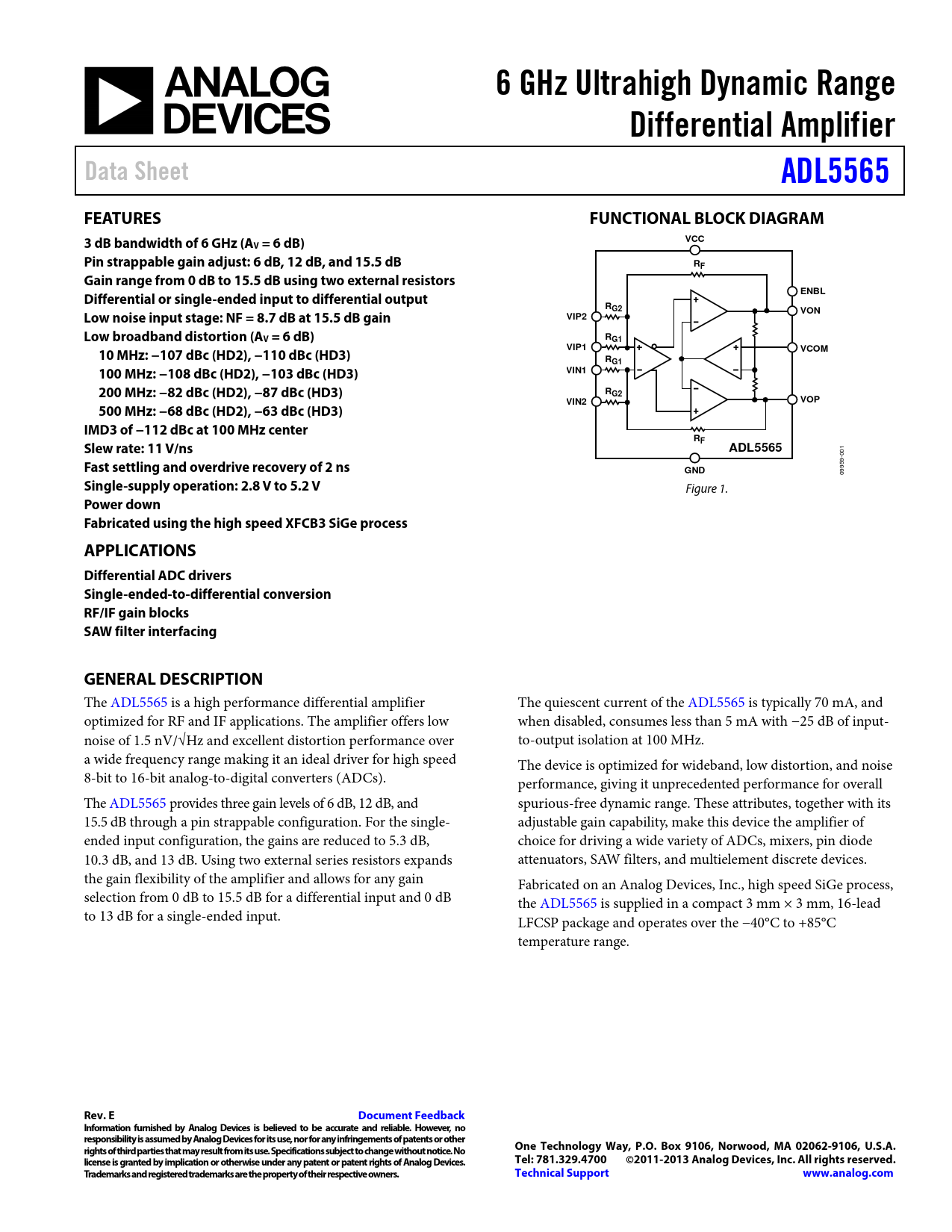

Datasheet ADL5565 (Analog Devices)

6 GHz Ultrahigh Dynamic Range Differential Amplifier Data Sheet ADL5565 FEATURES FUNCTIONAL BLOCK DIAGRAM 3 dB bandwidth of 6 GHz (A VCC V = 6 dB) Pin strappable gain adjust: 6 dB, 12 dB, and 15.5 dB RF Gain range from 0 dB to 15.5 dB using two external resistors Differential or single-ended input to differential output ENBL RG2 Low noise input stage: NF = 8.7 dB at 15.5 dB gain VON VIP2 Low broadband distortion (AV = 6 dB) RG1 VIP1 10 MHz: −107 dBc (HD2), −110 dBc (HD3) VCOM RG1 100 MHz: −108 dBc (HD2), −103 dBc (HD3) VIN1 200 MHz: −82 dBc (HD2), −87 dBc (HD3) RG2 VOP VIN2 500 MHz: −68 dBc (HD2), −63 dBc (HD3) IMD3 of −112 dBc at 100 MHz center R Slew rate: 11 V/ns F ADL5565
001
Fast settling and overdrive recovery of 2 ns GND
09959-
Single-supply operation: 2.8 V to 5.2 V
Figure 1.
Power down Fabricated using the high speed XFCB3 SiGe process APPLICATIONS Differential ADC drivers Single-ended-to-differential conversion RF/IF gain blocks SAW filter interfacing GENERAL DESCRIPTION
The ADL5565 is a high performance differential amplifier The quiescent current of the ADL5565 is typically 70 mA, and optimized for RF and IF applications. The amplifier offers low when disabled, consumes less than 5 mA with −25 dB of input- noise of 1.5 nV/√Hz and excellent distortion performance over to-output isolation at 100 MHz. a wide frequency range making it an ideal driver for high speed The device is optimized for wideband, low distortion, and noise 8-bit to 16-bit analog-to-digital converters (ADCs). performance, giving it unprecedented performance for overall The ADL5565 provides three gain levels of 6 dB, 12 dB, and spurious-free dynamic range. These attributes, together with its 15.5 dB through a pin strappable configuration. For the single- adjustable gain capability, make this device the amplifier of ended input configuration, the gains are reduced to 5.3 dB, choice for driving a wide variety of ADCs, mixers, pin diode 10.3 dB, and 13 dB. Using two external series resistors expands attenuators, SAW filters, and multielement discrete devices. the gain flexibility of the amplifier and allows for any gain Fabricated on an Analog Devices, Inc., high speed SiGe process, selection from 0 dB to 15.5 dB for a differential input and 0 dB the ADL5565 is supplied in a compact 3 mm × 3 mm, 16-lead to 13 dB for a single-ended input. LFCSP package and operates over the −40°C to +85°C temperature range.
Rev. E Document Feedback Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Tel: 781.329.4700 ©2011-2013 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective owners. Technical Support www.analog.com
Document Outline Features Applications Functional Block Diagram General Description Table of Contents Revision History Specifications 3.3 V Specifications 5 V Specifications Absolute Maximum Ratings Thermal Resistance ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Circuit Description Basic Structure Applications information Basic Connections Input and Output Interfacing Single-Ended Input to Differential Output Gain Adjustment and Interfacing ADC Interfacing Layout Considerations Soldering Information and Recommended PCB Land Pattern Evaluation Board Outline Dimensions Ordering Guide
