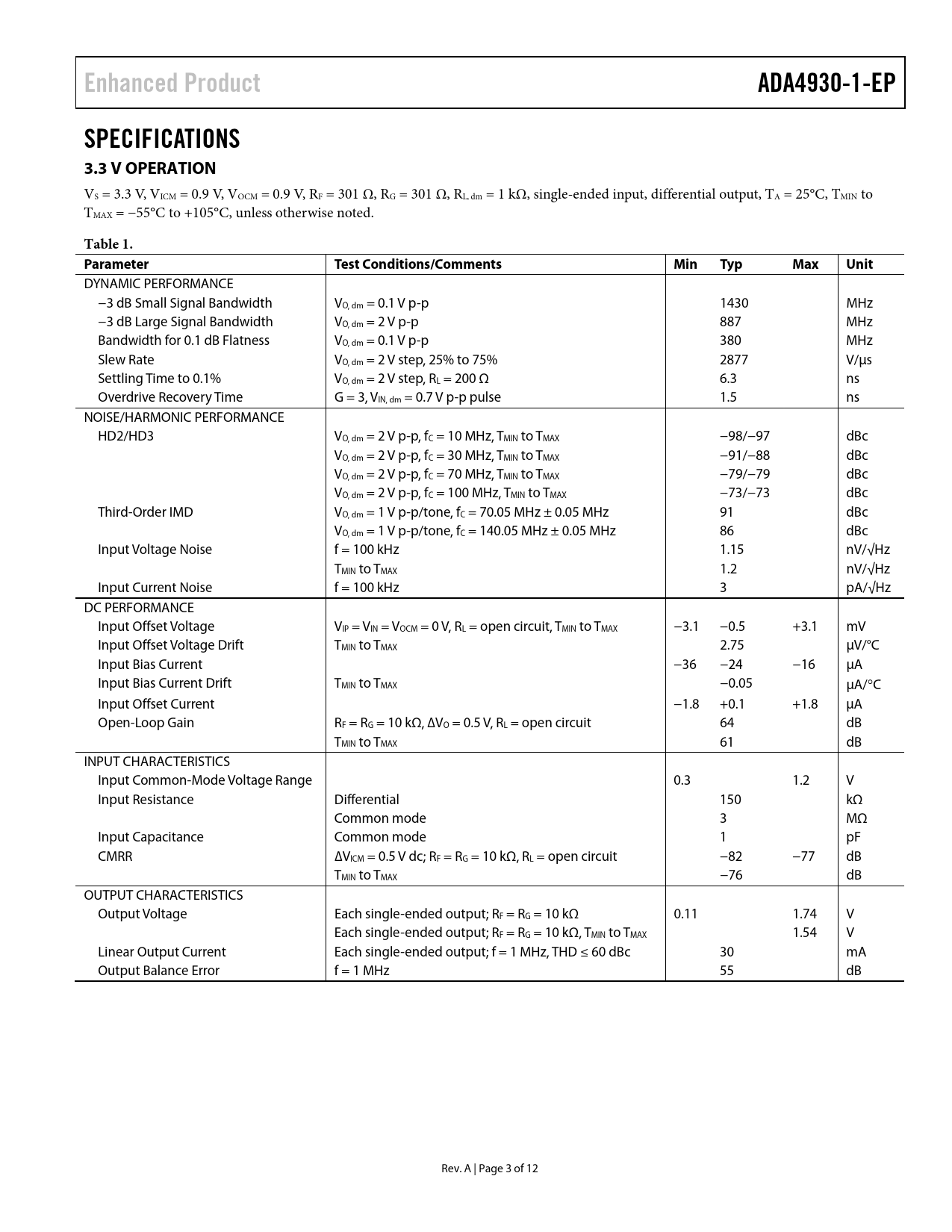

Enhanced Product ADA4930-1-EP SPECIFICATIONS 3.3 V OPERATION
VS = 3.3 V, VICM = 0.9 V, VOCM = 0.9 V, RF = 301 Ω, RG = 301 Ω, RL, dm = 1 kΩ, single-ended input, differential output, TA = 25°C, TMIN to TMAX = −55°C to +105°C, unless otherwise noted.
Table 1. Parameter Test Conditions/Comments Min Typ Max Unit
DYNAMIC PERFORMANCE −3 dB Small Signal Bandwidth VO, dm = 0.1 V p-p 1430 MHz −3 dB Large Signal Bandwidth VO, dm = 2 V p-p 887 MHz Bandwidth for 0.1 dB Flatness VO, dm = 0.1 V p-p 380 MHz Slew Rate VO, dm = 2 V step, 25% to 75% 2877 V/µs Settling Time to 0.1% VO, dm = 2 V step, RL = 200 Ω 6.3 ns Overdrive Recovery Time G = 3, VIN, dm = 0.7 V p-p pulse 1.5 ns NOISE/HARMONIC PERFORMANCE HD2/HD3 VO, dm = 2 V p-p, fC = 10 MHz, TMIN to TMAX −98/−97 dBc VO, dm = 2 V p-p, fC = 30 MHz, TMIN to TMAX −91/−88 dBc VO, dm = 2 V p-p, fC = 70 MHz, TMIN to TMAX −79/−79 dBc VO, dm = 2 V p-p, fC = 100 MHz, TMIN to TMAX −73/−73 dBc Third-Order IMD VO, dm = 1 V p-p/tone, fC = 70.05 MHz ± 0.05 MHz 91 dBc VO, dm = 1 V p-p/tone, fC = 140.05 MHz ± 0.05 MHz 86 dBc Input Voltage Noise f = 100 kHz 1.15 nV/√Hz TMIN to TMAX 1.2 nV/√Hz Input Current Noise f = 100 kHz 3 pA/√Hz DC PERFORMANCE Input Offset Voltage VIP = VIN = VOCM = 0 V, RL = open circuit, TMIN to TMAX −3.1 −0.5 +3.1 mV Input Offset Voltage Drift TMIN to TMAX 2.75 µV/°C Input Bias Current −36 −24 −16 µA Input Bias Current Drift TMIN to TMAX −0.05 µA/°C Input Offset Current −1.8 +0.1 +1.8 µA Open-Loop Gain RF = RG = 10 kΩ, ∆VO = 0.5 V, RL = open circuit 64 dB TMIN to TMAX 61 dB INPUT CHARACTERISTICS Input Common-Mode Voltage Range 0.3 1.2 V Input Resistance Differential 150 kΩ Common mode 3 MΩ Input Capacitance Common mode 1 pF CMRR ∆VICM = 0.5 V dc; RF = RG = 10 kΩ, RL = open circuit −82 −77 dB TMIN to TMAX −76 dB OUTPUT CHARACTERISTICS Output Voltage Each single-ended output; RF = RG = 10 kΩ 0.11 1.74 V Each single-ended output; RF = RG = 10 kΩ, TMIN to TMAX 1.54 V Linear Output Current Each single-ended output; f = 1 MHz, THD ≤ 60 dBc 30 mA Output Balance Error f = 1 MHz 55 dB Rev. A | Page 3 of 12 Document Outline Features Enhanced Product Features Applications General Description Functional Block Diagrams Revision History Specifications 3.3 V Operation 3.3 V VOCM to VO, cm Performance 3.3 V General Performance 5 V Operation 5 V VOCM to VO, cm Performance 5 V General Performance Absolute Maximum Ratings Thermal Resistance Maximum Power Dissipation ESD Caution Pin Configuration and Function Descriptions Outline Dimensions Ordering Guide
