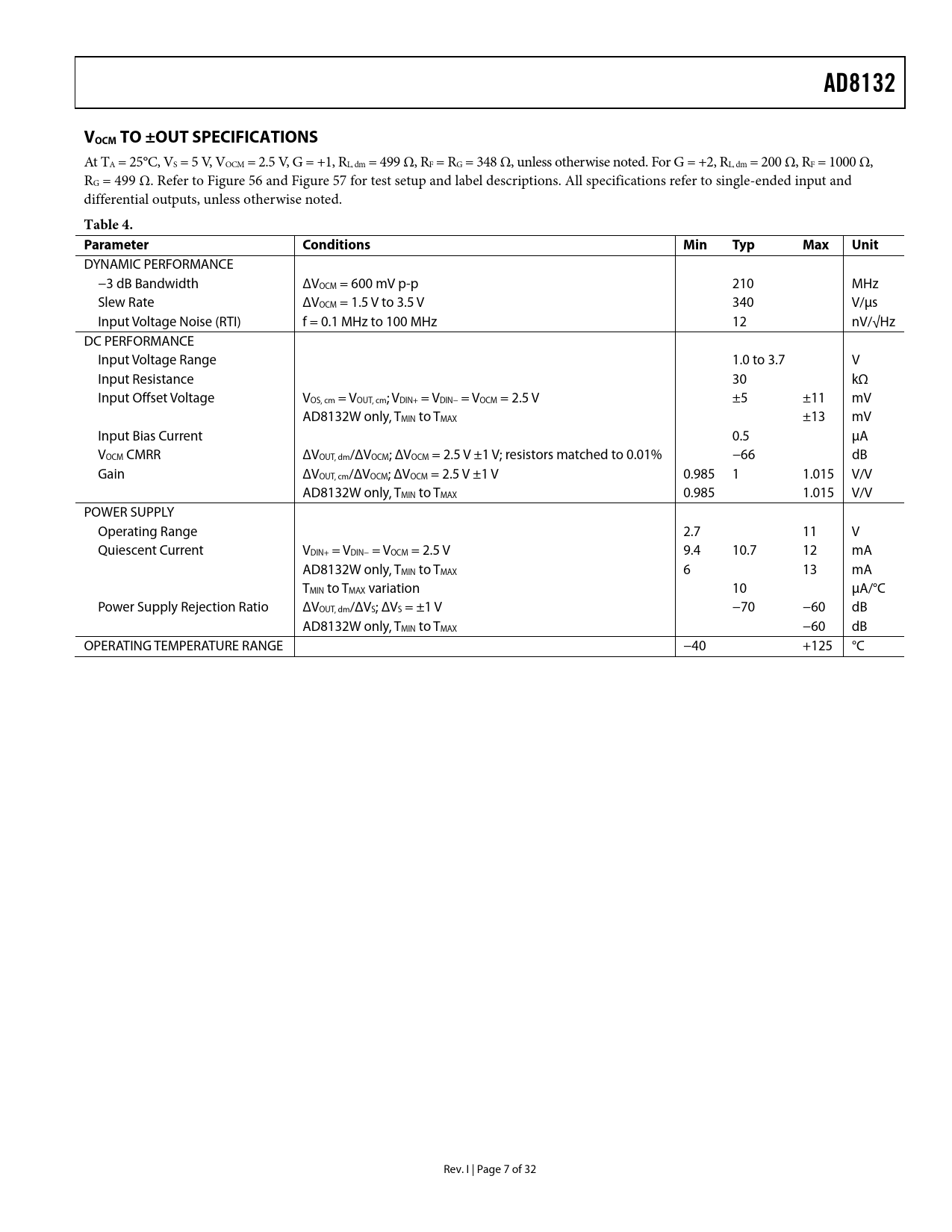

AD8132. VOCM TO ±OUT SPECIFICATIONS. Table 4. Parameter Conditions. Min. Typ. Max. Unit
该数据表的模型线
文件文字版本
link to page 21 link to page 21
AD8132 VOCM TO ±OUT SPECIFICATIONS
At TA = 25°C, VS = 5 V, VOCM = 2.5 V, G = +1, RL, dm = 499 Ω, RF = RG = 348 Ω, unless otherwise noted. For G = +2, RL, dm = 200 Ω, RF = 1000 Ω, RG = 499 Ω. Refer to Figure 56 and Figure 57 for test setup and label descriptions. All specifications refer to single-ended input and differential outputs, unless otherwise noted.
Table 4. Parameter Conditions Min Typ Max Unit
DYNAMIC PERFORMANCE −3 dB Bandwidth ΔVOCM = 600 mV p-p 210 MHz Slew Rate ΔVOCM = 1.5 V to 3.5 V 340 V/μs Input Voltage Noise (RTI) f = 0.1 MHz to 100 MHz 12 nV/√Hz DC PERFORMANCE Input Voltage Range 1.0 to 3.7 V Input Resistance 30 kΩ Input Offset Voltage VOS, cm = VOUT, cm; VDIN+ = VDIN− = VOCM = 2.5 V ±5 ±11 mV AD8132W only, TMIN to TMAX ±13 mV Input Bias Current 0.5 μA VOCM CMRR ΔVOUT, dm/ΔVOCM; ΔVOCM = 2.5 V ±1 V; resistors matched to 0.01% −66 dB Gain ΔVOUT, cm/ΔVOCM; ΔVOCM = 2.5 V ±1 V 0.985 1 1.015 V/V AD8132W only, TMIN to TMAX 0.985 1.015 V/V POWER SUPPLY Operating Range 2.7 11 V Quiescent Current VDIN+ = VDIN− = VOCM = 2.5 V 9.4 10.7 12 mA AD8132W only, TMIN to TMAX 6 13 mA TMIN to TMAX variation 10 μA/°C Power Supply Rejection Ratio ΔVOUT, dm/ΔVS; ΔVS = ±1 V −70 −60 dB AD8132W only, TMIN to TMAX −60 dB OPERATING TEMPERATURE RANGE −40 +125 °C Rev. I | Page 7 of 32 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION CONNECTION DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ±DIN TO ±OUT SPECIFICATIONS VOCM TO ±OUT SPECIFICATIONS ±DIN TO ±OUT SPECIFICATIONS VOCM TO ±OUT SPECIFICATIONS ±DIN TO ±OUT SPECIFICATIONS VOCM TO ±OUT SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE MAXIMUM POWER DISSIPATION ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS OPERATIONAL DESCRIPTION DEFINITION OF TERMS Differential Voltage Common-Mode Voltage BASIC CIRCUIT OPERATION THEORY OF OPERATION GENERAL USAGE OF THE AD8132 DIFFERENTIAL AMPLIFIER WITHOUT RESISTORS (HIGH INPUT IMPEDANCE INVERTING AMPLIFIER) OTHER β2 = 1 CIRCUITS VARYING β2 β1 = 0 ESTIMATING THE OUTPUT NOISE VOLTAGE CALCULATING INPUT IMPEDANCE OF THE APPLICATION CIRCUIT INPUT COMMON-MODE VOLTAGE RANGE IN SINGLE-SUPPLY APPLICATIONS SETTING THE OUTPUT COMMON-MODE VOLTAGE DRIVING A CAPACITIVE LOAD OPEN-LOOP GAIN AND PHASE LAYOUT, GROUNDING, AND BYPASSING CIRCUITS APPLICATIONS INFORMATION ANALOG-TO-DIGITAL DRIVER BALANCED CABLE DRIVER TRANSMIT EQUALIZER LOW-PASS DIFFERENTIAL FILTER HIGH COMMON-MODE OUTPUT IMPEDANCE AMPLIFIER FULL-WAVE RECTIFIER AUTOMOTIVE PRODUCTS OUTLINE DIMENSIONS ORDERING GUIDE
