Datasheet AD8220 (Analog Devices) - 8

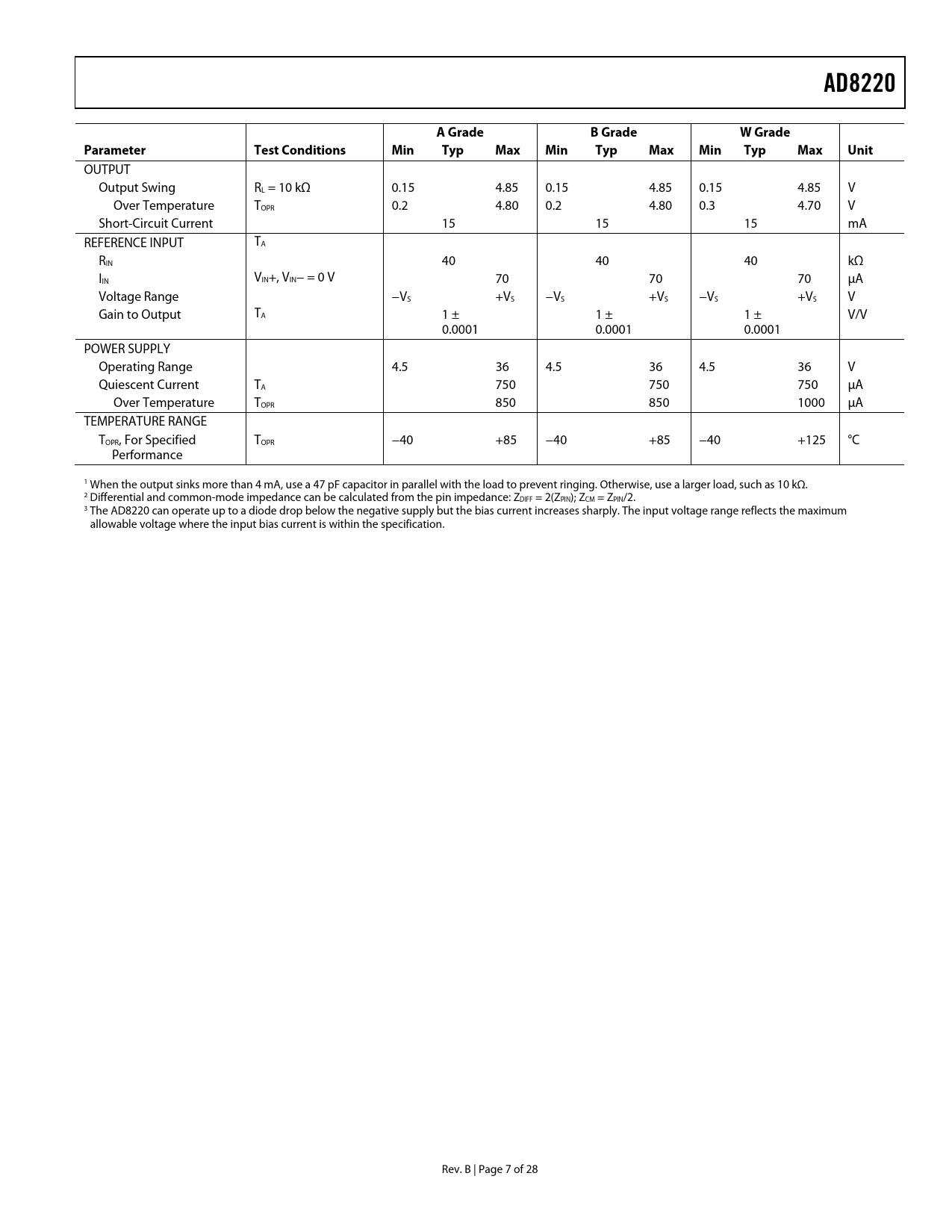

AD8220 A Grade B Grade W Grade Parameter Test Conditions Min Typ Max Min Typ Max Min Typ Max Unit
OUTPUT Output Swing RL = 10 kΩ 0.15 4.85 0.15 4.85 0.15 4.85 V Over Temperature TOPR 0.2 4.80 0.2 4.80 0.3 4.70 V Short-Circuit Current 15 15 15 mA REFERENCE INPUT TA RIN 40 40 40 kΩ IIN VIN+, VIN− = 0 V 70 70 70 μA Voltage Range −VS +VS −VS +VS −VS +VS V Gain to Output TA 1 ± 1 ± 1 ± V/V 0.0001 0.0001 0.0001 POWER SUPPLY Operating Range 4.5 36 4.5 36 4.5 36 V Quiescent Current TA 750 750 750 μA Over Temperature TOPR 850 850 1000 μA TEMPERATURE RANGE TOPR, For Specified TOPR −40 +85 −40 +85 −40 +125 °C Performance 1 When the output sinks more than 4 mA, use a 47 pF capacitor in parallel with the load to prevent ringing. Otherwise, use a larger load, such as 10 kΩ. 2 Differential and common-mode impedance can be calculated from the pin impedance: ZDIFF = 2(ZPIN); ZCM = ZPIN/2. 3 The AD8220 can operate up to a diode drop below the negative supply but the bias current increases sharply. The input voltage range reflects the maximum allowable voltage where the input bias current is within the specification. Rev. B | Page 7 of 28 Document Outline Features Applications Pin Configuration General Description Revision History Specifications Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Theory of Operation Gain Selection Layout Common-Mode Rejection Ratio (CMRR) Grounding Reference Terminal Power Supply Regulation and Bypassing Input Bias Current Return Path Input Protection RF Interference Common-Mode Input Voltage Range Driving an ADC Applications Information AC-Coupled Instrumentation Amplifier Differential Output Electrocardiogram Signal Conditioning Outline Dimensions Ordering Guide Automotive Products
