ADuM4190. Data Sheet. ABSOLUTE MAXIMUM RATINGS. Table 7. Parameter. Rating. ESD CAUTION. Table 8. Maximum Continuous Working Voltage1
该数据表的模型线
文件文字版本
link to page 17 link to page 7 link to page 7 link to page 7

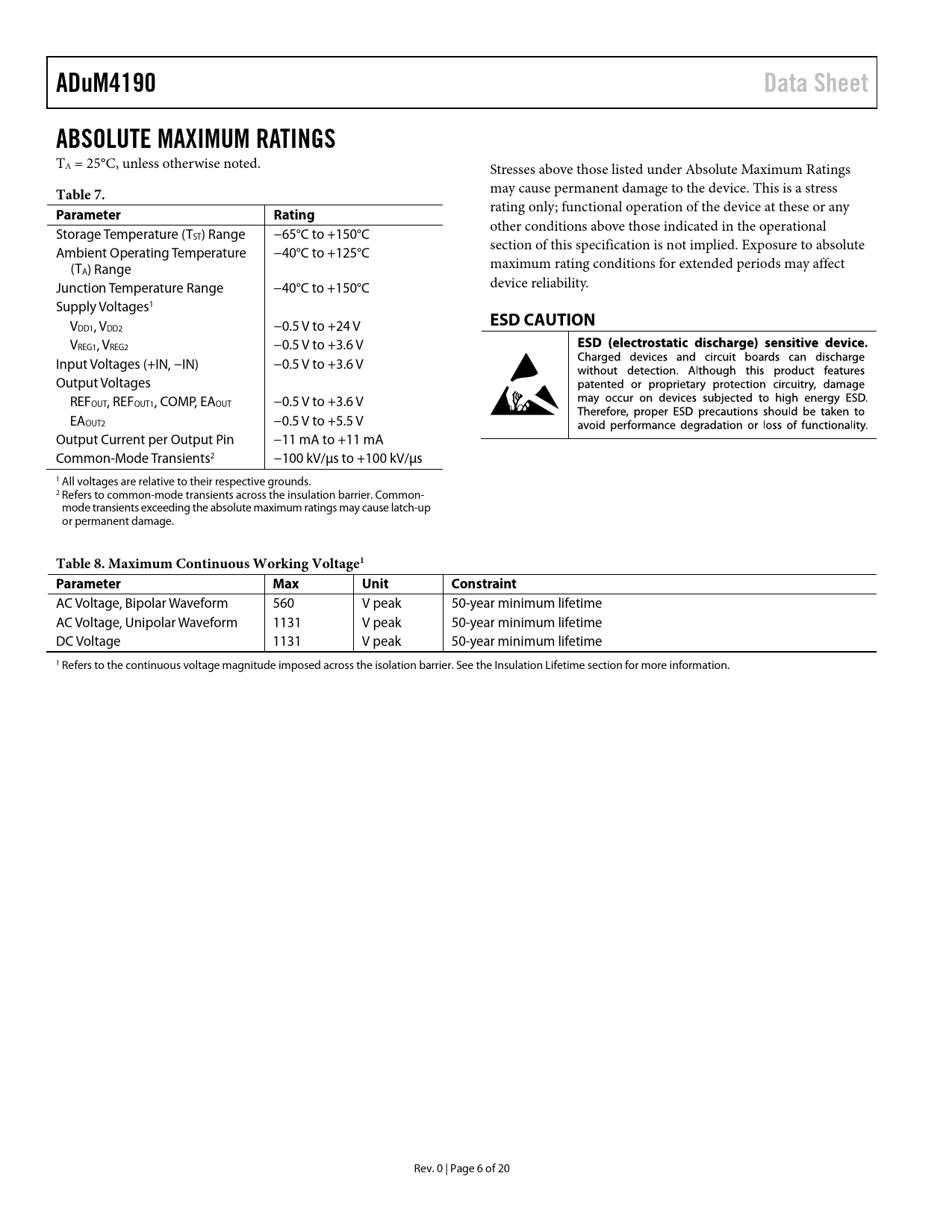

ADuM4190 Data Sheet ABSOLUTE MAXIMUM RATINGS
TA = 25°C, unless otherwise noted. Stresses above those listed under Absolute Maximum Ratings
Table 7.
may cause permanent damage to the device. This is a stress
Parameter Rating
rating only; functional operation of the device at these or any other conditions above those indicated in the operational Storage Temperature (TST) Range −65°C to +150°C section of this specification is not implied. Exposure to absolute Ambient Operating Temperature −40°C to +125°C (T maximum rating conditions for extended periods may affect A) Range Junction Temperature Range −40°C to +150°C device reliability. Supply Voltages1 V
ESD CAUTION
DD1, VDD2 −0.5 V to +24 V VREG1, VREG2 −0.5 V to +3.6 V Input Voltages (+IN, −IN) −0.5 V to +3.6 V Output Voltages REFOUT, REFOUT1, COMP, EAOUT −0.5 V to +3.6 V EAOUT2 −0.5 V to +5.5 V Output Current per Output Pin −11 mA to +11 mA Common-Mode Transients2 −100 kV/µs to +100 kV/µs 1 All voltages are relative to their respective grounds. 2 Refers to common-mode transients across the insulation barrier. Common- mode transients exceeding the absolute maximum ratings may cause latch-up or permanent damage.
Table 8. Maximum Continuous Working Voltage1 Parameter Max Unit Constraint
AC Voltage, Bipolar Waveform 560 V peak 50-year minimum lifetime AC Voltage, Unipolar Waveform 1131 V peak 50-year minimum lifetime DC Voltage 1131 V peak 50-year minimum lifetime 1 Refers to the continuous voltage magnitude imposed across the isolation barrier. See the Insulation Lifetime section for more information. Rev. 0 | Page 6 of 20 Document Outline Features Applications General Description Functional Block Diagram Table of Contents Revision History Specifications Package Characteristics Regulatory Information Insulation and Safety Related Specifications Recommended Operating Conditions DIN V VDE V 0884-10 (VDE V 0884-10):2006-12 Insulation Characteristics Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Test Circuits Applications Information Accuracy Circuit Operation Isolated Amplifier Circuit Operation Application Block Diagram Setting the Output Voltage DOSA Module Application DC Correctness and Magnetic Field Immunity Insulation Lifetime Outline Dimensions Ordering Guide
