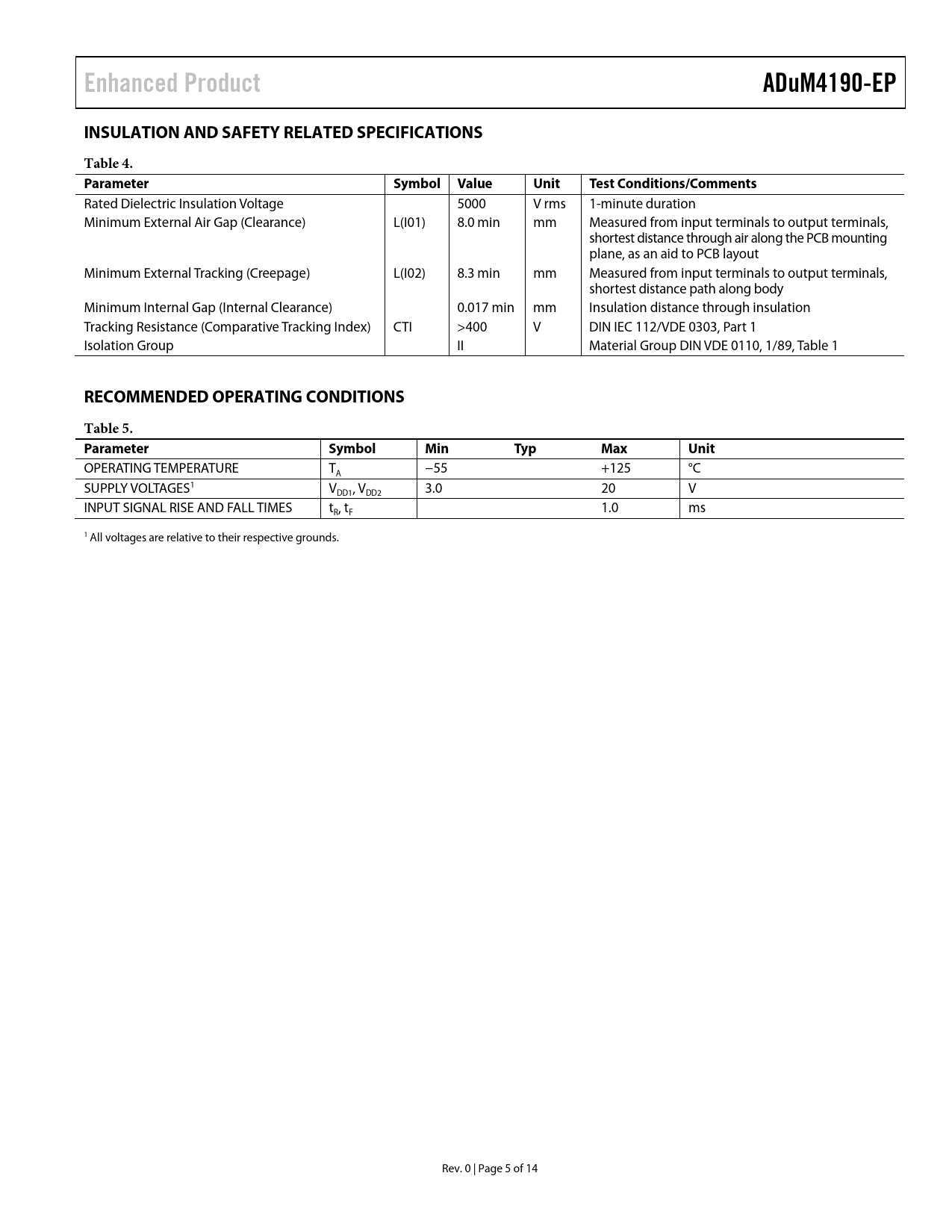

Enhanced Product ADuM4190-EP INSULATION AND SAFETY RELATED SPECIFICATIONS Table 4. Parameter Symbol Value Unit Test Conditions/Comments
Rated Dielectric Insulation Voltage 5000 V rms 1-minute duration Minimum External Air Gap (Clearance) L(I01) 8.0 min mm Measured from input terminals to output terminals, shortest distance through air along the PCB mounting plane, as an aid to PCB layout Minimum External Tracking (Creepage) L(I02) 8.3 min mm Measured from input terminals to output terminals, shortest distance path along body Minimum Internal Gap (Internal Clearance) 0.017 min mm Insulation distance through insulation Tracking Resistance (Comparative Tracking Index) CTI >400 V DIN IEC 112/VDE 0303, Part 1 Isolation Group II Material Group DIN VDE 0110, 1/89, Table 1
RECOMMENDED OPERATING CONDITIONS Table 5. Parameter Symbol Min Typ Max Unit
OPERATING TEMPERATURE T −55 +125 °C A SUPPLY VOLTAGES1 V , V 3.0 20 V DD1 DD2 INPUT SIGNAL RISE AND FALL TIMES t , t 1.0 ms R F 1 All voltages are relative to their respective grounds. Rev. 0 | Page 5 of 14 Document Outline FEATURES ENHANCED FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS PACKAGE CHARACTERISTICS REGULATORY INFORMATION INSULATION AND SAFETY RELATED SPECIFICATIONS RECOMMENDED OPERATING CONDITIONS DIN V VDE V 0884-10 (VDE V 0884-10):2006-12 INSULATION CHARACTERISTICS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE
