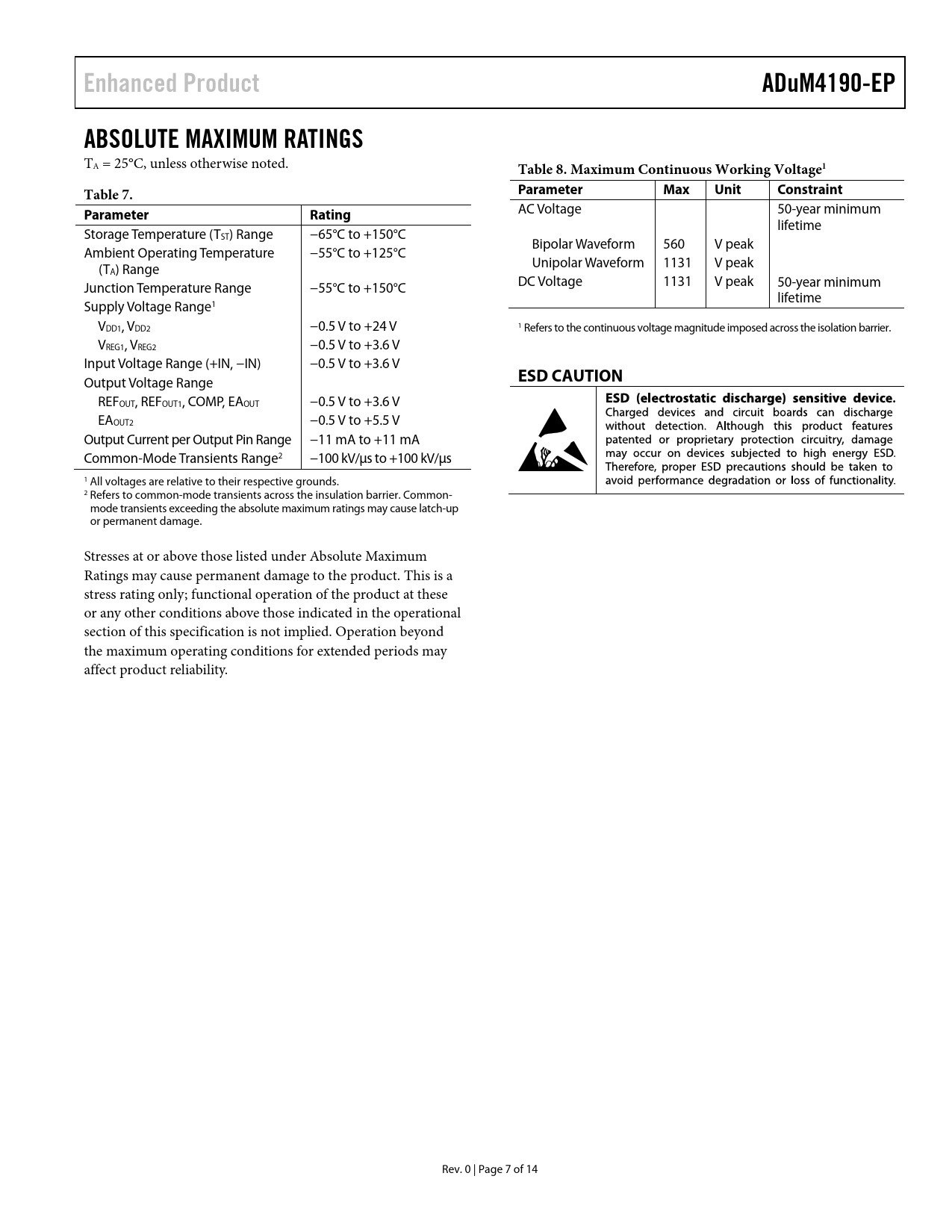

Enhanced Product ADuM4190-EP ABSOLUTE MAXIMUM RATINGS
TA = 25°C, unless otherwise noted.
Table 8. Maximum Continuous Working Voltage1 Table 7. Parameter Max Unit Constraint Parameter Rating
AC Voltage 50-year minimum lifetime Storage Temperature (TST) Range −65°C to +150°C Bipolar Waveform 560 V peak Ambient Operating Temperature −55°C to +125°C (T Unipolar Waveform 1131 V peak A) Range Junction Temperature Range −55°C to +150°C DC Voltage 1131 V peak 50-year minimum lifetime Supply Voltage Range1 VDD1, VDD2 −0.5 V to +24 V 1 Refers to the continuous voltage magnitude imposed across the isolation barrier. VREG1, VREG2 −0.5 V to +3.6 V Input Voltage Range (+IN, −IN) −0.5 V to +3.6 V
ESD CAUTION
Output Voltage Range REFOUT, REFOUT1, COMP, EAOUT −0.5 V to +3.6 V EAOUT2 −0.5 V to +5.5 V Output Current per Output Pin Range −11 mA to +11 mA Common-Mode Transients Range2 −100 kV/μs to +100 kV/μs 1 All voltages are relative to their respective grounds. 2 Refers to common-mode transients across the insulation barrier. Common- mode transients exceeding the absolute maximum ratings may cause latch-up or permanent damage. Stresses at or above those listed under Absolute Maximum Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these or any other conditions above those indicated in the operational section of this specification is not implied. Operation beyond the maximum operating conditions for extended periods may affect product reliability.
