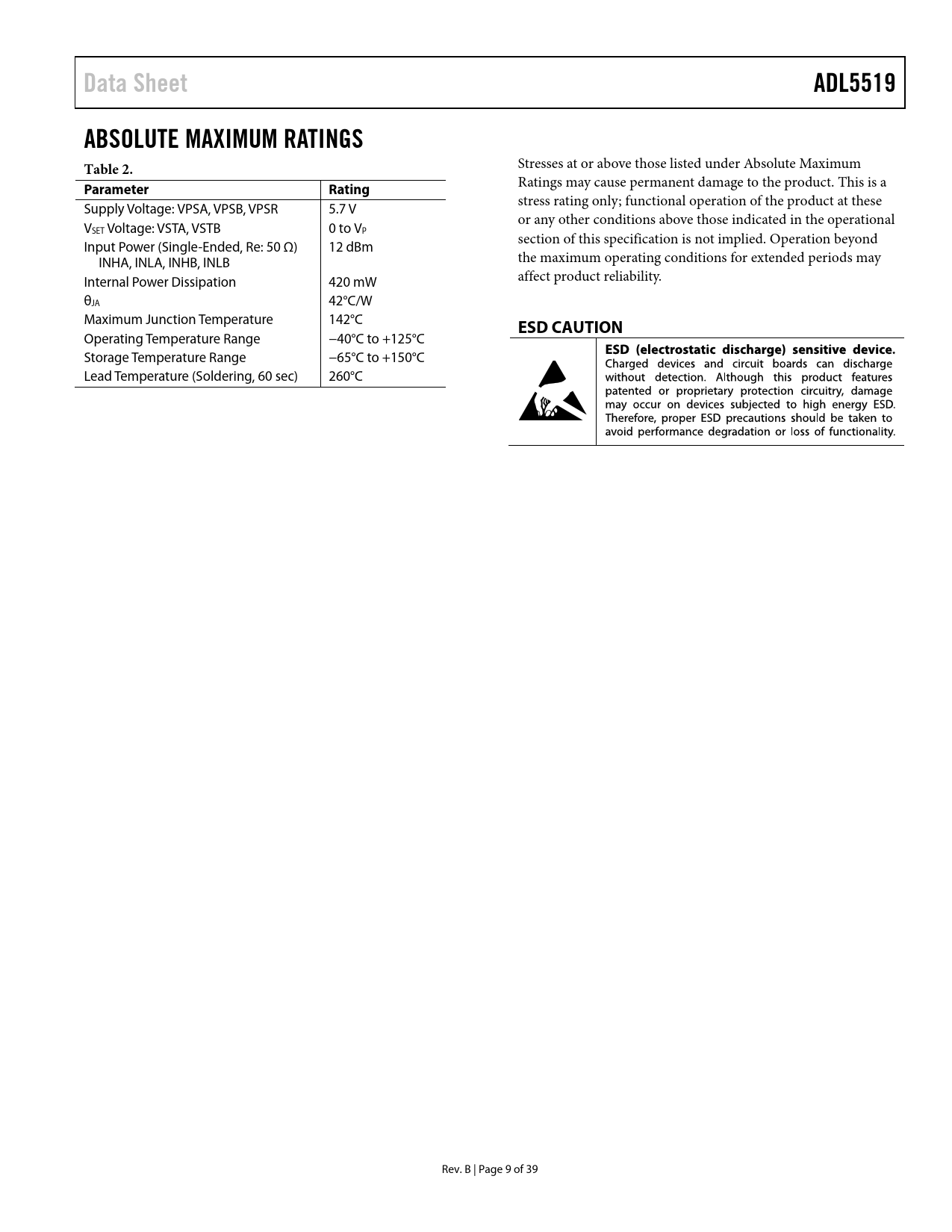

Data Sheet. ADL5519. ABSOLUTE MAXIMUM RATINGS Table 2. Parameter. Rating. ESD CAUTION
文件文字版本
Data Sheet ADL5519 ABSOLUTE MAXIMUM RATINGS Table 2.
Stresses at or above those listed under Absolute Maximum
Parameter Rating
Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these Supply Voltage: VPSA, VPSB, VPSR 5.7 V or any other conditions above those indicated in the operational VSET Voltage: VSTA, VSTB 0 to VP section of this specification is not implied. Operation beyond Input Power (Single-Ended, Re: 50 Ω) 12 dBm INHA, INLA, INHB, INLB the maximum operating conditions for extended periods may Internal Power Dissipation 420 mW affect product reliability. θJA 42°C/W Maximum Junction Temperature 142°C
ESD CAUTION
Operating Temperature Range −40°C to +125°C Storage Temperature Range −65°C to +150°C Lead Temperature (Soldering, 60 sec) 260°C Rev. B | Page 9 of 39 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION USING THE ADL5519 BASIC CONNECTIONS INPUT SIGNAL COUPLING TEMPERATURE SENSOR INTERFACE VREF INTERFACE POWER-DOWN INTERFACE SETPOINT INTERFACE—VSTA, VSTB OUTPUT INTERFACE—OUTA, OUTB DIFFERENCE OUTPUT—OUTP, OUTN DESCRIPTION OF CHARACTERIZATION BASIS FOR ERROR CALCULATIONS DEVICE CALIBRATION ADJUSTING ACCURACY THROUGH CHOICE OF CALIBRATION POINTS TEMPERATURE COMPENSATION ADJUSTMENT ALTERING THE SLOPE CHANNEL ISOLATION OUTPUT FILTERING PACKAGE CONSIDERATIONS OPERATION ABOVE 8 GHz APPLICATIONS INFORMATION MEASUREMENT MODE CONTROLLER MODE AUTOMATIC GAIN CONTROL GAIN-STABLE TRANSMITTER/RECEIVER MEASURING VSWR EVALUATION BOARD CONFIGURATION OPTIONS EVALUATION BOARD SCHEMATIC AND ARTWORK OUTLINE DIMENSIONS ORDERING GUIDE
