Datasheet AD8312 (Analog Devices) - 7
| 制造商 | Analog Devices |
| 描述 | 50 MHz TO 3.5 GHz, 45 dB RF Detector |
| 页数 / 页 | 21 / 7 — AD8312. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 2. Parameter. Value. … |
| 修订版 | B |
| 文件格式/大小 | PDF / 1.4 Mb |
| 文件语言 | 英语 |

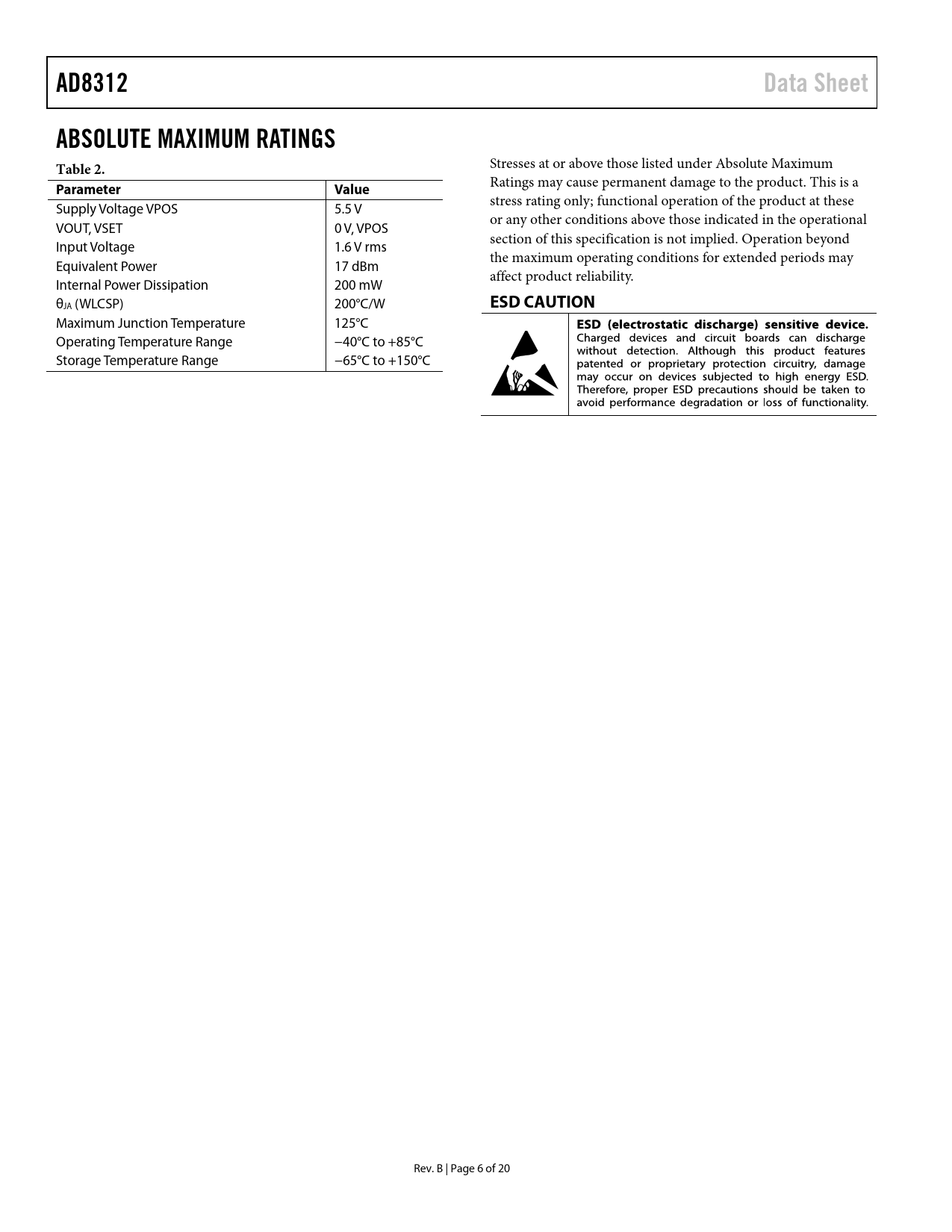

AD8312. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 2. Parameter. Value. ESD CAUTION
文件文字版本
AD8312 Data Sheet ABSOLUTE MAXIMUM RATINGS Table 2.
Stresses at or above those listed under Absolute Maximum
Parameter Value
Ratings may cause permanent damage to the product. This is a Supply Voltage VPOS 5.5 V stress rating only; functional operation of the product at these or any other conditions above those indicated in the operational VOUT, VSET 0 V, VPOS section of this specification is not implied. Operation beyond Input Voltage 1.6 V rms the maximum operating conditions for extended periods may Equivalent Power 17 dBm affect product reliability. Internal Power Dissipation 200 mW θJA (WLCSP) 200°C/W
ESD CAUTION
Maximum Junction Temperature 125°C Operating Temperature Range −40°C to +85°C Storage Temperature Range −65°C to +150°C Rev. B | Page 6 of 20 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS GENERAL DESCRIPTION APPLICATIONS INFORMATION BASIC CONNECTIONS TRANSFER FUNCTION IN TERMS OF SLOPE AND INTERCEPT Filter Capacitor Input Coupling Options Increasing the Logarithmic Slope Effect of Waveform Type on Intercept Temperature Drift Operation Above 2.5 GHz Device Handling Evaluation Board OUTLINE DIMENSIONS ORDERING GUIDE
