Datasheet AD8361 (Analog Devices) - 5
| 制造商 | Analog Devices |
| 描述 | LF to 2.5 GHz TruPwr™ Detector |
| 页数 / 页 | 23 / 5 — AD8361. Data Sheet. ABSOLUTE MAXIMUM RATINGS. Table 2. Parameter. Rating. … |
| 修订版 | F |
| 文件格式/大小 | PDF / 611 Kb |
| 文件语言 | 英语 |

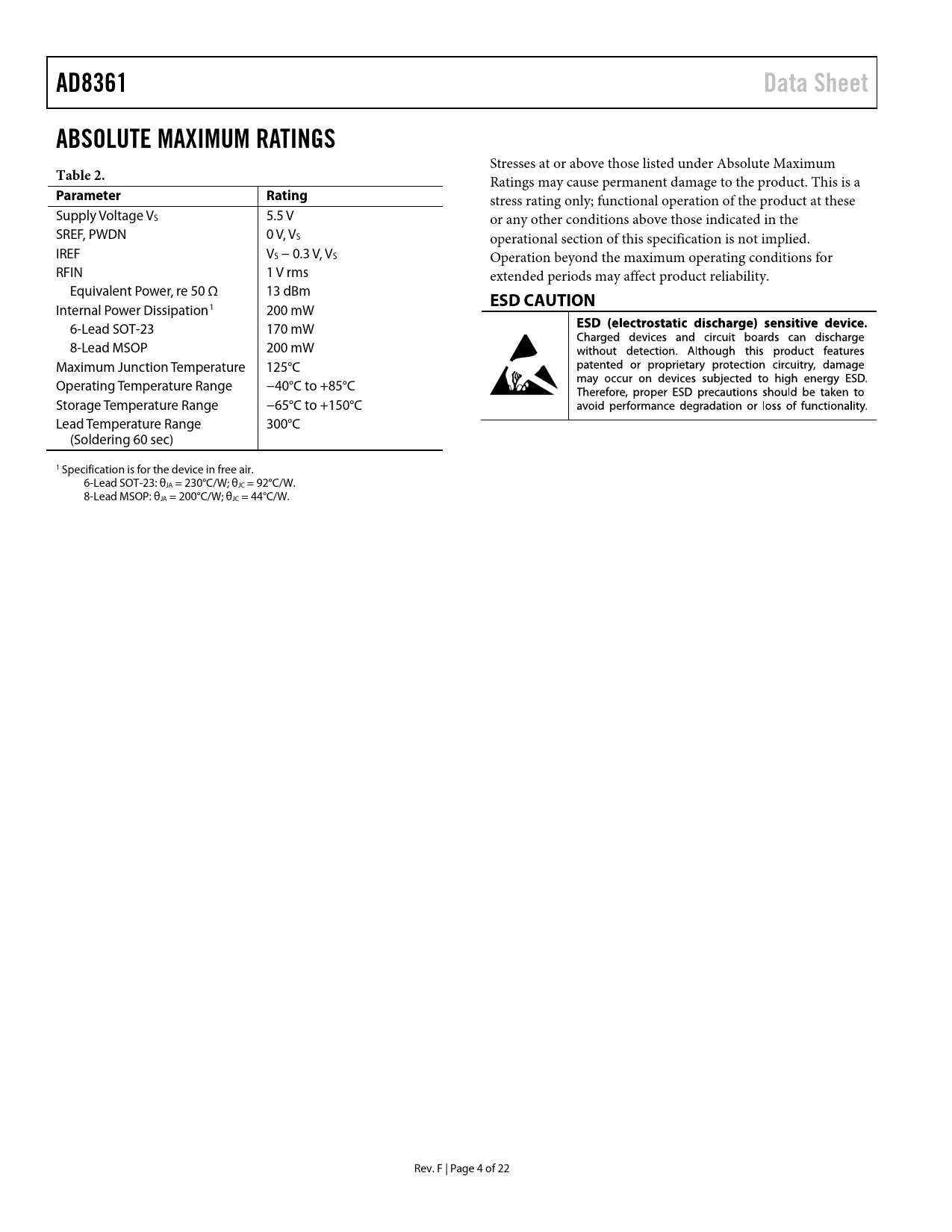

AD8361. Data Sheet. ABSOLUTE MAXIMUM RATINGS. Table 2. Parameter. Rating. ESD CAUTION
该数据表的模型线
AD8361
文件文字版本
AD8361 Data Sheet ABSOLUTE MAXIMUM RATINGS
Stresses at or above those listed under Absolute Maximum
Table 2.
Ratings may cause permanent damage to the product. This is a
Parameter Rating
stress rating only; functional operation of the product at these Supply Voltage VS 5.5 V or any other conditions above those indicated in the SREF, PWDN 0 V, VS operational section of this specification is not implied. IREF VS − 0.3 V, VS Operation beyond the maximum operating conditions for RFIN 1 V rms extended periods may affect product reliability. Equivalent Power, re 50 Ω 13 dBm
