STANDARD. 5962-90955. MICROCIRCUIT DRAWING

STANDARD 5962-90955 MICROCIRCUIT DRAWING

该数据表的模型线

文件文字版本

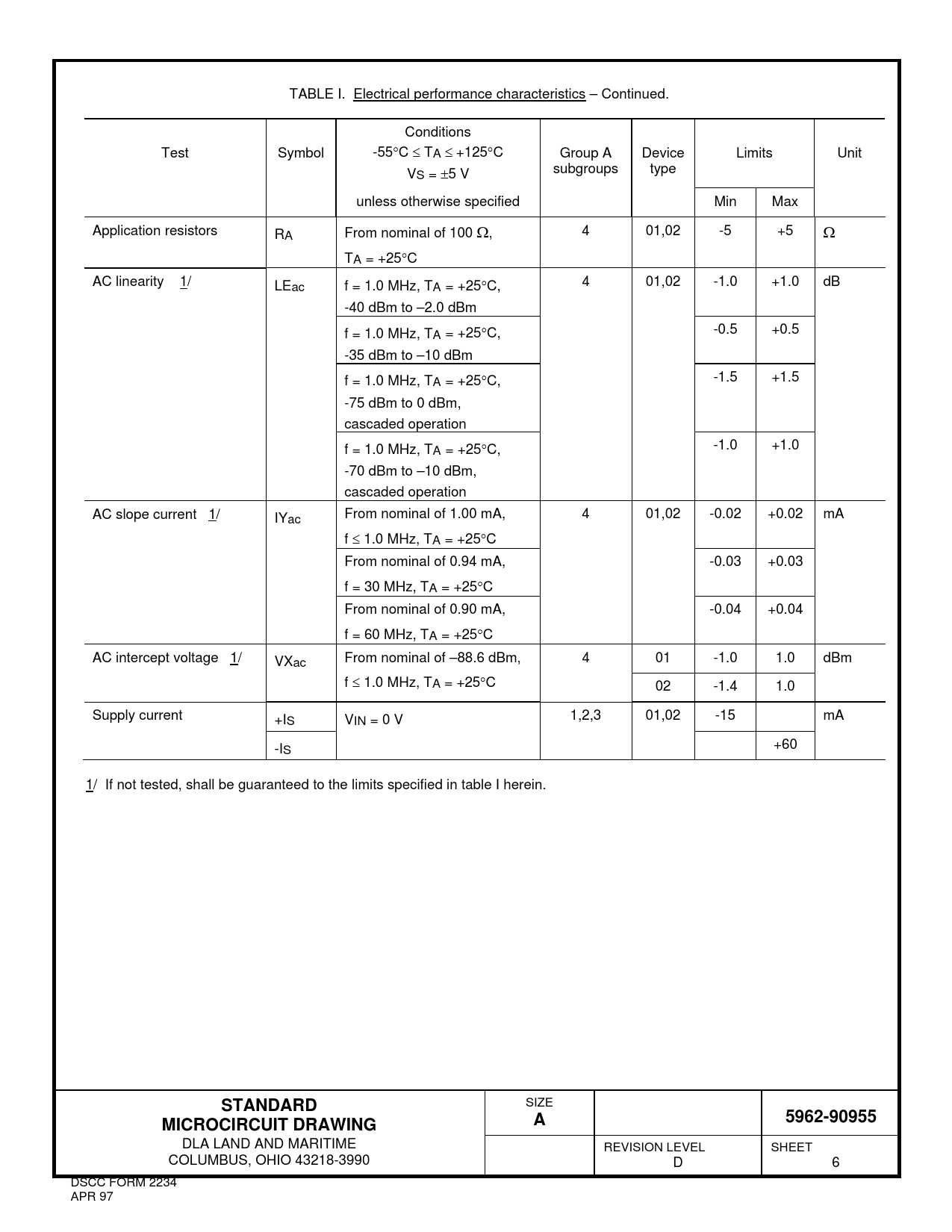

TABLE I. Electrical performance characteristics – Continued. Conditions Test Symbol -55C  TA +125C Group A Device Limits Unit V subgroups type S = 5 V unless otherwise specified Min Max Application resistors RA From nominal of 100 , 4 01,02 -5 +5 TA = +25C AC linearity 1/ LEac f = 1.0 MHz, TA = +25C, 4 01,02 -1.0 +1.0 dB -40 dBm to –2.0 dBm f = 1.0 MHz, TA = +25C, -0.5 +0.5 -35 dBm to –10 dBm f = 1.0 MHz, TA = +25C, -1.5 +1.5 -75 dBm to 0 dBm, cascaded operation f = 1.0 MHz, TA = +25C, -1.0 +1.0 -70 dBm to –10 dBm, cascaded operation AC slope current 1/ IYac From nominal of 1.00 mA, 4 01,02 -0.02 +0.02 mA f  1.0 MHz, TA = +25C From nominal of 0.94 mA, -0.03 +0.03 f = 30 MHz, TA = +25C From nominal of 0.90 mA, -0.04 +0.04 f = 60 MHz, TA = +25C AC intercept voltage 1/ VXac From nominal of –88.6 dBm, 4 01 -1.0 1.0 dBm f  1.0 MHz, TA = +25C 02 -1.4 1.0 Supply current +IS VIN = 0 V 1,2,3 01,02 -15 mA -IS +60 1/ If not tested, shall be guaranteed to the limits specified in table I herein.
STANDARD
SIZE
5962-90955 MICROCIRCUIT DRAWING A
DLA LAND AND MARITIME REVISION LEVEL SHEET COLUMBUS, OHIO 43218-3990 D 6 DSCC FORM 2234 APR 97
