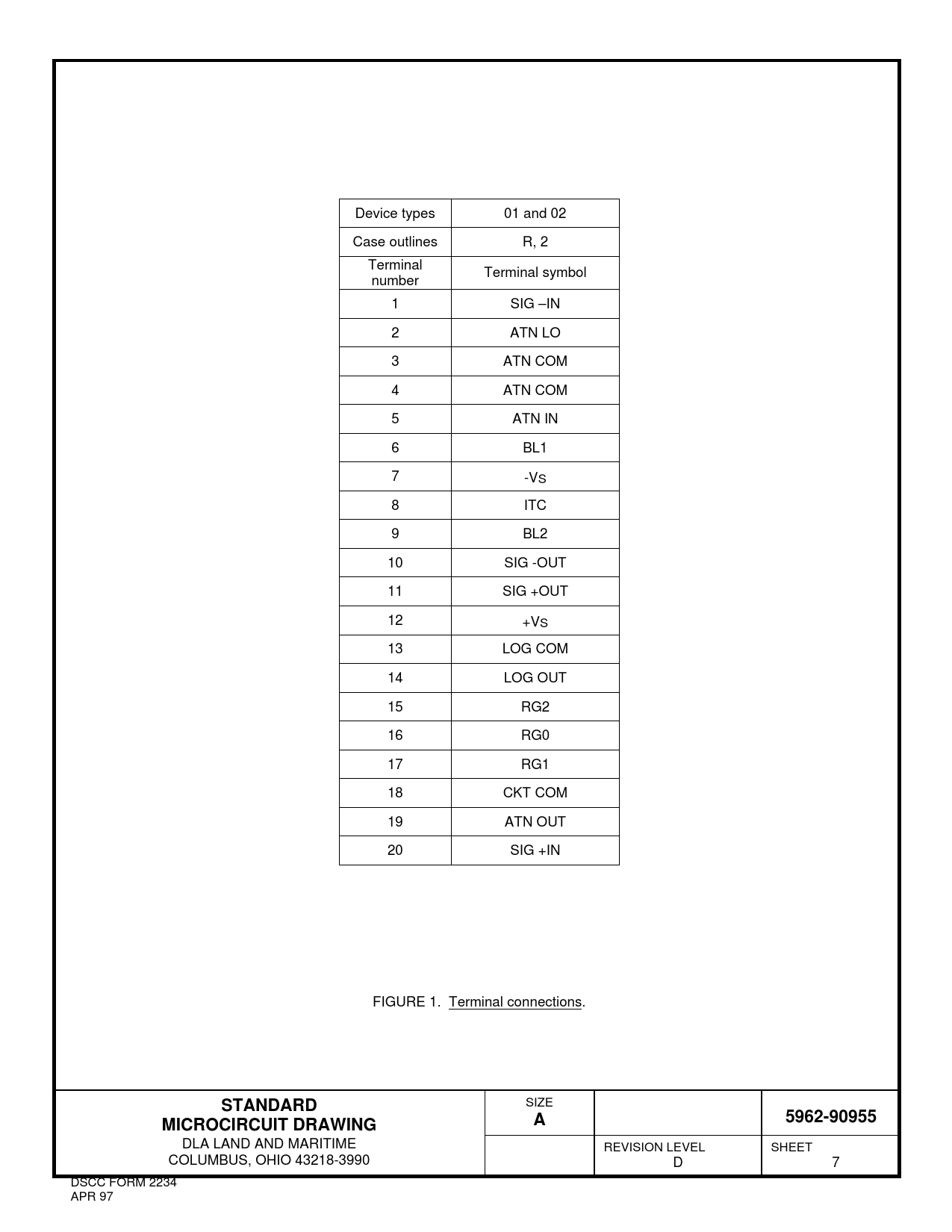

Device types 01 and 02 Case outlines R, 2 Terminal Terminal symbol number 1 SIG –IN 2 ATN LO 3 ATN COM 4 ATN COM 5 ATN IN 6 BL1 7 -VS 8 ITC 9 BL2 10 SIG -OUT 11 SIG +OUT 12 +VS 13 LOG COM 14 LOG OUT 15 RG2 16 RG0 17 RG1 18 CKT COM 19 ATN OUT 20 SIG +IN FIGURE 1. Terminal connections.
STANDARD
SIZE
5962-90955 MICROCIRCUIT DRAWING A
DLA LAND AND MARITIME REVISION LEVEL SHEET COLUMBUS, OHIO 43218-3990 D 7 DSCC FORM 2234 APR 97
