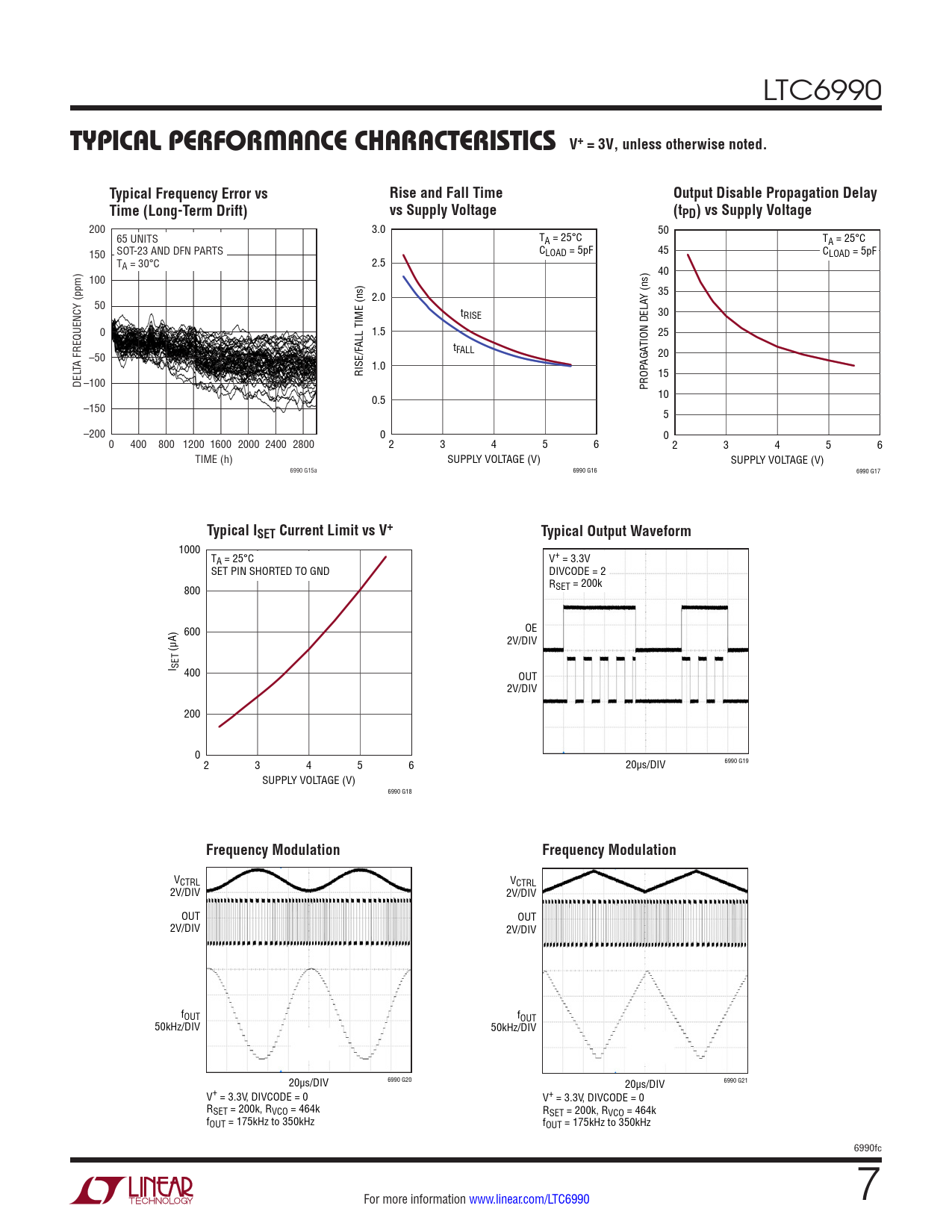

TYPICAL PERFORMANCE CHARACTERISTICS V+ = 3V, unless otherwise noted. Typical Frequency Error vs. Rise and Fall Time
