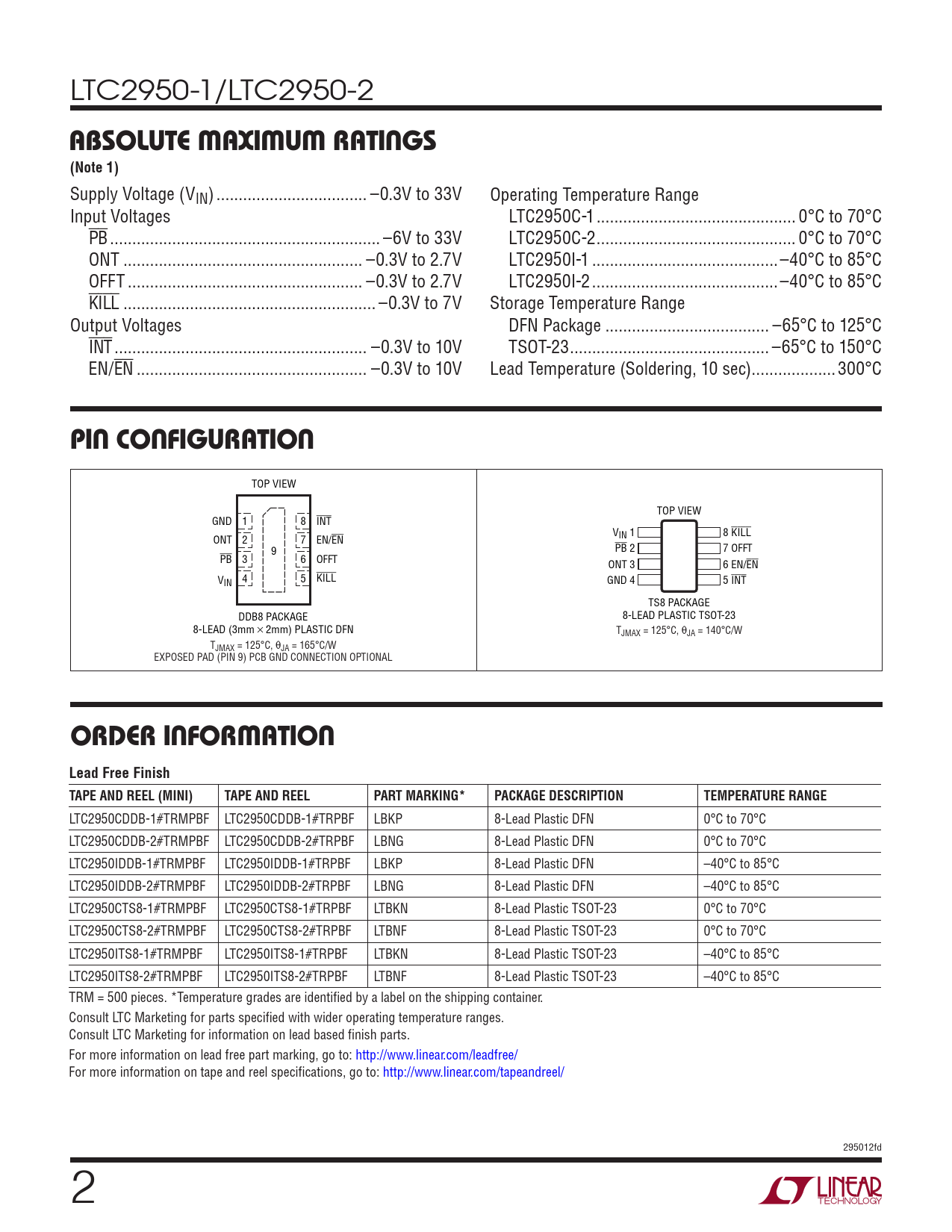

LTC2950-1/LTC2950-2
absoluTe MaxiMuM raTings (Note 1)
Supply Voltage (VIN) .. –0.3V to 33V Operating Temperature Range Input Voltages LTC2950C-1 ... 0°C to 70°C PB ... –6V to 33V LTC2950C-2 ... 0°C to 70°C ONT .. –0.3V to 2.7V LTC2950I-1 ..–40°C to 85°C OFFT ... –0.3V to 2.7V LTC2950I-2 ..–40°C to 85°C KILL ... –0.3V to 7V Storage Temperature Range Output Voltages DFN Package ... –65°C to 125°C INT ... –0.3V to 10V TSOT-23 ... –65°C to 150°C EN/EN .. –0.3V to 10V Lead Temperature (Soldering, 10 sec) ...300°C
pin conFiguraTion
TOP VIEW TOP VIEW GND 1 8 INT V 8 KILL ONT 2 7 EN/EN IN 1 9 PB 2 7 OFFT PB 3 6 OFFT ONT 3 6 EN/EN V 4 5 IN KILL GND 4 5 INT TS8 PACKAGE DDB8 PACKAGE 8-LEAD PLASTIC TSOT-23 8-LEAD (3mm × 2mm) PLASTIC DFN TJMAX = 125°C, θJA = 140°C/W TJMAX = 125°C, θJA = 165°C/W EXPOSED PAD (PIN 9) PCB GND CONNECTION OPTIONAL
orDer inForMaTion Lead Free Finish TAPE AND REEL (MINI) TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC2950CDDB-1#TRMPBF LTC2950CDDB-1#TRPBF LBKP 8-Lead Plastic DFN 0°C to 70°C LTC2950CDDB-2#TRMPBF LTC2950CDDB-2#TRPBF LBNG 8-Lead Plastic DFN 0°C to 70°C LTC2950IDDB-1#TRMPBF LTC2950IDDB-1#TRPBF LBKP 8-Lead Plastic DFN –40°C to 85°C LTC2950IDDB-2#TRMPBF LTC2950IDDB-2#TRPBF LBNG 8-Lead Plastic DFN –40°C to 85°C LTC2950CTS8-1#TRMPBF LTC2950CTS8-1#TRPBF LTBKN 8-Lead Plastic TSOT-23 0°C to 70°C LTC2950CTS8-2#TRMPBF LTC2950CTS8-2#TRPBF LTBNF 8-Lead Plastic TSOT-23 0°C to 70°C LTC2950ITS8-1#TRMPBF LTC2950ITS8-1#TRPBF LTBKN 8-Lead Plastic TSOT-23 –40°C to 85°C LTC2950ITS8-2#TRMPBF LTC2950ITS8-2#TRPBF LTBNF 8-Lead Plastic TSOT-23 –40°C to 85°C TRM = 500 pieces. *Temperature grades are identified by a label on the shipping container. Consult LTC Marketing for parts specified with wider operating temperature ranges. Consult LTC Marketing for information on lead based finish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/ 295012fd 2 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Timing Diagrams Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
