Datasheet ADA4800-KGD (Analog Devices) - 4
| 制造商 | Analog Devices |
| 描述 | Low Power, High Speed CCD Buffer Amplifier |
| 页数 / 页 | 7 / 4 — ADA4800-KGD. Known Good Die. ABSOLUTE MAXIMUM RATINGS. Table 3. Parameter … |
| 文件格式/大小 | PDF / 206 Kb |
| 文件语言 | 英语 |

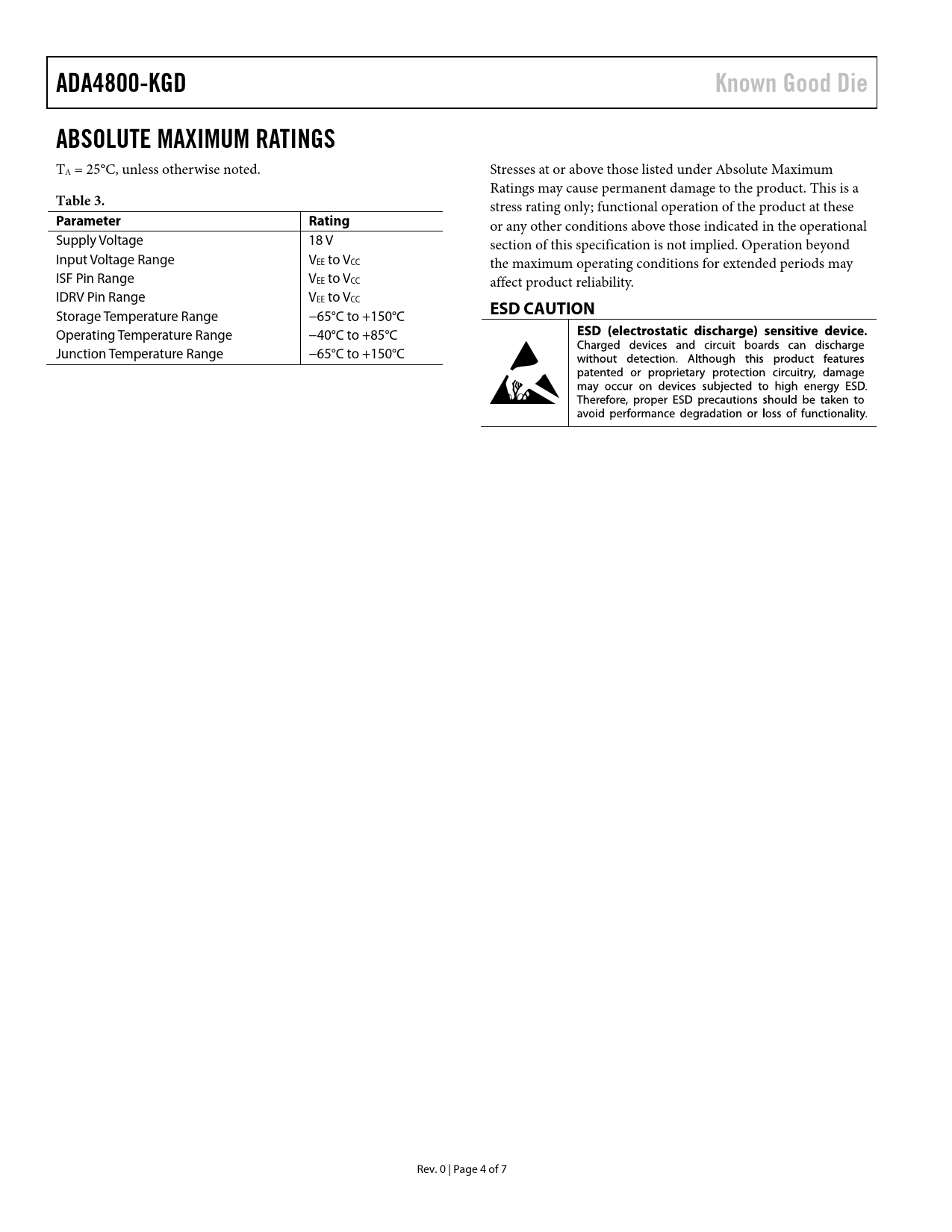

ADA4800-KGD. Known Good Die. ABSOLUTE MAXIMUM RATINGS. Table 3. Parameter Rating. ESD CAUTION
该数据表的模型线
文件文字版本
ADA4800-KGD Known Good Die ABSOLUTE MAXIMUM RATINGS
TA = 25°C, unless otherwise noted. Stresses at or above those listed under Absolute Maximum Ratings may cause permanent damage to the product. This is a
Table 3.
stress rating only; functional operation of the product at these
Parameter Rating
or any other conditions above those indicated in the operational Supply Voltage 18 V section of this specification is not implied. Operation beyond Input Voltage Range VEE to VCC the maximum operating conditions for extended periods may ISF Pin Range VEE to VCC affect product reliability. IDRV Pin Range VEE to VCC
ESD CAUTION
Storage Temperature Range −65°C to +150°C Operating Temperature Range −40°C to +85°C Junction Temperature Range −65°C to +150°C Rev. 0 | Page 4 of 7 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS BUFFER ELECTRICAL CHARACTERISTICS ACTIVE CURRENT LOAD ELECTRICAL CHARACTERISTICS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TEST CIRCUIT OUTLINE DIMENSIONS DIE SPECIFICATIONS AND ASSEMBLY RECOMMENDATIONS ORDERING GUIDE
