Datasheet ADA4800-KGD (Analog Devices) - 5
| 制造商 | Analog Devices |
| 描述 | Low Power, High Speed CCD Buffer Amplifier |
| 页数 / 页 | 7 / 5 — Known Good Die. ADA4800-KGD. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. … |
| 文件格式/大小 | PDF / 206 Kb |
| 文件语言 | 英语 |

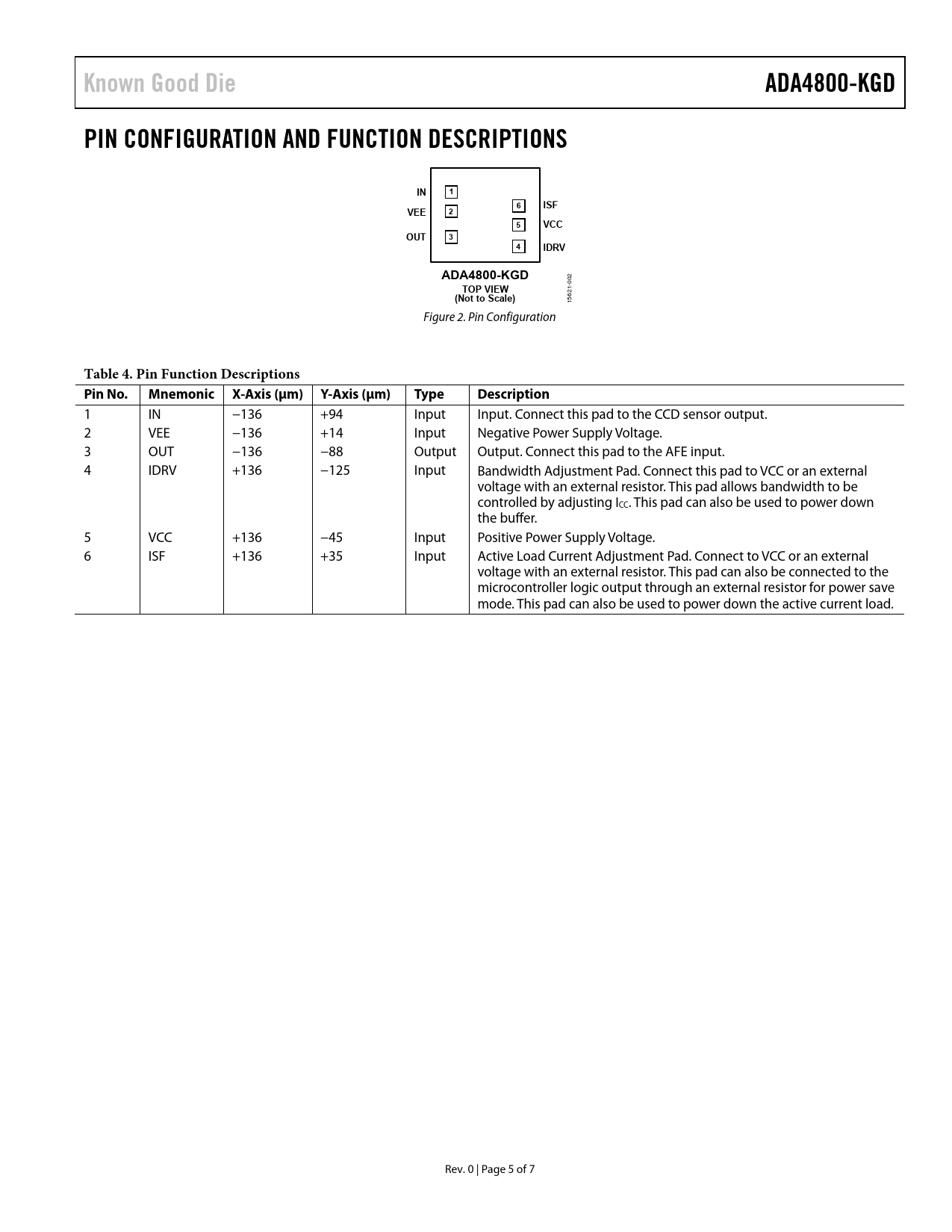

Known Good Die. ADA4800-KGD. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. ISF. VEE. VCC. OUT. IDRV. TOP VIEW. (Not to Scale)
该数据表的模型线
文件文字版本
Known Good Die ADA4800-KGD PIN CONFIGURATION AND FUNCTION DESCRIPTIONS IN 1 6 ISF VEE 2 5 VCC OUT 3 4 IDRV ADA4800-KGD
02 -0
TOP VIEW (Not to Scale)
15621 Figure 2. Pin Configuration
Table 4. Pin Function Descriptions Pin No. Mnemonic X-Axis (μm) Y-Axis (μm) Type Description
1 IN −136 +94 Input Input. Connect this pad to the CCD sensor output. 2 VEE −136 +14 Input Negative Power Supply Voltage. 3 OUT −136 −88 Output Output. Connect this pad to the AFE input. 4 IDRV +136 −125 Input Bandwidth Adjustment Pad. Connect this pad to VCC or an external voltage with an external resistor. This pad allows bandwidth to be controlled by adjusting ICC. This pad can also be used to power down the buffer. 5 VCC +136 −45 Input Positive Power Supply Voltage. 6 ISF +136 +35 Input Active Load Current Adjustment Pad. Connect to VCC or an external voltage with an external resistor. This pad can also be connected to the microcontroller logic output through an external resistor for power save mode. This pad can also be used to power down the active current load. Rev. 0 | Page 5 of 7 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS BUFFER ELECTRICAL CHARACTERISTICS ACTIVE CURRENT LOAD ELECTRICAL CHARACTERISTICS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TEST CIRCUIT OUTLINE DIMENSIONS DIE SPECIFICATIONS AND ASSEMBLY RECOMMENDATIONS ORDERING GUIDE
